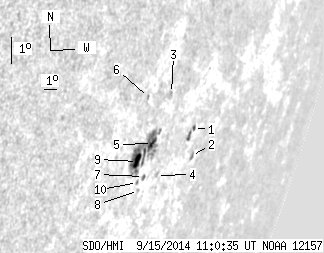

SDO HMI 2014-09-15 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.02 | 73.94 | 14.04 | 95.17 | -14.82 | 94.11 | 64.23 | 250.61 | 0.9244 | -349.2 | -237.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 5.24 | 1.04 | 7.60 | -14.37 | 97.13 | 67.25 | 251.84 | 0.9417 | 320.4 | 314.6 | |
| 0.00 | 3.11 | 0.00 | 4.68 | -15.31 | 97.57 | 67.70 | 250.97 | 0.9454 | 154.0 | 70.2 | |
| 0.00 | 1.60 | 0.00 | 2.07 | -13.00 | 94.67 | 64.80 | 252.67 | 0.9252 | 520.0 | 379.3 | |
| 0.00 | 1.78 | 0.00 | 2.39 | -15.65 | 95.02 | 65.14 | 249.98 | 0.9315 | 263.0 | 128.4 | |
| 3.47 | 56.00 | 4.44 | 70.52 | -14.52 | 94.07 | 64.20 | 250.92 | 0.9238 | -468.1 | -381.6 | |
| 0.00 | 1.42 | 0.00 | 1.72 | -12.93 | 93.00 | 63.12 | 252.32 | 0.9142 | -424.0 | -275.2 | |
| 0.53 | 2.22 | 0.69 | 2.88 | -15.56 | 94.01 | 64.13 | 249.81 | 0.9252 | -248.3 | -125.3 | |
| 0.00 | 1.24 | 0.00 | 1.61 | -16.00 | 93.90 | 64.03 | 249.32 | 0.9253 | 574.0 | 363.6 | |
| 6.31 | -5.00 | 7.87 | -5.00 | -15.00 | 93.26 | 63.38 | 250.20 | 0.9195 | -749.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.70 | -15.72 | 93.66 | 63.79 | 249.55 | 0.9233 | -269.0 | -234.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
