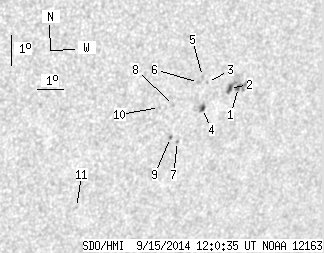

SDO HMI 2014-09-15 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.42 | 28.18 | 3.65 | 18.87 | -15.49 | 65.27 | 35.95 | 237.32 | 0.6744 | 137.6 | 374.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 14.04 | 0.78 | 9.49 | -15.20 | 66.33 | 37.01 | 238.46 | 0.6839 | 808.4 | 625.0 | |
| 2.22 | -1.00 | 1.50 | -1.00 | -15.20 | 65.98 | 36.66 | 238.22 | 0.6801 | 815.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -14.93 | 65.08 | 35.75 | 237.92 | 0.6685 | 622.0 | 448.3 | |
| 1.60 | 4.53 | 1.07 | 3.03 | -15.78 | 65.05 | 35.72 | 236.81 | 0.6737 | 777.0 | 657.3 | |
| 0.00 | 1.42 | 0.00 | 0.94 | -14.72 | 64.84 | 35.52 | 238.03 | 0.6646 | 610.0 | 530.3 | |
| 0.00 | 1.78 | 0.00 | 1.18 | -14.91 | 64.72 | 35.40 | 237.71 | 0.6645 | 748.0 | 589.9 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -16.80 | 64.30 | 34.97 | 234.95 | 0.6725 | -493.0 | -400.6 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -15.59 | 63.90 | 34.57 | 236.20 | 0.6600 | -641.0 | -513.7 | |
| 0.44 | 1.60 | 0.30 | 1.06 | -16.64 | 63.99 | 34.67 | 234.92 | 0.6683 | -636.4 | -554.9 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -15.62 | 63.37 | 34.05 | 235.76 | 0.6545 | -635.0 | -512.8 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -18.73 | 60.87 | 31.54 | 229.74 | 0.6515 | -466.0 | -398.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
