SDO HMI 2014-09-15 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.88 | 152.47 | 15.00 | 92.99 | 12.26 | 353.63 | -35.69 | 78.92 | 0.5821 | -441.9 | -323.6 | |
|
previous
or next observation for the same group /

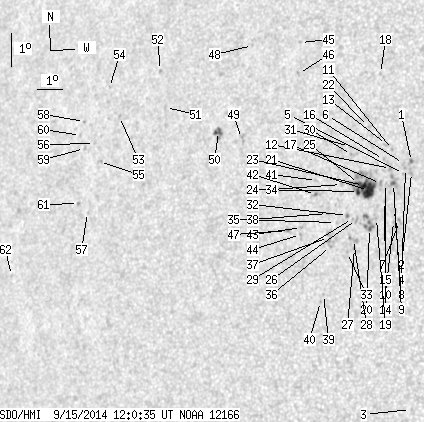

back to the solar disc SDO HMI 2014-09-15 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.49 | 0.00 | 1.46 | 13.21 | 356.79 | -32.54 | 76.67 | 0.5402 | -789.0 | -684.5 | |
| 0.00 | 3.38 | 0.00 | 1.98 | 12.88 | 356.84 | -32.49 | 77.28 | 0.5389 | -932.0 | -730.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 5.75 | 357.53 | -31.80 | 90.71 | 0.5264 | -547.0 | -529.9 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 12.99 | 356.60 | -32.73 | 77.13 | 0.5425 | -801.0 | -672.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 12.83 | 356.55 | -32.78 | 77.43 | 0.5429 | -805.0 | -694.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 13.13 | 356.50 | -32.82 | 76.88 | 0.5441 | -454.0 | -425.4 | |
| 0.00 | 2.40 | 0.00 | 1.41 | 11.37 | 356.60 | -32.72 | 80.10 | 0.5401 | -831.0 | -700.6 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 11.72 | 356.37 | -32.95 | 79.49 | 0.5438 | -851.0 | -689.8 | |
| 0.71 | 7.02 | 0.42 | 4.15 | 12.50 | 356.23 | -33.10 | 78.09 | 0.5470 | -953.8 | -782.5 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 11.36 | 356.38 | -32.94 | 80.16 | 0.5432 | -702.0 | -577.3 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 13.53 | 356.04 | -33.29 | 76.27 | 0.5515 | -718.0 | -646.5 | |
| 0.00 | 2.22 | 0.00 | 1.32 | 12.95 | 356.05 | -33.27 | 77.31 | 0.5502 | -783.0 | -619.8 | |
| 0.00 | 1.96 | 0.00 | 1.16 | 13.66 | 355.79 | -33.53 | 76.08 | 0.5552 | -664.0 | -546.7 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 12.49 | 355.93 | -33.39 | 78.18 | 0.5511 | -830.0 | -752.2 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 11.94 | 355.97 | -33.35 | 79.16 | 0.5498 | -854.0 | -710.6 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 13.20 | 355.75 | -33.57 | 76.92 | 0.5549 | -617.0 | -504.2 | |
| 0.00 | 2.22 | 0.00 | 1.32 | 12.47 | 355.75 | -33.58 | 78.23 | 0.5537 | -823.0 | -669.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 15.80 | 355.19 | -34.13 | 72.49 | 0.5683 | -683.0 | -548.4 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 11.41 | 355.75 | -33.58 | 80.16 | 0.5523 | -780.0 | -689.6 | |
| 0.71 | 11.91 | 0.42 | 7.09 | 11.09 | 355.53 | -33.79 | 80.76 | 0.5551 | -866.9 | -754.9 | |
| 12.00 | 47.19 | 7.16 | 28.22 | 12.23 | 355.34 | -33.99 | 78.74 | 0.5592 | -923.0 | -222.9 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 14.16 | 355.03 | -34.29 | 75.38 | 0.5667 | -613.0 | -435.8 | |
| 4.44 | -21.00 | 2.66 | -21.00 | 12.37 | 355.13 | -34.19 | 78.53 | 0.5623 | -759.4 | 999999 | |
| 2.22 | -21.00 | 1.33 | -21.00 | 12.18 | 354.97 | -34.35 | 78.89 | 0.5643 | -651.6 | 999999 | |
| 1.87 | -21.00 | 1.12 | -21.00 | 12.42 | 354.94 | -34.39 | 78.47 | 0.5651 | -534.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.33 | 11.33 | 355.02 | -34.31 | 80.39 | 0.5627 | -767.0 | -592.3 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 10.45 | 355.06 | -34.27 | 81.95 | 0.5614 | -635.0 | -532.1 | |
| 0.00 | 4.62 | 0.00 | 2.76 | 10.72 | 354.99 | -34.34 | 81.48 | 0.5626 | -667.0 | -678.1 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 11.35 | 354.87 | -34.46 | 80.38 | 0.5648 | -674.0 | -605.3 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 13.27 | 354.54 | -34.79 | 77.04 | 0.5719 | -619.0 | -424.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 13.51 | 354.43 | -34.90 | 76.65 | 0.5739 | -543.0 | -393.9 | |
| 0.00 | 1.60 | 0.00 | 0.96 | 11.43 | 354.67 | -34.66 | 80.26 | 0.5677 | -764.0 | -674.9 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 10.31 | 354.81 | -34.51 | 82.22 | 0.5648 | -650.0 | -572.0 | |
| 0.00 | 1.69 | 0.00 | 1.02 | 12.34 | 354.31 | -35.02 | 78.70 | 0.5738 | -446.0 | -275.2 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 11.19 | 354.25 | -35.07 | 80.73 | 0.5734 | -475.0 | -479.5 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 10.45 | 354.16 | -35.16 | 82.02 | 0.5741 | -629.0 | -547.3 | |
| 0.00 | 4.62 | 0.00 | 2.79 | 10.72 | 354.05 | -35.27 | 81.57 | 0.5758 | -525.0 | -564.1 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 11.43 | 353.91 | -35.41 | 80.34 | 0.5783 | -589.0 | -439.5 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 8.99 | 354.07 | -35.25 | 84.58 | 0.5748 | -505.0 | -406.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 8.77 | 353.98 | -35.34 | 84.96 | 0.5761 | -618.0 | -501.3 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 12.40 | 353.35 | -35.97 | 78.75 | 0.5872 | 102.0 | 112.1 | |
| 0.00 | 2.04 | 0.00 | 1.25 | 11.97 | 353.38 | -35.95 | 79.47 | 0.5863 | -551.0 | -370.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 10.94 | 353.00 | -36.33 | 81.26 | 0.5907 | -605.0 | -525.4 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 10.73 | 352.99 | -36.34 | 81.63 | 0.5907 | -543.0 | -490.5 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 16.52 | 351.94 | -37.39 | 72.21 | 0.6136 | -491.0 | -405.6 | |
| 0.00 | 1.60 | 0.00 | 1.00 | 15.58 | 352.07 | -37.26 | 73.71 | 0.6098 | -537.0 | -463.6 | |
| 0.00 | 1.60 | 0.00 | 0.99 | 10.82 | 352.51 | -36.81 | 81.51 | 0.5973 | -672.0 | -569.8 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 16.29 | 350.07 | -39.26 | 73.04 | 0.6373 | -521.0 | -454.8 | |
| 0.00 | 2.76 | 0.00 | 1.75 | 13.45 | 350.23 | -39.09 | 77.47 | 0.6305 | 712.0 | 653.3 | |
| 2.93 | 7.91 | 1.89 | 5.10 | 13.59 | 349.28 | -40.05 | 77.38 | 0.6432 | 754.1 | 613.6 | |
| 0.00 | 1.78 | 0.00 | 1.19 | 14.14 | 346.96 | -42.36 | 76.85 | 0.6733 | 517.0 | 413.8 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 15.24 | 346.49 | -42.84 | 75.29 | 0.6805 | 611.0 | 527.4 | |
| 0.00 | 1.24 | 0.00 | 0.86 | 13.71 | 345.09 | -44.23 | 77.68 | 0.6960 | 704.0 | 575.4 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 14.54 | 344.45 | -44.87 | 76.55 | 0.7045 | 653.0 | 488.6 | |
| 0.00 | 2.22 | 0.00 | 1.54 | 12.28 | 344.55 | -44.78 | 79.76 | 0.7017 | 662.0 | 567.0 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 12.81 | 344.21 | -45.11 | 79.04 | 0.7060 | 654.0 | 492.7 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 10.71 | 344.34 | -44.99 | 82.01 | 0.7037 | 454.0 | 409.5 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 13.43 | 343.62 | -45.70 | 78.20 | 0.7135 | 455.0 | 386.5 | |
| 0.00 | 1.60 | 0.00 | 1.12 | 12.62 | 343.81 | -45.51 | 79.33 | 0.7107 | 484.0 | 383.6 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 12.99 | 343.55 | -45.78 | 78.82 | 0.7141 | 467.0 | 384.7 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 10.95 | 343.90 | -45.43 | 81.69 | 0.7091 | 591.0 | 513.8 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 8.53 | 341.33 | -47.99 | 85.00 | 0.7399 | -526.0 | -433.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
