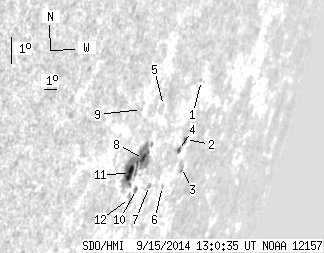

SDO HMI 2014-09-15 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.33 | 77.50 | 18.06 | 104.98 | -14.92 | 94.20 | 65.43 | 250.81 | 0.9318 | -281.3 | -208.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.95 | -12.52 | 97.49 | 68.72 | 254.08 | 0.9473 | -231.0 | -206.4 | |
| 1.07 | 2.58 | 1.64 | 3.96 | -14.36 | 97.25 | 68.47 | 252.13 | 0.9483 | 333.2 | 265.8 | |
| 0.00 | 4.35 | 0.00 | 6.87 | -15.29 | 97.53 | 68.76 | 251.24 | 0.9509 | 72.0 | 38.3 | |
| 1.60 | 3.38 | 2.43 | 5.12 | -14.67 | 96.85 | 68.07 | 251.72 | 0.9465 | 268.4 | 243.5 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -12.98 | 94.66 | 65.88 | 252.96 | 0.9318 | 300.0 | 331.0 | |
| 0.00 | 1.16 | 0.00 | 1.72 | -15.74 | 96.23 | 67.46 | 250.47 | 0.9447 | 182.0 | 104.8 | |
| 0.00 | 1.87 | 0.00 | 2.64 | -15.57 | 95.07 | 66.30 | 250.36 | 0.9380 | 333.0 | 268.4 | |
| 2.84 | 56.78 | 3.80 | 74.70 | -14.58 | 94.01 | 65.24 | 251.12 | 0.9303 | -427.3 | -325.8 | |
| 0.00 | 0.62 | 0.00 | 0.78 | -12.91 | 92.99 | 64.21 | 252.62 | 0.9213 | -225.0 | -235.3 | |
| 0.44 | 2.49 | 0.60 | 3.36 | -15.58 | 94.07 | 65.30 | 250.09 | 0.9323 | -171.8 | -95.3 | |
| 7.38 | -8.00 | 9.59 | -8.00 | -14.98 | 93.27 | 64.49 | 250.52 | 0.9265 | -709.6 | 999999 | |
| 0.00 | 3.38 | 0.00 | 4.52 | -15.83 | 93.70 | 64.92 | 249.74 | 0.9304 | -147.0 | -5.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
