SDO HMI 2014-09-15 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.12 | 26.82 | 2.14 | 18.23 | -15.63 | 64.74 | 37.07 | 237.90 | 0.6874 | 60.8 | 268.2 | |
|
previous
or next observation for the same group /

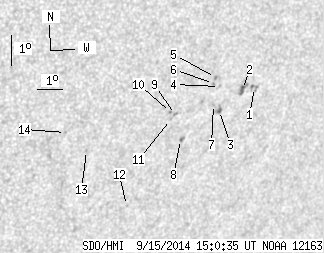

back to the solar disc SDO HMI 2014-09-15 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.91 | 0.00 | 2.71 | -15.15 | 66.49 | 38.81 | 239.71 | 0.7030 | 542.0 | 580.5 | |
| 1.78 | 5.86 | 1.23 | 4.04 | -15.17 | 66.01 | 38.34 | 239.37 | 0.6980 | 785.0 | 680.2 | |
| 0.98 | 4.26 | 0.67 | 2.92 | -15.79 | 65.23 | 37.56 | 238.07 | 0.6934 | 770.6 | 676.9 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -15.00 | 65.06 | 37.39 | 238.97 | 0.6868 | 434.0 | 376.7 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -14.69 | 64.84 | 37.17 | 239.22 | 0.6825 | 621.0 | 589.0 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -14.88 | 64.80 | 37.13 | 238.95 | 0.6833 | 670.0 | 675.0 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -15.57 | 64.95 | 37.27 | 238.16 | 0.6890 | 634.0 | 579.9 | |
| 0.36 | 2.13 | 0.24 | 1.45 | -16.63 | 63.88 | 36.20 | 236.07 | 0.6844 | -599.8 | -521.6 | |
| 0.00 | 1.51 | 0.00 | 1.01 | -15.78 | 63.50 | 35.83 | 236.88 | 0.6749 | -698.0 | -588.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -15.70 | 63.29 | 35.62 | 236.83 | 0.6721 | -741.0 | -610.3 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -15.93 | 63.34 | 35.67 | 236.57 | 0.6742 | -562.0 | -481.5 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -18.68 | 62.24 | 34.57 | 232.30 | 0.6816 | 483.0 | 428.1 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -16.72 | 60.30 | 32.63 | 233.19 | 0.6472 | -608.0 | -512.4 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -16.07 | 59.40 | 31.73 | 233.28 | 0.6326 | -653.0 | -527.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
