SDO HMI 2014-09-15 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.29 | 173.07 | 13.71 | 103.30 | 12.19 | 353.33 | -33.79 | 78.75 | 0.5551 | -419.3 | -351.8 | |
|
previous
or next observation for the same group /

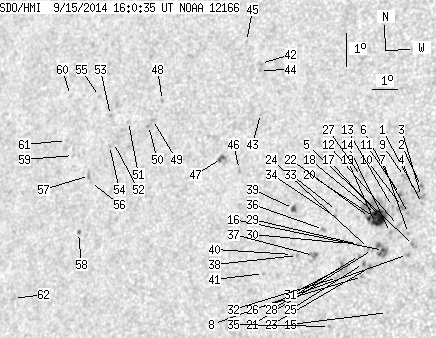

back to the solar disc SDO HMI 2014-09-15 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.71 | 12.74 | 356.88 | -30.25 | 77.02 | 0.5062 | -755.0 | -667.0 | |
| 0.00 | 2.13 | 0.00 | 1.22 | 13.25 | 356.77 | -30.35 | 76.04 | 0.5088 | -828.0 | -718.2 | |
| 0.00 | 2.75 | 0.00 | 1.58 | 12.95 | 356.81 | -30.31 | 76.62 | 0.5076 | -931.0 | -813.9 | |
| 0.00 | 2.84 | 0.00 | 1.64 | 13.08 | 356.54 | -30.58 | 76.43 | 0.5118 | -548.0 | -646.5 | |
| 0.00 | 2.93 | 0.00 | 1.68 | 11.45 | 356.71 | -30.41 | 79.58 | 0.5064 | -926.0 | -806.8 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 12.41 | 356.42 | -30.71 | 77.78 | 0.5123 | -848.0 | -784.4 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 11.80 | 356.49 | -30.63 | 78.94 | 0.5102 | -872.0 | -706.7 | |
| 0.00 | 1.69 | 0.00 | 0.97 | 11.17 | 356.53 | -30.59 | 80.17 | 0.5087 | -773.0 | -774.7 | |
| 0.00 | 2.93 | 0.00 | 1.70 | 13.51 | 356.12 | -31.00 | 75.71 | 0.5188 | -632.0 | -595.9 | |
| 0.00 | 8.44 | 0.00 | 4.87 | 12.60 | 356.17 | -30.95 | 77.45 | 0.5162 | -914.0 | -819.1 | |
| 0.00 | 1.78 | 0.00 | 1.03 | 12.96 | 356.05 | -31.07 | 76.79 | 0.5186 | -880.0 | -745.3 | |
| 0.00 | 2.22 | 0.00 | 1.28 | 12.02 | 356.11 | -31.02 | 78.59 | 0.5162 | -745.0 | -608.6 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 12.58 | 355.82 | -31.31 | 77.57 | 0.5214 | -837.0 | -690.9 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 11.79 | 355.85 | -31.28 | 79.08 | 0.5196 | -868.0 | -779.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 9.38 | 356.01 | -31.11 | 83.74 | 0.5149 | -693.0 | -497.9 | |
| 0.89 | 11.19 | 0.52 | 6.49 | 11.24 | 355.66 | -31.46 | 80.18 | 0.5216 | -1027.2 | -838.1 | |
| 8.62 | 49.92 | 5.01 | 29.11 | 12.23 | 355.47 | -31.66 | 78.33 | 0.5258 | -1055.5 | -212.3 | |
| 3.02 | -17.00 | 1.76 | -17.00 | 12.33 | 355.23 | -31.89 | 78.17 | 0.5294 | -858.7 | 999999 | |
| 3.11 | -17.00 | 1.81 | -17.00 | 12.03 | 355.27 | -31.85 | 78.73 | 0.5283 | -883.0 | 999999 | |
| 1.60 | -17.00 | 0.93 | -17.00 | 12.21 | 355.21 | -31.91 | 78.41 | 0.5295 | -941.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 11.24 | 355.26 | -31.86 | 80.23 | 0.5274 | -863.0 | -642.7 | |
| 1.87 | -17.00 | 1.09 | -17.00 | 12.20 | 355.03 | -32.09 | 78.47 | 0.5320 | -738.5 | 999999 | |
| 0.00 | 3.73 | 0.00 | 2.17 | 10.69 | 355.22 | -31.90 | 81.28 | 0.5274 | -818.0 | -731.2 | |
| 0.00 | 1.42 | 0.00 | 0.83 | 11.26 | 355.12 | -32.01 | 80.21 | 0.5295 | -818.0 | -665.6 | |
| 0.36 | 1.60 | 0.21 | 0.93 | 10.80 | 354.99 | -32.13 | 81.10 | 0.5309 | -770.0 | -689.2 | |
| 0.00 | 1.95 | 0.00 | 1.14 | 10.41 | 355.00 | -32.12 | 81.85 | 0.5304 | -746.0 | -590.8 | |
| 0.00 | 2.22 | 0.00 | 1.31 | 13.42 | 354.57 | -32.56 | 76.31 | 0.5409 | -495.0 | -431.5 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 11.03 | 354.82 | -32.30 | 80.69 | 0.5336 | -824.0 | -651.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 11.36 | 354.74 | -32.38 | 80.09 | 0.5351 | -913.0 | -754.6 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 11.37 | 354.37 | -32.75 | 80.13 | 0.5404 | -608.0 | -477.8 | |
| 0.00 | 10.04 | 0.00 | 5.90 | 10.66 | 354.28 | -32.84 | 81.44 | 0.5411 | -497.0 | -629.6 | |
| 0.00 | 2.40 | 0.00 | 1.41 | 10.32 | 354.10 | -33.02 | 82.10 | 0.5434 | -603.0 | -444.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 12.33 | 353.80 | -33.32 | 78.45 | 0.5499 | -547.0 | -439.0 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 12.15 | 353.76 | -33.37 | 78.79 | 0.5503 | -608.0 | -457.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 8.83 | 353.97 | -33.15 | 84.86 | 0.5447 | -728.0 | -548.3 | |
| 0.00 | 2.31 | 0.00 | 1.37 | 11.73 | 353.41 | -33.72 | 79.61 | 0.5547 | -627.0 | -452.6 | |
| 0.00 | 5.86 | 0.00 | 3.49 | 10.92 | 353.14 | -33.98 | 81.09 | 0.5576 | -721.0 | -624.3 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 10.88 | 352.55 | -34.57 | 81.22 | 0.5660 | -715.0 | -657.9 | |
| 1.51 | 2.84 | 0.91 | 1.71 | 12.28 | 352.20 | -34.92 | 78.80 | 0.5723 | 883.6 | 773.1 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 10.90 | 352.36 | -34.76 | 81.21 | 0.5687 | -630.0 | -523.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 10.25 | 351.36 | -35.77 | 82.42 | 0.5824 | -652.0 | -581.1 | |
| 0.00 | 1.51 | 0.00 | 0.94 | 16.57 | 350.14 | -36.99 | 72.02 | 0.6085 | -587.0 | -529.2 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 15.06 | 350.46 | -36.67 | 74.42 | 0.6009 | -485.0 | -427.6 | |
| 0.00 | 1.33 | 0.00 | 0.83 | 16.36 | 350.14 | -36.98 | 72.37 | 0.6079 | -579.0 | -467.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 17.20 | 349.43 | -37.69 | 71.21 | 0.6192 | -573.0 | -430.6 | |
| 0.00 | 1.69 | 0.00 | 1.05 | 13.31 | 349.97 | -37.16 | 77.40 | 0.6045 | 630.0 | 595.6 | |
| 1.78 | 6.48 | 1.11 | 4.06 | 13.59 | 349.21 | -37.91 | 77.07 | 0.6150 | 778.0 | 668.7 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 15.16 | 346.50 | -40.62 | 75.05 | 0.6526 | 654.0 | 589.5 | |
| 0.00 | 1.60 | 0.00 | 1.05 | 14.56 | 346.23 | -40.89 | 76.02 | 0.6553 | 642.0 | 530.3 | |
| 0.00 | 1.42 | 0.00 | 0.93 | 14.36 | 346.11 | -41.01 | 76.33 | 0.6566 | 655.0 | 627.2 | |
| 0.00 | 1.60 | 0.00 | 1.06 | 14.42 | 345.26 | -41.86 | 76.37 | 0.6673 | 420.0 | 370.4 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 13.73 | 344.79 | -42.34 | 77.45 | 0.6726 | 644.0 | 587.4 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 14.54 | 344.47 | -42.65 | 76.30 | 0.6773 | 789.0 | 680.4 | |
| 0.00 | 1.24 | 0.00 | 0.83 | 13.63 | 344.64 | -42.48 | 77.62 | 0.6743 | 683.0 | 497.7 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 15.07 | 343.87 | -43.25 | 75.60 | 0.6854 | 531.0 | 405.7 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 12.46 | 344.09 | -43.03 | 79.41 | 0.6802 | 491.0 | 422.7 | |
| 0.00 | 2.66 | 0.00 | 1.80 | 12.66 | 344.00 | -43.12 | 79.11 | 0.6814 | 348.0 | 396.9 | |
| 0.53 | 1.51 | 0.36 | 1.02 | 10.91 | 343.88 | -43.25 | 81.69 | 0.6822 | 599.0 | 507.1 | |
| 0.00 | 1.51 | 0.00 | 1.03 | 13.21 | 343.20 | -43.92 | 78.38 | 0.6918 | 492.0 | 403.6 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 15.00 | 342.63 | -44.49 | 75.87 | 0.7004 | 540.0 | 474.7 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 13.63 | 342.80 | -44.32 | 77.80 | 0.6970 | 467.0 | 380.0 | |
| 0.00 | 2.31 | 0.00 | 1.62 | 8.70 | 341.45 | -45.67 | 84.86 | 0.7123 | -631.0 | -472.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
