SDO HMI 2014-09-15 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.95 | 331.11 | 72.21 | 337.55 | 15.60 | 88.34 | 61.77 | 283.89 | 0.8761 | 489.9 | 242.5 | |
|
previous
or next observation for the same group /

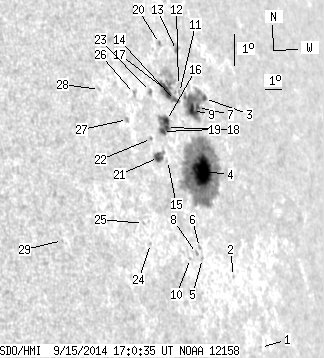

back to the solar disc SDO HMI 2014-09-15 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.29 | 9.27 | 90.24 | 63.67 | 276.77 | 0.8926 | -352.0 | -368.0 | |
| 0.00 | 0.27 | 0.00 | 0.28 | 11.55 | 89.23 | 62.66 | 279.29 | 0.8838 | -281.0 | -271.7 | |
| 1.78 | 44.94 | 1.91 | 47.12 | 16.99 | 89.97 | 63.40 | 285.44 | 0.8891 | 561.4 | 177.7 | |
| 36.68 | 197.07 | 37.75 | 202.38 | 14.86 | 88.64 | 62.07 | 283.04 | 0.8785 | 842.4 | 282.8 | |
| 0.00 | 1.15 | 0.00 | 1.15 | 12.30 | 87.49 | 60.92 | 280.08 | 0.8693 | -390.0 | -275.2 | |
| 0.00 | 1.15 | 0.00 | 1.15 | 12.64 | 87.44 | 60.86 | 280.48 | 0.8688 | -233.0 | -152.4 | |
| 1.60 | -3.00 | 1.68 | -3.00 | 16.77 | 89.35 | 62.78 | 285.21 | 0.8843 | -323.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.67 | 12.49 | 87.18 | 60.61 | 280.29 | 0.8666 | -415.0 | -370.6 | |
| 6.57 | -3.00 | 6.84 | -3.00 | 16.72 | 88.98 | 62.41 | 285.15 | 0.8813 | -319.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.04 | 12.38 | 86.76 | 60.19 | 280.16 | 0.8630 | -573.0 | -482.8 | |
| 0.00 | 2.13 | 0.00 | 2.18 | 17.34 | 88.46 | 61.88 | 285.87 | 0.8772 | 282.0 | 208.3 | |
| 0.00 | 2.58 | 0.00 | 2.65 | 17.55 | 88.51 | 61.94 | 286.11 | 0.8778 | -238.0 | -134.5 | |
| 0.98 | 3.91 | 1.02 | 4.08 | 18.60 | 89.03 | 62.46 | 287.29 | 0.8821 | -133.7 | -282.2 | |
| 1.95 | 34.55 | 1.98 | 34.79 | 17.13 | 88.07 | 61.49 | 285.64 | 0.8741 | 507.9 | 211.9 | |
| 0.00 | 0.44 | 0.00 | 0.43 | 15.42 | 86.64 | 60.07 | 283.69 | 0.8619 | 357.0 | 330.6 | |
| 3.55 | 17.50 | 3.50 | 17.15 | 16.60 | 87.18 | 60.61 | 285.06 | 0.8667 | 546.5 | 534.0 | |
| 7.90 | -14.00 | 7.91 | -14.00 | 17.49 | 87.67 | 61.10 | 286.06 | 0.8709 | 746.8 | 999999 | |
| 2.22 | -16.00 | 2.18 | -16.00 | 16.40 | 87.07 | 60.50 | 284.82 | 0.8657 | 548.0 | 999999 | |
| 2.66 | -16.00 | 2.60 | -16.00 | 16.31 | 86.77 | 60.20 | 284.72 | 0.8631 | 718.1 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.62 | 18.92 | 88.08 | 61.51 | 287.69 | 0.8746 | -534.0 | -437.7 | |
| 5.06 | 8.79 | 4.84 | 8.43 | 15.56 | 86.15 | 59.57 | 283.87 | 0.8577 | 702.4 | 452.7 | |
| 0.00 | 0.80 | 0.00 | 0.76 | 16.17 | 86.00 | 59.43 | 284.58 | 0.8566 | 515.0 | 458.0 | |
| 0.00 | 2.31 | 0.00 | 2.24 | 17.56 | 86.68 | 60.11 | 286.18 | 0.8627 | 513.0 | 357.9 | |
| 0.00 | 0.98 | 0.00 | 0.90 | 13.07 | 84.60 | 58.03 | 280.94 | 0.8437 | -499.0 | -416.3 | |
| 0.00 | 0.89 | 0.00 | 0.81 | 13.70 | 84.43 | 57.86 | 281.70 | 0.8422 | -434.0 | -439.6 | |
| 0.00 | 3.11 | 0.00 | 2.94 | 17.61 | 85.69 | 59.12 | 286.28 | 0.8543 | 529.0 | 429.4 | |
| 0.00 | 1.95 | 0.00 | 1.81 | 16.88 | 84.89 | 58.32 | 285.45 | 0.8469 | 634.0 | 545.9 | |
| 0.00 | 0.98 | 0.00 | 0.88 | 17.93 | 83.75 | 57.18 | 286.77 | 0.8371 | 534.0 | 475.7 | |
| 0.00 | 0.98 | 0.00 | 0.80 | 13.64 | 79.93 | 53.36 | 281.69 | 0.7985 | -520.0 | -434.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
