SDO HMI 2014-09-15 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.78 | 309.75 | 73.27 | 321.37 | 15.58 | 88.36 | 62.34 | 283.86 | 0.8807 | 507.3 | 243.1 | |
|
previous
or next observation for the same group /

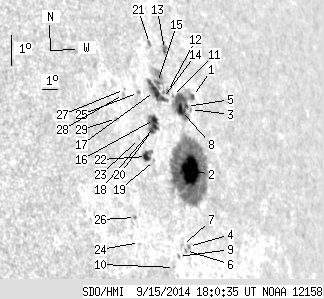

back to the solar disc SDO HMI 2014-09-15 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.60 | 36.85 | 1.75 | 39.34 | 17.02 | 90.01 | 63.99 | 285.47 | 0.8936 | 558.8 | 183.9 | |
| 35.79 | 187.47 | 37.45 | 195.84 | 14.86 | 88.63 | 62.61 | 283.04 | 0.8829 | 861.8 | 286.2 | |
| 0.00 | 1.07 | 0.00 | 1.15 | 16.65 | 89.64 | 63.62 | 285.06 | 0.8907 | -346.0 | -302.8 | |
| 0.00 | 1.33 | 0.00 | 1.35 | 12.64 | 87.46 | 61.44 | 280.49 | 0.8736 | -139.0 | -92.5 | |
| 1.15 | -1.00 | 1.24 | -1.00 | 16.77 | 89.43 | 63.41 | 285.20 | 0.8891 | -256.5 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.52 | 12.55 | 87.22 | 61.21 | 280.38 | 0.8716 | -400.0 | -323.5 | |
| 0.00 | 1.24 | 0.00 | 1.24 | 12.71 | 87.10 | 61.08 | 280.57 | 0.8706 | -316.0 | -214.1 | |
| 6.13 | -1.00 | 6.49 | -1.00 | 16.69 | 89.02 | 63.01 | 285.11 | 0.8860 | -398.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.49 | 12.42 | 86.72 | 60.71 | 280.21 | 0.8674 | -362.0 | -379.1 | |
| 0.00 | 0.62 | 0.00 | 0.61 | 12.12 | 86.35 | 60.34 | 279.86 | 0.8643 | -547.0 | -520.7 | |
| 0.00 | 1.07 | 0.00 | 1.12 | 17.19 | 88.70 | 62.68 | 285.69 | 0.8835 | 237.0 | 311.4 | |
| 0.00 | 2.13 | 0.00 | 2.22 | 17.35 | 88.45 | 62.43 | 285.86 | 0.8816 | 306.0 | 177.0 | |
| 1.69 | 4.88 | 1.79 | 5.19 | 18.60 | 89.04 | 63.02 | 287.27 | 0.8864 | -224.7 | -296.0 | |
| 2.49 | 34.63 | 2.56 | 35.47 | 17.18 | 88.00 | 61.99 | 285.68 | 0.8780 | 530.8 | 147.1 | |
| 1.33 | -14.00 | 1.37 | -14.00 | 17.68 | 87.97 | 61.95 | 286.26 | 0.8778 | 404.5 | 999999 | |
| 3.02 | 16.43 | 3.02 | 16.37 | 16.61 | 87.15 | 61.13 | 285.05 | 0.8710 | 530.4 | 522.8 | |
| 9.32 | -14.00 | 9.48 | -14.00 | 17.44 | 87.62 | 61.60 | 285.99 | 0.8750 | 708.0 | 999999 | |
| 2.22 | -16.00 | 2.22 | -16.00 | 16.41 | 87.04 | 61.02 | 284.82 | 0.8700 | 635.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.79 | 15.40 | 86.52 | 60.50 | 283.67 | 0.8656 | 437.0 | 355.7 | |
| 1.78 | -16.00 | 1.76 | -16.00 | 16.31 | 86.79 | 60.77 | 284.71 | 0.8680 | 696.0 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.65 | 18.88 | 88.18 | 62.16 | 287.62 | 0.8798 | -411.0 | -274.4 | |
| 4.26 | 8.97 | 4.14 | 8.73 | 15.57 | 86.10 | 60.08 | 283.87 | 0.8620 | 653.3 | 446.4 | |
| 0.00 | 0.89 | 0.00 | 0.86 | 16.15 | 85.94 | 59.92 | 284.55 | 0.8608 | 540.0 | 424.6 | |
| 0.00 | 0.71 | 0.00 | 0.66 | 13.08 | 84.58 | 58.56 | 280.95 | 0.8486 | -463.0 | -371.1 | |
| 0.00 | 1.42 | 0.00 | 1.40 | 17.51 | 86.61 | 60.59 | 286.11 | 0.8667 | 508.0 | 414.6 | |
| 0.00 | 1.33 | 0.00 | 1.24 | 13.84 | 84.64 | 58.62 | 281.86 | 0.8491 | -356.0 | -299.3 | |
| 0.00 | 0.27 | 0.00 | 0.26 | 17.69 | 85.81 | 59.79 | 286.35 | 0.8600 | 421.0 | 395.7 | |
| 0.00 | 1.42 | 0.00 | 1.37 | 17.55 | 85.67 | 59.65 | 286.19 | 0.8588 | 522.0 | 451.4 | |
| 0.00 | 1.60 | 0.00 | 1.50 | 16.89 | 84.88 | 58.86 | 285.44 | 0.8518 | 654.0 | 541.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
