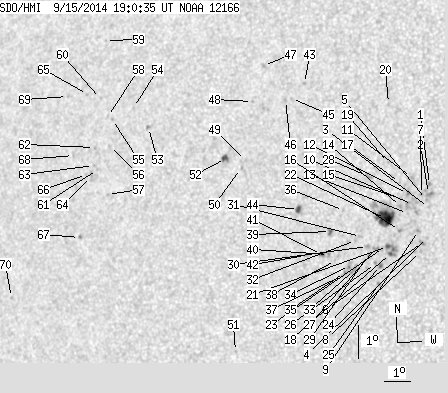

SDO HMI 2014-09-15 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.14 | 155.16 | 14.51 | 91.02 | 12.32 | 353.22 | -32.25 | 78.24 | 0.5333 | -393.4 | -400.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.29 | 356.79 | -28.68 | 75.46 | 0.4844 | -928.0 | -770.1 | |
| 0.00 | 4.44 | 0.00 | 2.51 | 13.02 | 356.79 | -28.68 | 76.02 | 0.4838 | -843.0 | -814.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.60 | 356.84 | -28.62 | 76.87 | 0.4820 | -725.0 | -564.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.69 | 356.91 | -28.55 | 78.73 | 0.4792 | -778.0 | -709.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 12.84 | 356.74 | -28.72 | 76.41 | 0.4840 | -887.0 | -709.3 | |
| 0.00 | 2.13 | 0.00 | 1.20 | 11.53 | 356.75 | -28.71 | 79.10 | 0.4813 | -1000.0 | -864.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 12.98 | 356.55 | -28.92 | 76.18 | 0.4872 | -907.0 | -771.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.26 | 356.71 | -28.75 | 79.68 | 0.4815 | -885.0 | -656.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 11.88 | 356.57 | -28.89 | 78.41 | 0.4846 | -936.0 | -840.9 | |
| 0.00 | 12.25 | 0.00 | 6.96 | 12.66 | 356.27 | -29.20 | 76.92 | 0.4906 | -934.0 | -791.9 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 13.47 | 356.13 | -29.34 | 75.32 | 0.4945 | -701.0 | -574.5 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 12.98 | 356.05 | -29.42 | 76.33 | 0.4945 | -915.0 | -828.9 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 12.37 | 356.13 | -29.34 | 77.52 | 0.4922 | -810.0 | -654.6 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 12.57 | 355.85 | -29.61 | 77.20 | 0.4966 | -859.0 | -719.5 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.81 | 355.82 | -29.64 | 76.72 | 0.4975 | -609.0 | -471.2 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 11.84 | 355.91 | -29.56 | 78.65 | 0.4945 | -952.0 | -735.9 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 13.29 | 355.72 | -29.74 | 75.79 | 0.5000 | -698.0 | -607.3 | |
| 0.62 | 11.72 | 0.35 | 6.68 | 11.13 | 355.67 | -29.80 | 80.13 | 0.4969 | -910.3 | -818.5 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 13.87 | 355.25 | -30.22 | 74.80 | 0.5083 | -690.0 | -612.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 15.66 | 354.98 | -30.49 | 71.47 | 0.5173 | -581.0 | -406.9 | |
| 1.07 | -18.00 | 0.61 | -18.00 | 11.34 | 355.54 | -29.93 | 79.74 | 0.4991 | -971.6 | 999999 | |
| 18.03 | 31.44 | 10.32 | 18.00 | 12.18 | 355.37 | -30.10 | 78.10 | 0.5030 | -985.7 | -394.8 | |
| 0.00 | 2.13 | 0.00 | 1.22 | 11.30 | 355.40 | -30.06 | 79.84 | 0.5011 | -512.0 | -588.8 | |
| 0.36 | 2.22 | 0.20 | 1.27 | 10.75 | 355.36 | -30.11 | 80.94 | 0.5011 | -921.8 | -815.0 | |
| 0.00 | 1.78 | 0.00 | 1.01 | 10.17 | 355.35 | -30.12 | 82.10 | 0.5007 | -730.0 | -722.2 | |
| 0.00 | 1.51 | 0.00 | 0.86 | 10.80 | 355.17 | -30.29 | 80.87 | 0.5039 | -838.0 | -740.9 | |
| 0.00 | 2.49 | 0.00 | 1.43 | 11.25 | 355.12 | -30.34 | 79.98 | 0.5052 | -773.0 | -737.1 | |
| 0.00 | 3.20 | 0.00 | 1.85 | 13.41 | 354.59 | -30.87 | 75.90 | 0.5167 | -668.0 | -515.0 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 11.06 | 354.89 | -30.57 | 80.41 | 0.5083 | -832.0 | -626.3 | |
| 0.00 | 2.04 | 0.00 | 1.17 | 11.29 | 354.83 | -30.63 | 79.95 | 0.5095 | -914.0 | -687.6 | |
| 0.00 | 1.60 | 0.00 | 0.92 | 11.58 | 354.55 | -30.92 | 79.44 | 0.5141 | -792.0 | -587.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 11.45 | 354.38 | -31.08 | 79.72 | 0.5163 | -689.0 | -515.4 | |
| 0.00 | 4.35 | 0.00 | 2.51 | 10.57 | 354.45 | -31.02 | 81.41 | 0.5143 | -824.0 | -720.4 | |
| 0.00 | 3.20 | 0.00 | 1.85 | 10.68 | 354.26 | -31.21 | 81.23 | 0.5173 | -713.0 | -670.6 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 10.46 | 354.10 | -31.36 | 81.67 | 0.5193 | -660.0 | -569.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 12.32 | 353.84 | -31.63 | 78.15 | 0.5255 | -540.0 | -406.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 10.37 | 354.04 | -31.42 | 81.86 | 0.5201 | -497.0 | -365.9 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 10.80 | 353.74 | -31.73 | 81.06 | 0.5250 | -441.0 | -383.5 | |
| 0.71 | 2.58 | 0.41 | 1.50 | 11.66 | 353.45 | -32.01 | 79.47 | 0.5301 | -682.1 | -479.9 | |
| 0.00 | 2.13 | 0.00 | 1.24 | 10.97 | 353.47 | -32.00 | 80.79 | 0.5291 | -910.0 | -681.3 | |
| 0.00 | 2.75 | 0.00 | 1.61 | 10.95 | 353.21 | -32.25 | 80.85 | 0.5328 | -723.0 | -619.1 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 10.88 | 352.64 | -32.83 | 81.05 | 0.5410 | -772.0 | -608.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 16.07 | 351.79 | -33.67 | 71.88 | 0.5628 | -596.0 | -521.8 | |
| 2.13 | 3.82 | 1.26 | 2.26 | 12.25 | 352.20 | -33.26 | 78.60 | 0.5489 | 935.3 | 697.9 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 15.58 | 351.39 | -34.07 | 72.85 | 0.5669 | -574.0 | -471.4 | |
| 0.00 | 1.51 | 0.00 | 0.91 | 15.51 | 351.18 | -34.29 | 73.05 | 0.5697 | -446.0 | -379.3 | |
| 0.00 | 1.86 | 0.00 | 1.14 | 16.51 | 350.14 | -35.33 | 71.65 | 0.5863 | -602.0 | -478.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 15.39 | 349.94 | -35.52 | 73.59 | 0.5862 | -523.0 | -457.1 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 13.59 | 350.00 | -35.46 | 76.64 | 0.5818 | 712.0 | 524.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 13.34 | 349.85 | -35.61 | 77.10 | 0.5834 | 577.0 | 622.7 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 7.82 | 350.39 | -35.08 | 86.64 | 0.5725 | 561.0 | 437.8 | |
| 2.22 | 4.08 | 1.36 | 2.51 | 13.60 | 349.23 | -36.23 | 76.78 | 0.5923 | 904.4 | 721.8 | |
| 0.00 | 1.78 | 0.00 | 1.14 | 14.31 | 346.06 | -39.40 | 76.17 | 0.6357 | 705.0 | 647.6 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 14.87 | 345.33 | -40.13 | 75.43 | 0.6460 | 699.0 | 611.0 | |
| 0.00 | 1.15 | 0.00 | 0.76 | 14.44 | 344.57 | -40.90 | 76.21 | 0.6552 | 682.0 | 541.4 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 13.62 | 344.62 | -40.85 | 77.46 | 0.6535 | 633.0 | 500.9 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 12.17 | 344.82 | -40.64 | 79.66 | 0.6495 | 537.0 | 471.0 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 14.51 | 344.34 | -41.12 | 76.13 | 0.6581 | 584.0 | 498.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 16.80 | 343.69 | -41.77 | 72.82 | 0.6698 | 595.0 | 532.2 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 15.03 | 343.93 | -41.53 | 75.41 | 0.6640 | 642.0 | 486.8 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 12.89 | 344.27 | -41.19 | 78.61 | 0.6572 | 688.0 | 619.6 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 13.54 | 344.02 | -41.45 | 77.65 | 0.6611 | 604.0 | 480.5 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 12.99 | 344.09 | -41.38 | 78.47 | 0.6597 | 683.0 | 567.9 | |
| 0.00 | 3.37 | 0.00 | 2.22 | 12.66 | 344.07 | -41.39 | 78.98 | 0.6596 | 519.0 | 481.3 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 15.11 | 343.37 | -42.10 | 75.38 | 0.6712 | 421.0 | 302.9 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 12.70 | 343.86 | -41.61 | 78.93 | 0.6624 | 318.0 | 269.0 | |
| 0.00 | 1.15 | 0.00 | 0.76 | 10.79 | 343.92 | -41.55 | 81.83 | 0.6605 | 713.0 | 624.0 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 13.23 | 343.21 | -42.26 | 78.21 | 0.6711 | 463.0 | 387.3 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 14.98 | 342.55 | -42.92 | 75.69 | 0.6812 | 533.0 | 428.5 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 8.75 | 341.39 | -44.07 | 84.85 | 0.6926 | -684.0 | -558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
