SDO HMI 2014-09-15 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 34.37 | 1.43 | 24.19 | -15.91 | 64.15 | 39.24 | 238.97 | 0.7120 | 130.4 | 135.4 | |
|
previous
or next observation for the same group /

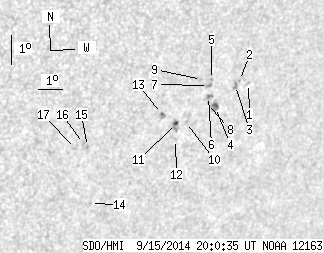

back to the solar disc SDO HMI 2014-09-15 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.90 | -15.18 | 66.56 | 41.65 | 241.36 | 0.7331 | 572.0 | 506.5 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -15.05 | 66.15 | 41.24 | 241.29 | 0.7281 | 740.0 | 640.8 | |
| 0.00 | 3.11 | 0.00 | 2.24 | -15.20 | 66.02 | 41.11 | 241.03 | 0.7275 | 753.0 | 620.1 | |
| 0.00 | 4.80 | 0.00 | 3.43 | -15.86 | 65.35 | 40.44 | 239.82 | 0.7241 | 709.0 | 648.6 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -14.92 | 64.96 | 40.05 | 240.76 | 0.7149 | 738.0 | 576.0 | |
| 0.36 | 2.93 | 0.25 | 2.08 | -15.47 | 64.97 | 40.06 | 240.07 | 0.7180 | 681.8 | 609.0 | |
| 0.00 | 2.22 | 0.00 | 1.57 | -15.10 | 64.88 | 39.97 | 240.47 | 0.7151 | 752.0 | 591.8 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -15.70 | 64.98 | 40.07 | 239.79 | 0.7194 | 597.0 | 507.7 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -14.88 | 64.55 | 39.64 | 240.55 | 0.7103 | 413.0 | 369.7 | |
| 0.00 | 1.69 | 0.00 | 1.19 | -16.25 | 64.25 | 39.34 | 238.65 | 0.7150 | 163.0 | 103.1 | |
| 1.33 | 5.77 | 0.93 | 4.05 | -16.25 | 63.85 | 38.94 | 238.40 | 0.7107 | -662.9 | -451.2 | |
| 0.00 | 1.24 | 0.00 | 0.88 | -16.78 | 63.93 | 39.02 | 237.80 | 0.7147 | -653.0 | -480.6 | |
| 0.36 | 3.11 | 0.25 | 2.16 | -15.87 | 63.16 | 38.24 | 238.42 | 0.7012 | -685.0 | -649.1 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -18.65 | 60.99 | 36.08 | 233.47 | 0.6967 | -582.0 | -511.5 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -16.73 | 60.43 | 35.52 | 235.44 | 0.6779 | -561.0 | -519.5 | |
| 0.00 | 1.51 | 0.00 | 1.01 | -16.61 | 60.25 | 35.34 | 235.45 | 0.6753 | -209.0 | -206.9 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -16.76 | 59.97 | 35.06 | 235.06 | 0.6733 | -538.0 | -453.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
