SDO HMI 2014-09-15 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.68 | 172.78 | 14.17 | 100.79 | 12.27 | 353.22 | -31.69 | 78.24 | 0.5252 | -438.8 | -352.5 | |
|
previous
or next observation for the same group /

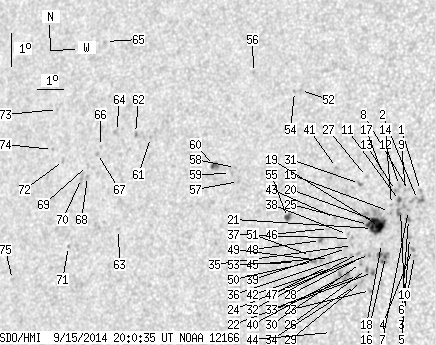

back to the solar disc SDO HMI 2014-09-15 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.95 | 13.33 | 356.79 | -28.12 | 75.20 | 0.4763 | -777.0 | -635.2 | |
| 0.00 | 7.81 | 0.00 | 4.40 | 13.05 | 356.72 | -28.19 | 75.80 | 0.4766 | -783.0 | -765.0 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 11.36 | 356.81 | -28.10 | 79.34 | 0.4719 | -827.0 | -671.7 | |
| 0.00 | 2.22 | 0.00 | 1.25 | 11.53 | 356.72 | -28.19 | 78.98 | 0.4735 | -1000.0 | -854.0 | |
| 0.00 | 1.86 | 0.00 | 1.05 | 11.89 | 356.58 | -28.33 | 78.27 | 0.4763 | -990.0 | -803.2 | |
| 0.00 | 2.40 | 0.00 | 1.35 | 12.43 | 356.48 | -28.43 | 77.17 | 0.4788 | -967.0 | -850.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.70 | 356.45 | -28.46 | 76.61 | 0.4799 | -938.0 | -715.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 13.34 | 356.37 | -28.54 | 75.33 | 0.4826 | -635.0 | -508.2 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 13.30 | 356.27 | -28.64 | 75.44 | 0.4840 | -731.0 | -595.2 | |
| 0.00 | 5.95 | 0.00 | 3.36 | 12.69 | 356.17 | -28.74 | 76.73 | 0.4840 | -692.0 | -826.3 | |
| 0.80 | 3.37 | 0.45 | 1.91 | 12.99 | 356.10 | -28.82 | 76.14 | 0.4857 | -848.2 | -664.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 13.44 | 356.04 | -28.87 | 75.23 | 0.4877 | -713.0 | -659.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 13.28 | 355.92 | -29.00 | 75.60 | 0.4891 | -821.0 | -621.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 12.85 | 355.83 | -29.08 | 76.50 | 0.4893 | -587.0 | -489.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 12.63 | 355.79 | -29.13 | 76.94 | 0.4895 | -493.0 | -620.5 | |
| 0.62 | 10.83 | 0.35 | 6.14 | 11.27 | 355.80 | -29.11 | 79.73 | 0.4868 | -1123.0 | -864.1 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 13.77 | 355.39 | -29.52 | 74.79 | 0.4980 | -716.0 | -487.9 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 11.65 | 355.62 | -29.29 | 78.98 | 0.4902 | -683.0 | -551.6 | |
| 9.68 | 37.83 | 5.50 | 21.56 | 12.16 | 355.49 | -29.42 | 77.98 | 0.4930 | -1115.2 | -287.4 | |
| 3.64 | -19.00 | 2.07 | -19.00 | 12.33 | 355.29 | -29.62 | 77.69 | 0.4962 | -874.6 | 999999 | |
| 3.02 | -19.00 | 1.72 | -19.00 | 12.09 | 355.25 | -29.66 | 78.19 | 0.4964 | -886.1 | 999999 | |
| 0.36 | 2.22 | 0.20 | 1.26 | 10.76 | 355.40 | -29.51 | 80.84 | 0.4922 | -948.2 | -843.3 | |
| 0.00 | 1.95 | 0.00 | 1.11 | 10.21 | 355.39 | -29.53 | 81.95 | 0.4918 | -769.0 | -638.0 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 11.30 | 355.24 | -29.68 | 79.78 | 0.4953 | -872.0 | -796.1 | |
| 1.95 | -19.00 | 1.12 | -19.00 | 12.20 | 355.09 | -29.82 | 78.00 | 0.4989 | -770.5 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 10.84 | 355.18 | -29.73 | 80.71 | 0.4956 | -914.0 | -743.7 | |
| 0.00 | 1.51 | 0.00 | 0.87 | 13.64 | 354.83 | -30.08 | 75.21 | 0.5058 | -783.0 | -554.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 11.26 | 355.06 | -29.85 | 79.89 | 0.4978 | -757.0 | -639.3 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 10.47 | 355.04 | -29.87 | 81.48 | 0.4972 | -764.0 | -577.8 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 11.01 | 354.95 | -29.96 | 80.41 | 0.4992 | -826.0 | -651.8 | |
| 0.00 | 1.95 | 0.00 | 1.12 | 13.42 | 354.61 | -30.30 | 75.72 | 0.5084 | -743.0 | -639.5 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 11.30 | 354.85 | -30.07 | 79.84 | 0.5011 | -901.0 | -744.9 | |
| 0.00 | 2.04 | 0.00 | 1.17 | 10.64 | 354.88 | -30.03 | 81.16 | 0.4998 | -753.0 | -624.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 10.33 | 354.84 | -30.07 | 81.78 | 0.5000 | -656.0 | -553.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 11.53 | 354.60 | -30.31 | 79.43 | 0.5050 | -644.0 | -553.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 11.23 | 354.60 | -30.31 | 80.03 | 0.5046 | -702.0 | -549.3 | |
| 0.00 | 1.60 | 0.00 | 0.92 | 11.74 | 354.54 | -30.37 | 79.03 | 0.5062 | -724.0 | -575.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 11.85 | 354.39 | -30.52 | 78.84 | 0.5087 | -582.0 | -454.9 | |
| 0.00 | 1.86 | 0.00 | 1.07 | 11.43 | 354.40 | -30.51 | 79.67 | 0.5078 | -524.0 | -458.0 | |
| 0.00 | 7.73 | 0.00 | 4.44 | 10.58 | 354.36 | -30.56 | 81.36 | 0.5075 | -624.0 | -700.8 | |
| 0.00 | 1.51 | 0.00 | 0.88 | 13.85 | 353.72 | -31.19 | 75.15 | 0.5223 | -601.0 | -475.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 10.86 | 354.11 | -30.80 | 80.82 | 0.5115 | -638.0 | -531.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 12.33 | 353.86 | -31.05 | 78.01 | 0.5172 | -612.0 | -444.6 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 8.87 | 354.14 | -30.78 | 84.74 | 0.5097 | -501.0 | -428.5 | |
| 0.00 | 1.60 | 0.00 | 0.92 | 11.12 | 353.83 | -31.08 | 80.37 | 0.5159 | -557.0 | -445.9 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 11.99 | 353.69 | -31.23 | 78.71 | 0.5192 | -457.0 | -392.3 | |
| 0.00 | 1.42 | 0.00 | 0.82 | 10.84 | 353.79 | -31.12 | 80.91 | 0.5161 | -569.0 | -457.4 | |
| 0.44 | 2.66 | 0.26 | 1.55 | 11.61 | 353.45 | -31.47 | 79.48 | 0.5221 | -703.2 | -533.8 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 11.01 | 353.52 | -31.39 | 80.63 | 0.5203 | -916.0 | -771.1 | |
| 0.00 | 2.66 | 0.00 | 1.55 | 10.96 | 353.27 | -31.64 | 80.75 | 0.5239 | -750.0 | -629.4 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 11.14 | 353.14 | -31.77 | 80.44 | 0.5259 | -517.0 | -418.5 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 16.09 | 352.02 | -32.89 | 71.57 | 0.5521 | -694.0 | -627.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 10.89 | 352.63 | -32.28 | 80.97 | 0.5332 | -720.0 | -560.2 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 16.05 | 351.80 | -33.11 | 71.73 | 0.5550 | -682.0 | -561.7 | |
| 2.13 | 4.08 | 1.25 | 2.40 | 12.23 | 352.16 | -32.75 | 78.55 | 0.5415 | 976.4 | 730.0 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 16.52 | 350.16 | -34.76 | 71.45 | 0.5787 | -592.0 | -460.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 13.19 | 350.20 | -34.72 | 77.19 | 0.5708 | 682.0 | 532.2 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 13.60 | 350.01 | -34.90 | 76.51 | 0.5740 | 728.0 | 518.7 | |
| 0.00 | 0.44 | 0.00 | 0.27 | 13.41 | 349.86 | -35.06 | 76.88 | 0.5759 | 587.0 | 668.0 | |
| 2.04 | 5.42 | 1.25 | 3.30 | 13.61 | 349.21 | -35.70 | 76.66 | 0.5851 | 923.7 | 725.1 | |
| 0.00 | 1.42 | 0.00 | 0.90 | 14.27 | 346.60 | -38.32 | 76.05 | 0.6214 | 702.0 | 543.9 | |
| 0.00 | 1.78 | 0.00 | 1.13 | 14.35 | 345.98 | -38.93 | 76.03 | 0.6296 | 748.0 | 650.3 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 11.41 | 345.84 | -39.07 | 80.73 | 0.6282 | 550.0 | 447.1 | |
| 0.00 | 2.58 | 0.00 | 1.66 | 14.35 | 345.21 | -39.70 | 76.16 | 0.6396 | 368.0 | 386.5 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 17.03 | 344.13 | -40.79 | 72.26 | 0.6581 | 153.0 | 220.5 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 13.85 | 344.67 | -40.24 | 77.02 | 0.6460 | 743.0 | 573.9 | |
| 0.00 | 1.60 | 0.00 | 1.04 | 13.63 | 344.59 | -40.32 | 77.37 | 0.6467 | 792.0 | 659.9 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 12.91 | 344.33 | -40.58 | 78.52 | 0.6494 | 728.0 | 611.6 | |
| 0.00 | 1.60 | 0.00 | 1.04 | 13.24 | 344.26 | -40.65 | 78.02 | 0.6505 | 740.0 | 539.4 | |
| 0.00 | 4.08 | 0.00 | 2.66 | 12.83 | 344.10 | -40.81 | 78.66 | 0.6523 | 625.0 | 521.8 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 10.75 | 343.94 | -40.97 | 81.87 | 0.6530 | 632.0 | 556.2 | |
| 0.00 | 1.86 | 0.00 | 1.23 | 13.31 | 343.26 | -41.65 | 78.02 | 0.6635 | 508.0 | 495.1 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 14.82 | 342.67 | -42.25 | 75.83 | 0.6726 | 430.0 | 378.6 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 13.60 | 342.74 | -42.18 | 77.64 | 0.6704 | 499.0 | 396.8 | |
| 0.00 | 1.33 | 0.00 | 0.90 | 9.57 | 341.81 | -43.10 | 83.68 | 0.6802 | -285.0 | -317.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
