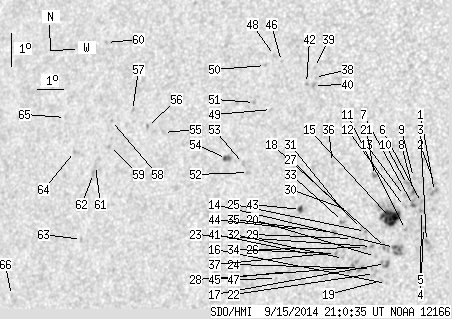

SDO HMI 2014-09-15 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.51 | 171.33 | 14.00 | 99.12 | 12.35 | 353.40 | -30.96 | 77.95 | 0.5151 | -462.6 | -409.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.55 | 0.00 | 1.99 | 13.06 | 356.84 | -27.52 | 75.56 | 0.4668 | -903.0 | -826.9 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.30 | 356.81 | -27.55 | 75.06 | 0.4678 | -876.0 | -703.6 | |
| 0.00 | 2.04 | 0.00 | 1.14 | 11.54 | 356.73 | -27.63 | 78.85 | 0.4651 | -1035.0 | -906.1 | |
| 0.00 | 1.69 | 0.00 | 0.94 | 11.95 | 356.58 | -27.78 | 77.99 | 0.4681 | -938.0 | -780.5 | |
| 0.00 | 2.66 | 0.00 | 1.49 | 12.46 | 356.45 | -27.91 | 76.95 | 0.4711 | -1022.0 | -838.4 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 12.70 | 356.42 | -27.94 | 76.45 | 0.4720 | -864.0 | -794.9 | |
| 0.53 | 5.51 | 0.30 | 3.10 | 12.60 | 356.16 | -28.20 | 76.76 | 0.4758 | -995.3 | -770.9 | |
| 0.44 | 3.73 | 0.25 | 2.10 | 13.02 | 356.10 | -28.25 | 75.89 | 0.4775 | -892.0 | -692.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 13.44 | 356.05 | -28.31 | 75.04 | 0.4794 | -603.0 | -532.8 | |
| 0.00 | 4.35 | 0.00 | 2.46 | 13.22 | 355.87 | -28.49 | 75.56 | 0.4815 | -743.0 | -626.0 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 11.86 | 355.96 | -28.40 | 78.36 | 0.4772 | -969.0 | -734.7 | |
| 0.00 | 1.86 | 0.00 | 1.05 | 12.55 | 355.85 | -28.51 | 76.95 | 0.4803 | -806.0 | -644.3 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 12.88 | 355.81 | -28.55 | 76.27 | 0.4816 | -490.0 | -447.2 | |
| 0.98 | 9.59 | 0.55 | 5.41 | 11.29 | 355.64 | -28.72 | 79.60 | 0.4811 | -988.2 | -899.9 | |
| 18.38 | 36.06 | 10.41 | 20.43 | 12.19 | 355.40 | -28.96 | 77.81 | 0.4862 | -1007.0 | -328.3 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 10.19 | 355.47 | -28.89 | 81.92 | 0.4822 | -660.0 | -583.7 | |
| 0.00 | 5.51 | 0.00 | 3.11 | 10.79 | 355.37 | -28.99 | 80.69 | 0.4843 | -821.0 | -810.2 | |
| 0.00 | 4.97 | 0.00 | 2.81 | 11.28 | 355.32 | -29.04 | 79.70 | 0.4858 | -662.0 | -676.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 10.27 | 355.29 | -29.07 | 81.77 | 0.4851 | -718.0 | -605.3 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 10.98 | 355.00 | -29.36 | 80.36 | 0.4901 | -854.0 | -671.1 | |
| 0.00 | 2.58 | 0.00 | 1.47 | 13.42 | 354.67 | -29.69 | 75.53 | 0.4996 | -853.0 | -635.8 | |
| 0.00 | 2.93 | 0.00 | 1.66 | 10.47 | 355.02 | -29.34 | 81.41 | 0.4893 | -654.0 | -560.1 | |
| 0.00 | 1.95 | 0.00 | 1.11 | 11.28 | 354.83 | -29.53 | 79.80 | 0.4931 | -925.0 | -762.0 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 10.61 | 354.90 | -29.46 | 81.13 | 0.4912 | -767.0 | -582.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 11.72 | 354.57 | -29.79 | 78.96 | 0.4977 | -799.0 | -664.3 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 11.23 | 354.59 | -29.77 | 79.93 | 0.4967 | -752.0 | -624.4 | |
| 0.00 | 1.78 | 0.00 | 1.01 | 11.80 | 354.41 | -29.95 | 78.83 | 0.5001 | -498.0 | -459.5 | |
| 0.00 | 10.12 | 0.00 | 5.78 | 10.61 | 354.34 | -30.02 | 81.22 | 0.4996 | -356.0 | -671.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 11.48 | 354.13 | -30.23 | 79.52 | 0.5038 | -606.0 | -452.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 12.31 | 353.89 | -30.47 | 77.93 | 0.5087 | -596.0 | -396.7 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 12.16 | 353.87 | -30.49 | 78.23 | 0.5087 | -597.0 | -488.0 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 10.86 | 353.88 | -30.48 | 80.80 | 0.5066 | -410.0 | -388.7 | |
| 0.00 | 2.22 | 0.00 | 1.28 | 11.97 | 353.71 | -30.64 | 78.64 | 0.5106 | -596.0 | -485.5 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 10.99 | 353.58 | -30.78 | 80.58 | 0.5112 | -874.0 | -683.5 | |
| 0.00 | 2.22 | 0.00 | 1.28 | 11.62 | 353.47 | -30.89 | 79.37 | 0.5137 | -791.0 | -578.6 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 13.72 | 353.12 | -31.24 | 75.40 | 0.5227 | -98.0 | -119.1 | |
| 0.00 | 2.40 | 0.00 | 1.38 | 10.97 | 353.30 | -31.06 | 80.66 | 0.5154 | -697.0 | -566.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 16.26 | 352.04 | -32.32 | 71.08 | 0.5448 | -583.0 | -575.8 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 16.56 | 351.98 | -32.38 | 70.55 | 0.5465 | -648.0 | -561.4 | |
| 0.00 | 2.04 | 0.00 | 1.20 | 16.01 | 352.04 | -32.32 | 71.52 | 0.5439 | -789.0 | -647.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 10.90 | 352.73 | -31.63 | 80.86 | 0.5237 | -515.0 | -517.7 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 16.05 | 351.78 | -32.58 | 71.53 | 0.5478 | -614.0 | -545.4 | |
| 1.78 | 3.37 | 1.04 | 1.97 | 12.23 | 352.16 | -32.20 | 78.44 | 0.5336 | 927.2 | 740.7 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 11.63 | 352.24 | -32.12 | 79.55 | 0.5316 | -485.0 | -371.5 | |
| 0.00 | 1.42 | 0.00 | 0.83 | 10.34 | 351.96 | -32.40 | 82.02 | 0.5344 | -656.0 | -539.3 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 16.66 | 350.72 | -33.64 | 70.84 | 0.5640 | -686.0 | -545.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 10.10 | 351.55 | -32.81 | 82.50 | 0.5401 | -573.0 | -475.6 | |
| 0.00 | 1.69 | 0.00 | 1.01 | 16.83 | 350.42 | -33.94 | 70.66 | 0.5685 | -643.0 | -544.7 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 15.18 | 350.62 | -33.74 | 73.46 | 0.5613 | -531.0 | -468.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 16.50 | 350.15 | -34.21 | 71.31 | 0.5713 | -578.0 | -443.6 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 15.35 | 349.95 | -34.41 | 73.36 | 0.5709 | -599.0 | -478.7 | |
| 0.00 | 1.69 | 0.00 | 1.01 | 13.22 | 350.09 | -34.27 | 77.05 | 0.5646 | 720.0 | 650.5 | |
| 0.00 | 1.95 | 0.00 | 1.17 | 13.48 | 349.86 | -34.50 | 76.64 | 0.5683 | 554.0 | 581.4 | |
| 2.40 | 4.35 | 1.45 | 2.64 | 13.59 | 349.20 | -35.16 | 76.59 | 0.5776 | 905.4 | 738.8 | |
| 0.00 | 1.78 | 0.00 | 1.11 | 14.20 | 346.65 | -37.71 | 76.06 | 0.6132 | 728.0 | 523.5 | |
| 0.00 | 1.42 | 0.00 | 0.90 | 14.33 | 345.99 | -38.37 | 75.96 | 0.6221 | 735.0 | 670.4 | |
| 0.00 | 1.42 | 0.00 | 0.91 | 14.77 | 345.30 | -39.06 | 75.39 | 0.6319 | 582.0 | 514.9 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 14.40 | 344.53 | -39.83 | 76.10 | 0.6414 | 786.0 | 619.8 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 13.62 | 344.61 | -39.75 | 77.32 | 0.6392 | 768.0 | 702.7 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 16.74 | 343.78 | -40.58 | 72.65 | 0.6550 | 550.0 | 493.4 | |
| 0.00 | 1.51 | 0.00 | 0.98 | 13.00 | 344.17 | -40.19 | 78.33 | 0.6444 | 629.0 | 520.9 | |
| 0.00 | 2.58 | 0.00 | 1.66 | 12.75 | 344.13 | -40.23 | 78.72 | 0.6446 | 631.0 | 534.0 | |
| 0.00 | 1.60 | 0.00 | 1.03 | 10.74 | 344.00 | -40.36 | 81.87 | 0.6450 | 655.0 | 510.5 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 13.35 | 343.24 | -41.12 | 77.89 | 0.6567 | 610.0 | 551.4 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 14.35 | 342.65 | -41.71 | 76.47 | 0.6653 | 347.0 | 302.2 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 8.83 | 341.42 | -42.94 | 84.78 | 0.6783 | -563.0 | -457.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
