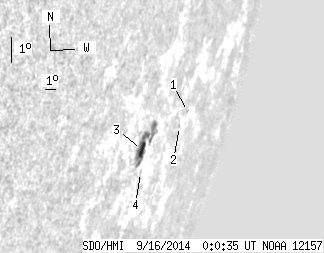

SDO HMI 2014-09-16 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.44 | 36.07 | 14.50 | 63.42 | -14.96 | 93.37 | 70.67 | 251.99 | 0.9597 | -455.9 | -290.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 2.17 | -14.30 | 97.42 | 74.71 | 253.49 | 0.9759 | 157.0 | 149.5 | |
| 0.00 | 0.71 | 0.00 | 1.54 | -14.70 | 96.85 | 74.15 | 252.97 | 0.9742 | 177.0 | 157.1 | |
| 8.44 | 33.58 | 14.50 | 58.28 | -14.97 | 93.12 | 70.42 | 251.93 | 0.9587 | -563.0 | -333.3 | |
| 0.00 | 0.80 | 0.00 | 1.43 | -15.78 | 93.66 | 70.96 | 251.23 | 0.9620 | -149.0 | -129.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
