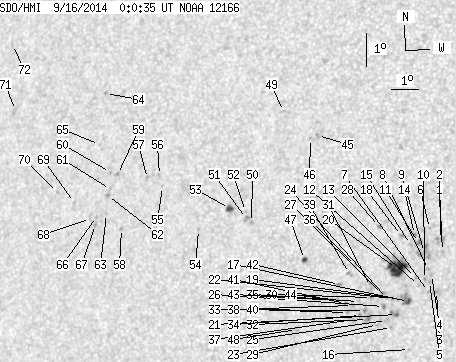

SDO HMI 2014-09-16 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.76 | 181.96 | 14.48 | 104.38 | 12.45 | 352.81 | -29.90 | 77.56 | 0.4988 | -371.6 | -346.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.78 | 12.76 | 356.94 | -25.77 | 75.58 | 0.4396 | -773.0 | -651.9 | |
| 0.00 | 3.82 | 0.00 | 2.11 | 13.12 | 356.83 | -25.87 | 74.82 | 0.4422 | -649.0 | -808.2 | |
| 0.00 | 2.58 | 0.00 | 1.42 | 11.55 | 356.86 | -25.85 | 78.36 | 0.4379 | -990.0 | -790.2 | |
| 0.00 | 1.51 | 0.00 | 0.83 | 12.05 | 356.64 | -26.07 | 77.29 | 0.4424 | -844.0 | -696.7 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 11.84 | 356.59 | -26.11 | 77.79 | 0.4426 | -899.0 | -765.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 13.44 | 356.42 | -26.29 | 74.29 | 0.4493 | -631.0 | -449.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.53 | 356.59 | -26.12 | 78.47 | 0.4421 | -846.0 | -717.1 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 12.20 | 356.52 | -26.19 | 77.00 | 0.4445 | -897.0 | -713.2 | |
| 0.00 | 11.90 | 0.00 | 6.59 | 12.70 | 356.33 | -26.38 | 75.95 | 0.4487 | -977.0 | -815.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.89 | 356.41 | -26.29 | 77.73 | 0.4454 | -873.0 | -742.5 | |
| 0.00 | 3.55 | 0.00 | 1.97 | 12.99 | 356.09 | -26.62 | 75.39 | 0.4530 | -940.0 | -752.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.70 | 356.23 | -26.48 | 78.21 | 0.4479 | -715.0 | -543.7 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 11.93 | 356.10 | -26.61 | 77.72 | 0.4503 | -867.0 | -737.0 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 13.23 | 355.92 | -26.78 | 74.95 | 0.4561 | -820.0 | -709.4 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 12.92 | 355.82 | -26.89 | 75.65 | 0.4569 | -613.0 | -567.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 9.75 | 356.10 | -26.61 | 82.58 | 0.4470 | -605.0 | -521.7 | |
| 1.95 | 9.15 | 1.08 | 5.08 | 11.19 | 355.93 | -26.77 | 79.39 | 0.4514 | -1036.0 | -858.3 | |
| 0.00 | 1.95 | 0.00 | 1.09 | 13.17 | 355.47 | -27.23 | 75.23 | 0.4627 | -618.0 | -397.4 | |
| 0.00 | 2.04 | 0.00 | 1.14 | 11.26 | 355.55 | -27.16 | 79.33 | 0.4574 | -869.0 | -644.3 | |
| 18.92 | 31.27 | 10.55 | 17.44 | 12.17 | 355.42 | -27.29 | 77.41 | 0.4611 | -1003.5 | -417.9 | |
| 0.62 | 5.06 | 0.35 | 2.82 | 10.78 | 355.56 | -27.15 | 80.39 | 0.4565 | -951.9 | -829.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 11.25 | 355.37 | -27.33 | 79.39 | 0.4600 | -873.0 | -780.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 10.38 | 355.42 | -27.28 | 81.29 | 0.4580 | -738.0 | -641.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.25 | 355.20 | -27.50 | 79.45 | 0.4626 | -710.0 | -622.7 | |
| 0.00 | 2.84 | 0.00 | 1.59 | 10.58 | 355.23 | -27.47 | 80.88 | 0.4612 | -651.0 | -643.1 | |
| 0.00 | 1.95 | 0.00 | 1.09 | 11.00 | 355.09 | -27.62 | 80.01 | 0.4639 | -870.0 | -742.1 | |
| 0.00 | 3.73 | 0.00 | 2.09 | 11.36 | 355.02 | -27.69 | 79.26 | 0.4656 | -741.0 | -733.7 | |
| 0.00 | 1.95 | 0.00 | 1.10 | 13.40 | 354.68 | -28.03 | 75.03 | 0.4751 | -827.0 | -623.0 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 10.44 | 354.93 | -27.77 | 81.23 | 0.4655 | -634.0 | -531.3 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 11.24 | 354.65 | -28.06 | 79.58 | 0.4710 | -790.0 | -647.8 | |
| 0.00 | 4.80 | 0.00 | 2.69 | 11.57 | 354.58 | -28.13 | 78.89 | 0.4726 | -702.0 | -661.9 | |
| 0.00 | 4.26 | 0.00 | 2.39 | 10.57 | 354.57 | -28.13 | 81.01 | 0.4712 | -797.0 | -748.9 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 10.84 | 354.44 | -28.26 | 80.47 | 0.4735 | -884.0 | -765.3 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 10.68 | 354.32 | -28.39 | 80.83 | 0.4751 | -774.0 | -659.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.10 | 354.21 | -28.50 | 79.97 | 0.4774 | -524.0 | -472.0 | |
| 0.00 | 2.22 | 0.00 | 1.25 | 12.18 | 353.98 | -28.72 | 77.78 | 0.4826 | -657.0 | -433.5 | |
| 0.00 | 2.04 | 0.00 | 1.15 | 10.55 | 354.09 | -28.62 | 81.15 | 0.4785 | -593.0 | -499.0 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 10.97 | 354.01 | -28.69 | 80.29 | 0.4802 | -783.0 | -597.1 | |
| 0.00 | 2.75 | 0.00 | 1.56 | 11.92 | 353.80 | -28.91 | 78.35 | 0.4848 | -584.0 | -514.6 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 10.74 | 353.86 | -28.85 | 80.77 | 0.4822 | -647.0 | -510.5 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 11.01 | 353.76 | -28.94 | 80.24 | 0.4840 | -719.0 | -583.6 | |
| 0.00 | 2.04 | 0.00 | 1.16 | 11.57 | 353.49 | -29.22 | 79.14 | 0.4889 | -779.0 | -580.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 11.09 | 353.47 | -29.23 | 80.14 | 0.4884 | -587.0 | -544.4 | |
| 0.00 | 2.04 | 0.00 | 1.16 | 11.10 | 353.29 | -29.41 | 80.13 | 0.4911 | -609.0 | -501.8 | |
| 0.00 | 1.78 | 0.00 | 1.03 | 16.03 | 352.07 | -30.63 | 70.84 | 0.5205 | -817.0 | -691.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 15.92 | 351.83 | -30.87 | 71.14 | 0.5235 | -636.0 | -564.5 | |
| 1.69 | 2.84 | 0.97 | 1.63 | 12.25 | 352.16 | -30.54 | 78.07 | 0.5096 | 878.0 | 692.2 | |
| 0.00 | 1.95 | 0.00 | 1.12 | 10.12 | 352.12 | -30.58 | 82.26 | 0.5075 | -660.0 | -543.0 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 16.68 | 350.70 | -32.00 | 70.19 | 0.5417 | -580.0 | -483.4 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 13.24 | 350.10 | -32.61 | 76.66 | 0.5412 | 829.0 | 675.7 | |
| 0.00 | 2.93 | 0.00 | 1.73 | 13.35 | 349.90 | -32.81 | 76.50 | 0.5443 | 818.0 | 717.3 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 13.56 | 349.83 | -32.88 | 76.14 | 0.5456 | 659.0 | 477.8 | |
| 2.58 | 4.53 | 1.53 | 2.69 | 13.61 | 349.23 | -33.48 | 76.19 | 0.5542 | 902.4 | 662.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 12.90 | 348.18 | -34.53 | 77.67 | 0.5677 | 706.0 | 569.5 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 14.10 | 346.60 | -36.10 | 75.91 | 0.5914 | 538.0 | 516.6 | |
| 0.00 | 1.60 | 0.00 | 0.98 | 14.43 | 346.43 | -36.28 | 75.40 | 0.5944 | 663.0 | 567.0 | |
| 0.00 | 2.13 | 0.00 | 1.32 | 14.30 | 345.99 | -36.72 | 75.70 | 0.6001 | 748.0 | 629.4 | |
| 0.00 | 1.33 | 0.00 | 0.83 | 12.73 | 345.26 | -37.45 | 78.43 | 0.6076 | 791.0 | 628.7 | |
| 0.00 | 1.87 | 0.00 | 1.17 | 14.34 | 344.80 | -37.90 | 75.87 | 0.6160 | 701.0 | 542.1 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 14.38 | 344.52 | -38.19 | 75.86 | 0.6198 | 808.0 | 634.8 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 13.87 | 344.62 | -38.09 | 76.67 | 0.6177 | 516.0 | 440.3 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 13.68 | 344.54 | -38.17 | 76.99 | 0.6185 | 802.0 | 678.5 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 13.13 | 344.60 | -38.11 | 77.86 | 0.6170 | 596.0 | 558.5 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 16.75 | 343.79 | -38.91 | 72.26 | 0.6338 | 705.0 | 573.5 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 15.19 | 343.91 | -38.80 | 74.68 | 0.6292 | 505.0 | 419.1 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 13.01 | 344.22 | -38.48 | 78.10 | 0.6218 | 714.0 | 565.8 | |
| 0.00 | 1.51 | 0.00 | 0.95 | 12.77 | 344.23 | -38.48 | 78.49 | 0.6215 | 642.0 | 539.8 | |
| 0.00 | 3.11 | 0.00 | 1.97 | 12.94 | 344.00 | -38.70 | 78.26 | 0.6247 | 221.0 | 379.3 | |
| 0.00 | 1.24 | 0.00 | 0.80 | 13.37 | 343.28 | -39.43 | 77.66 | 0.6347 | 664.0 | 490.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 13.62 | 342.54 | -40.16 | 77.38 | 0.6446 | 517.0 | 450.2 | |
| 0.00 | 4.44 | 0.00 | 2.98 | 15.95 | 340.25 | -42.45 | 74.20 | 0.6768 | 161.0 | 328.1 | |
| 0.00 | 1.87 | 0.00 | 1.27 | 17.93 | 339.57 | -43.14 | 71.44 | 0.6885 | 401.0 | 389.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
