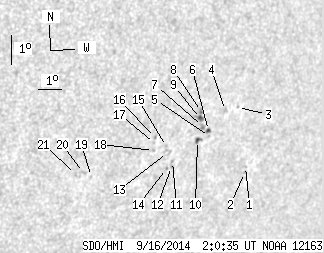

SDO HMI 2014-09-16 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.74 | 33.95 | 2.81 | 25.30 | -16.07 | 64.44 | 42.83 | 240.91 | 0.7496 | 22.2 | 86.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.92 | -17.17 | 67.44 | 45.83 | 241.23 | 0.7841 | 631.0 | 566.4 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -17.37 | 67.46 | 45.85 | 241.01 | 0.7852 | 554.0 | 498.2 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -15.16 | 66.49 | 44.88 | 243.12 | 0.7659 | 580.0 | 422.0 | |
| 0.00 | 2.13 | 0.00 | 1.62 | -15.21 | 65.97 | 44.37 | 242.80 | 0.7610 | 602.0 | 525.8 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -16.01 | 65.49 | 43.88 | 241.59 | 0.7599 | 503.0 | 391.8 | |
| 1.07 | 2.13 | 0.81 | 1.61 | -15.80 | 65.39 | 43.78 | 241.78 | 0.7579 | 530.8 | 427.4 | |
| 0.00 | 2.49 | 0.00 | 1.87 | -15.64 | 65.09 | 43.48 | 241.81 | 0.7541 | 707.0 | 611.9 | |
| 0.00 | 1.60 | 0.00 | 1.19 | -15.14 | 64.91 | 43.31 | 242.32 | 0.7499 | 754.0 | 624.9 | |
| 1.51 | 4.00 | 1.13 | 2.99 | -15.37 | 64.93 | 43.32 | 242.06 | 0.7512 | 802.2 | 701.5 | |
| 1.16 | 3.38 | 0.87 | 2.54 | -16.09 | 64.99 | 43.39 | 241.22 | 0.7553 | 576.5 | 491.7 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -16.69 | 64.08 | 42.47 | 239.99 | 0.7492 | -496.0 | -347.8 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -16.86 | 64.08 | 42.48 | 239.80 | 0.7501 | -543.0 | -424.8 | |
| 0.00 | 3.82 | 0.00 | 2.82 | -16.37 | 63.78 | 42.17 | 240.21 | 0.7446 | -412.0 | -436.5 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -16.90 | 63.88 | 42.27 | 239.62 | 0.7483 | -319.0 | -373.6 | |
| 0.00 | 1.60 | 0.00 | 1.18 | -16.17 | 63.68 | 42.08 | 240.40 | 0.7425 | -538.0 | -413.6 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -15.83 | 63.13 | 41.52 | 240.50 | 0.7351 | -557.0 | -486.2 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -16.02 | 63.14 | 41.53 | 240.26 | 0.7362 | -711.0 | -603.5 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -16.25 | 63.15 | 41.55 | 239.99 | 0.7376 | -664.0 | -576.7 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -16.89 | 60.75 | 39.14 | 237.73 | 0.7166 | -455.0 | -317.3 | |
| 0.00 | 1.51 | 0.00 | 1.06 | -16.73 | 60.38 | 38.78 | 237.70 | 0.7119 | -670.0 | -551.4 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -16.77 | 60.07 | 38.46 | 237.44 | 0.7089 | -343.0 | -344.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
