SDO HMI 2014-09-16 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.71 | 162.41 | 9.07 | 90.20 | 12.62 | 353.01 | -26.40 | 76.17 | 0.4477 | -396.7 | -362.7 | |
|
previous
or next observation for the same group /

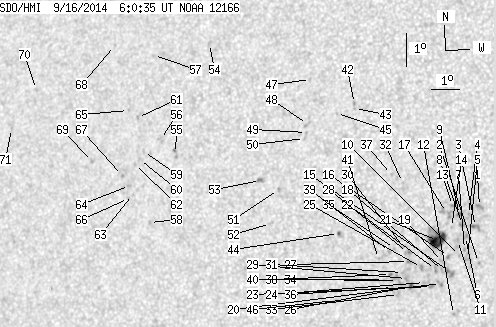

back to the solar disc SDO HMI 2014-09-16 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.47 | 0.00 | 1.87 | 13.25 | 356.85 | -22.57 | 72.92 | 0.3924 | -862.0 | -777.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 11.55 | 356.96 | -22.45 | 77.15 | 0.3853 | -860.0 | -730.5 | |
| 0.00 | 4.36 | 0.00 | 2.34 | 12.63 | 356.77 | -22.64 | 74.49 | 0.3915 | -913.0 | -849.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 12.99 | 356.50 | -22.91 | 73.75 | 0.3968 | -808.0 | -685.6 | |
| 0.00 | 4.89 | 0.00 | 2.63 | 11.69 | 356.59 | -22.82 | 76.96 | 0.3916 | -593.0 | -750.4 | |
| 0.00 | 2.49 | 0.00 | 1.34 | 12.32 | 356.46 | -22.95 | 75.43 | 0.3953 | -909.0 | -806.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 11.92 | 356.47 | -22.95 | 76.42 | 0.3941 | -1023.0 | -863.6 | |
| 0.00 | 3.56 | 0.00 | 1.92 | 12.68 | 356.33 | -23.08 | 74.60 | 0.3984 | -921.0 | -839.3 | |
| 0.44 | 1.87 | 0.24 | 1.01 | 12.97 | 356.20 | -23.21 | 73.94 | 0.4014 | -1037.6 | -867.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 11.73 | 356.31 | -23.10 | 76.95 | 0.3959 | -831.0 | -691.0 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 12.18 | 356.21 | -23.20 | 75.88 | 0.3988 | -874.0 | -763.1 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 9.95 | 356.26 | -23.15 | 81.49 | 0.3933 | -733.0 | -558.9 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 13.23 | 355.94 | -23.47 | 73.43 | 0.4063 | -810.0 | -696.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 12.57 | 355.97 | -23.44 | 75.04 | 0.4036 | -837.0 | -641.0 | |
| 0.00 | 5.78 | 0.00 | 3.12 | 11.21 | 356.06 | -23.35 | 78.36 | 0.3987 | -986.0 | -898.0 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 11.69 | 355.95 | -23.46 | 77.21 | 0.4015 | -908.0 | -740.1 | |
| 0.00 | 7.02 | 0.00 | 3.81 | 13.01 | 355.76 | -23.65 | 74.06 | 0.4083 | -694.0 | -702.6 | |
| 0.00 | 2.13 | 0.00 | 1.15 | 11.25 | 355.79 | -23.63 | 78.34 | 0.4030 | -704.0 | -668.3 | |
| 0.00 | 2.40 | 0.00 | 1.30 | 11.53 | 355.76 | -23.65 | 77.67 | 0.4040 | -832.0 | -674.1 | |
| 0.00 | 2.58 | 0.00 | 1.39 | 10.86 | 355.75 | -23.66 | 79.32 | 0.4028 | -939.0 | -870.2 | |
| 14.67 | 27.55 | 7.95 | 14.95 | 12.15 | 355.54 | -23.87 | 76.23 | 0.4091 | -1117.0 | -419.2 | |
| 0.00 | 2.84 | 0.00 | 1.54 | 11.27 | 355.55 | -23.86 | 78.37 | 0.4068 | -949.0 | -748.5 | |
| 0.00 | 2.13 | 0.00 | 1.16 | 10.75 | 355.46 | -23.95 | 79.67 | 0.4071 | -881.0 | -736.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 10.86 | 355.21 | -24.20 | 79.47 | 0.4112 | -810.0 | -657.3 | |
| 0.00 | 2.93 | 0.00 | 1.59 | 11.31 | 355.07 | -24.34 | 78.43 | 0.4142 | -1039.0 | -801.9 | |
| 1.16 | 2.58 | 0.63 | 1.40 | 10.72 | 354.75 | -24.66 | 79.94 | 0.4181 | -962.9 | -823.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 11.47 | 354.62 | -24.79 | 78.19 | 0.4216 | -956.0 | -807.8 | |
| 0.00 | 2.76 | 0.00 | 1.50 | 11.74 | 354.56 | -24.85 | 77.58 | 0.4231 | -852.0 | -751.2 | |
| 0.00 | 3.11 | 0.00 | 1.70 | 10.95 | 354.60 | -24.81 | 79.42 | 0.4209 | -857.0 | -743.1 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 11.91 | 354.41 | -25.00 | 77.22 | 0.4259 | -633.0 | -515.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 11.13 | 354.45 | -24.96 | 79.05 | 0.4236 | -829.0 | -725.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 13.85 | 354.17 | -25.24 | 72.89 | 0.4351 | -711.0 | -546.6 | |
| 0.00 | 2.58 | 0.00 | 1.41 | 10.46 | 354.37 | -25.04 | 80.65 | 0.4236 | -758.0 | -617.4 | |
| 0.00 | 7.02 | 0.00 | 3.84 | 10.88 | 354.30 | -25.11 | 79.68 | 0.4254 | -565.0 | -646.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 11.84 | 354.11 | -25.30 | 77.50 | 0.4303 | -588.0 | -486.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 10.66 | 354.15 | -25.26 | 80.23 | 0.4274 | -677.0 | -537.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 14.07 | 353.76 | -25.65 | 72.58 | 0.4419 | -635.0 | -443.3 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 11.05 | 354.05 | -25.36 | 79.35 | 0.4296 | -784.0 | -692.3 | |
| 0.00 | 1.60 | 0.00 | 0.88 | 11.74 | 353.95 | -25.46 | 77.78 | 0.4325 | -782.0 | -545.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 10.88 | 353.82 | -25.59 | 79.78 | 0.4328 | -592.0 | -452.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 11.51 | 353.59 | -25.82 | 78.41 | 0.4374 | -730.0 | -572.1 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 16.15 | 352.19 | -27.22 | 68.95 | 0.4727 | -825.0 | -657.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 16.00 | 352.22 | -27.20 | 69.25 | 0.4717 | -962.0 | -594.5 | |
| 0.44 | 1.87 | 0.25 | 1.04 | 12.19 | 352.14 | -27.27 | 77.33 | 0.4609 | 903.6 | 575.9 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 15.82 | 351.61 | -27.80 | 69.94 | 0.4797 | -726.0 | -561.7 | |
| 0.00 | 1.78 | 0.00 | 0.99 | 10.16 | 352.24 | -27.17 | 81.72 | 0.4560 | -699.0 | -503.4 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 16.80 | 350.52 | -28.89 | 68.54 | 0.4989 | -469.0 | -477.2 | |
| 0.00 | 2.49 | 0.00 | 1.41 | 15.42 | 350.63 | -28.78 | 71.19 | 0.4923 | -554.0 | -515.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 15.18 | 350.63 | -28.78 | 71.68 | 0.4914 | -576.0 | -456.9 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 14.99 | 350.59 | -28.82 | 72.07 | 0.4914 | -653.0 | -506.6 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 13.40 | 349.89 | -29.52 | 75.51 | 0.4971 | 888.0 | 764.3 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 12.35 | 349.74 | -29.68 | 77.64 | 0.4971 | 749.0 | 647.1 | |
| 0.00 | 3.11 | 0.00 | 1.79 | 13.63 | 349.21 | -30.20 | 75.26 | 0.5075 | 941.0 | 738.3 | |
| 0.00 | 2.76 | 0.00 | 1.64 | 17.67 | 346.64 | -32.77 | 68.72 | 0.5556 | 548.0 | 388.9 | |
| 0.00 | 2.76 | 0.00 | 1.64 | 14.25 | 346.00 | -33.41 | 75.01 | 0.5546 | 607.0 | 709.9 | |
| 0.00 | 2.84 | 0.00 | 1.70 | 14.64 | 345.37 | -34.04 | 74.49 | 0.5642 | 658.0 | 631.9 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 17.16 | 344.62 | -34.79 | 70.36 | 0.5811 | 690.0 | 514.9 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 12.11 | 345.37 | -34.05 | 78.98 | 0.5598 | 733.0 | 500.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 14.23 | 344.80 | -34.61 | 75.34 | 0.5712 | 720.0 | 565.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 13.98 | 344.69 | -34.72 | 75.80 | 0.5722 | 783.0 | 635.4 | |
| 0.00 | 1.42 | 0.00 | 0.86 | 15.24 | 344.39 | -35.02 | 73.70 | 0.5791 | 764.0 | 605.6 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 13.82 | 344.53 | -34.88 | 76.12 | 0.5742 | 753.0 | 589.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 12.91 | 344.61 | -34.80 | 77.69 | 0.5716 | 711.0 | 633.5 | |
| 0.00 | 1.69 | 0.00 | 1.02 | 13.17 | 344.45 | -34.96 | 77.26 | 0.5742 | 806.0 | 633.7 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 15.43 | 344.01 | -35.40 | 73.48 | 0.5847 | 597.0 | 442.9 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 12.77 | 344.48 | -34.93 | 77.94 | 0.5732 | 705.0 | 602.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 13.45 | 344.14 | -35.27 | 76.83 | 0.5790 | 781.0 | 666.5 | |
| 0.00 | 1.07 | 0.00 | 0.66 | 17.36 | 343.05 | -36.36 | 70.55 | 0.6023 | 578.0 | 408.6 | |
| 0.00 | 1.78 | 0.00 | 1.09 | 13.79 | 342.93 | -36.48 | 76.48 | 0.5961 | 454.0 | 384.5 | |
| 0.00 | 1.42 | 0.00 | 0.91 | 15.81 | 340.30 | -39.11 | 73.76 | 0.6344 | 697.0 | 552.9 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 14.55 | 339.57 | -39.85 | 75.86 | 0.6418 | 643.0 | 524.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
