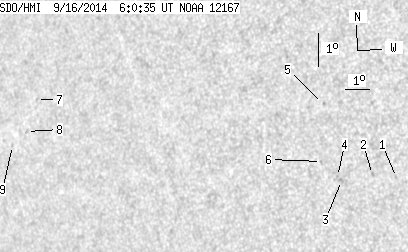

SDO HMI 2014-09-16 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.41 | 0.00 | 6.19 | 8.04 | 338.48 | -40.93 | 86.00 | 0.6484 | -277.7 | -268.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.48 | 7.83 | 344.91 | -34.50 | 86.64 | 0.5643 | -505.0 | -511.4 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 7.86 | 344.01 | -35.40 | 86.55 | 0.5771 | -675.0 | -566.8 | |
| 0.00 | 2.04 | 0.00 | 1.26 | 7.59 | 342.87 | -36.54 | 86.95 | 0.5932 | -799.0 | -669.0 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 7.70 | 342.71 | -36.71 | 86.76 | 0.5955 | -707.0 | -600.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 9.85 | 341.88 | -37.53 | 83.16 | 0.6067 | -422.0 | -487.6 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 8.11 | 342.05 | -37.36 | 86.05 | 0.6044 | -538.0 | -495.9 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 8.96 | 329.90 | -49.51 | 84.35 | 0.7572 | 479.0 | 400.9 | |
| 0.00 | 1.42 | 0.00 | 1.08 | 7.96 | 329.60 | -49.81 | 85.66 | 0.7610 | 450.0 | 342.8 | |
| 0.00 | 0.62 | 0.00 | 0.48 | 7.48 | 329.01 | -50.40 | 86.25 | 0.7679 | 218.0 | 236.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
