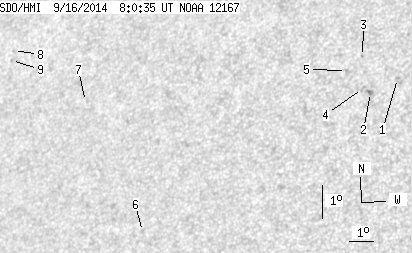

SDO HMI 2014-09-16 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.11 | 0.00 | 7.75 | 7.28 | 339.08 | -39.23 | 87.16 | 0.6271 | -251.0 | -368.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.96 | 8.07 | 343.93 | -34.39 | 86.21 | 0.5626 | -771.0 | -640.4 | |
| 0.00 | 2.76 | 0.00 | 1.67 | 7.58 | 342.97 | -35.35 | 87.03 | 0.5764 | -779.0 | -737.4 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 8.64 | 342.56 | -35.75 | 85.18 | 0.5819 | -611.0 | -516.8 | |
| 0.00 | 2.22 | 0.00 | 1.35 | 7.68 | 342.66 | -35.65 | 86.84 | 0.5807 | -584.0 | -557.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 8.18 | 342.01 | -36.31 | 85.97 | 0.5898 | -706.0 | -642.5 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 2.69 | 334.32 | -44.00 | 93.57 | 0.6976 | -32.0 | -84.3 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 6.39 | 331.56 | -46.76 | 88.01 | 0.7267 | 321.0 | 355.5 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 7.61 | 328.07 | -50.24 | 86.09 | 0.7660 | 366.0 | 327.3 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 7.30 | 328.03 | -50.29 | 86.49 | 0.7668 | 537.0 | 453.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
