SDO HMI 2014-09-16 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.51 | 25.67 | 4.56 | 21.02 | -15.98 | 64.55 | 47.88 | 243.61 | 0.7982 | 155.0 | 213.1 | |
|
previous
or next observation for the same group /

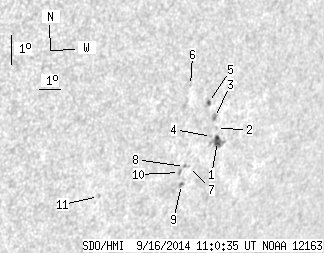

back to the solar disc SDO HMI 2014-09-16 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.62 | 10.39 | 3.84 | 8.64 | -16.02 | 65.30 | 48.63 | 243.92 | 0.8053 | 606.7 | 465.4 | |
| 0.00 | 1.42 | 0.00 | 1.17 | -15.58 | 65.11 | 48.44 | 244.34 | 0.8018 | 692.0 | 637.1 | |
| 0.00 | 3.11 | 0.00 | 2.55 | -15.20 | 64.90 | 48.23 | 244.69 | 0.7984 | 752.0 | 683.7 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -15.82 | 64.95 | 48.28 | 243.99 | 0.8013 | 704.0 | 622.4 | |
| 0.89 | 3.02 | 0.72 | 2.44 | -14.67 | 64.46 | 47.79 | 245.11 | 0.7922 | 696.3 | 538.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -14.03 | 63.45 | 46.78 | 245.41 | 0.7798 | -543.0 | -393.0 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -16.72 | 64.21 | 47.54 | 242.60 | 0.7980 | -323.0 | -348.7 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -16.70 | 63.97 | 47.30 | 242.51 | 0.7957 | -575.0 | -513.6 | |
| 0.00 | 1.95 | 0.00 | 1.60 | -17.29 | 64.02 | 47.35 | 241.86 | 0.7987 | -604.0 | -465.9 | |
| 0.00 | 1.78 | 0.00 | 1.44 | -16.88 | 63.79 | 47.12 | 242.22 | 0.7948 | -394.0 | -416.5 | |
| 0.00 | 1.60 | 0.00 | 1.22 | -17.33 | 60.28 | 43.61 | 239.89 | 0.7634 | -438.0 | -422.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
