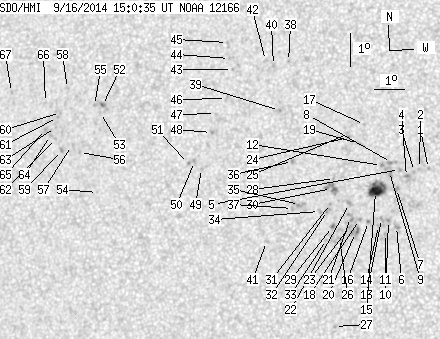

SDO HMI 2014-09-16 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 142.42 | 5.65 | 76.21 | 12.55 | 353.00 | -21.47 | 73.98 | 0.3727 | -336.5 | -414.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.92 | 357.25 | -17.22 | 69.90 | 0.3087 | -928.0 | -710.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.91 | 356.96 | -17.51 | 70.20 | 0.3131 | -759.0 | -627.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 12.82 | 356.80 | -17.67 | 70.63 | 0.3151 | -933.0 | -783.4 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 12.66 | 356.56 | -17.92 | 71.33 | 0.3182 | -1085.0 | -924.5 | |
| 0.00 | 1.86 | 0.00 | 0.98 | 12.86 | 356.31 | -18.16 | 70.92 | 0.3229 | -902.0 | -678.5 | |
| 0.00 | 2.66 | 0.00 | 1.39 | 11.13 | 356.33 | -18.14 | 76.18 | 0.3159 | -902.0 | -746.3 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 12.28 | 356.26 | -18.21 | 72.70 | 0.3213 | -983.0 | -838.6 | |
| 0.00 | 3.20 | 0.00 | 1.68 | 13.06 | 356.04 | -18.43 | 70.55 | 0.3281 | -919.0 | -702.1 | |
| 0.00 | 5.95 | 0.00 | 3.12 | 12.79 | 355.99 | -18.48 | 71.39 | 0.3276 | -594.0 | -724.4 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 11.30 | 356.06 | -18.41 | 75.81 | 0.3208 | -1037.0 | -764.1 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 10.91 | 355.99 | -18.48 | 77.07 | 0.3207 | -967.0 | -742.4 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 12.96 | 355.72 | -18.75 | 71.11 | 0.3326 | -806.0 | -681.6 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 11.36 | 355.83 | -18.64 | 75.79 | 0.3246 | -932.0 | -822.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 11.14 | 355.75 | -18.72 | 76.49 | 0.3253 | -850.0 | -758.3 | |
| 10.30 | 21.04 | 5.40 | 11.04 | 12.16 | 355.58 | -18.89 | 73.53 | 0.3315 | -1073.5 | -791.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 11.25 | 355.42 | -19.05 | 76.35 | 0.3309 | -971.0 | -837.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 14.18 | 355.06 | -19.41 | 68.21 | 0.3485 | -698.0 | -559.1 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 11.30 | 355.12 | -19.35 | 76.36 | 0.3358 | -978.0 | -793.6 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 13.59 | 354.91 | -19.56 | 69.94 | 0.3479 | -743.0 | -592.9 | |
| 0.00 | 6.13 | 0.00 | 3.22 | 10.90 | 355.02 | -19.45 | 77.58 | 0.3363 | -1009.0 | -849.6 | |
| 0.00 | 3.91 | 0.00 | 2.06 | 11.35 | 354.83 | -19.65 | 76.38 | 0.3407 | -754.0 | -813.7 | |
| 0.00 | 2.93 | 0.00 | 1.54 | 11.77 | 354.76 | -19.71 | 75.20 | 0.3430 | -1005.0 | -800.3 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 11.07 | 354.81 | -19.66 | 77.17 | 0.3401 | -932.0 | -781.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 13.76 | 354.57 | -19.90 | 69.75 | 0.3540 | -787.0 | -610.8 | |
| 0.00 | 1.86 | 0.00 | 0.99 | 13.88 | 354.56 | -19.91 | 69.43 | 0.3547 | -733.0 | -560.9 | |
| 0.00 | 1.86 | 0.00 | 0.98 | 10.70 | 354.51 | -19.96 | 78.40 | 0.3439 | -799.0 | -687.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 8.04 | 354.51 | -19.97 | 86.18 | 0.3404 | -815.0 | -663.3 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 12.50 | 354.21 | -20.26 | 73.46 | 0.3542 | -379.0 | -424.9 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 11.05 | 354.26 | -20.21 | 77.50 | 0.3489 | -842.0 | -772.4 | |
| 0.00 | 9.59 | 0.00 | 5.08 | 12.20 | 354.14 | -20.33 | 74.35 | 0.3542 | -648.0 | -722.1 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 11.74 | 354.14 | -20.33 | 75.61 | 0.3527 | -707.0 | -505.0 | |
| 0.00 | 2.49 | 0.00 | 1.32 | 11.53 | 354.06 | -20.41 | 76.25 | 0.3533 | -604.0 | -642.7 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 10.65 | 354.09 | -20.38 | 78.71 | 0.3506 | -553.0 | -464.3 | |
| 0.00 | 1.95 | 0.00 | 1.04 | 11.49 | 353.80 | -20.67 | 76.50 | 0.3573 | -637.0 | -485.3 | |
| 0.00 | 5.42 | 0.00 | 2.88 | 11.67 | 353.13 | -21.35 | 76.32 | 0.3685 | -663.0 | -630.8 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 12.96 | 352.79 | -21.69 | 73.10 | 0.3780 | 876.0 | 701.1 | |
| 0.00 | 1.78 | 0.00 | 0.95 | 11.54 | 352.91 | -21.57 | 76.77 | 0.3716 | -553.0 | -468.0 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 15.98 | 352.34 | -22.13 | 65.90 | 0.3984 | -859.0 | -623.9 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 14.48 | 352.20 | -22.27 | 69.63 | 0.3931 | -800.0 | -735.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 15.84 | 351.85 | -22.62 | 66.63 | 0.4049 | -794.0 | -664.9 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 10.51 | 352.12 | -22.35 | 79.79 | 0.3815 | -725.0 | -601.4 | |
| 0.00 | 1.69 | 0.00 | 0.92 | 15.98 | 351.56 | -22.91 | 66.53 | 0.4098 | -637.0 | -497.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.65 | 350.47 | -24.00 | 68.05 | 0.4240 | -669.0 | -588.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 15.98 | 350.33 | -24.14 | 67.41 | 0.4277 | -629.0 | -522.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 16.46 | 350.20 | -24.28 | 66.43 | 0.4320 | -491.0 | -412.9 | |
| 0.00 | 2.57 | 0.00 | 1.41 | 14.76 | 350.37 | -24.10 | 70.15 | 0.4216 | -672.0 | -450.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 14.29 | 350.05 | -24.42 | 71.42 | 0.4244 | 639.0 | 480.6 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 13.71 | 349.98 | -24.49 | 72.80 | 0.4234 | 951.0 | 812.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.60 | 349.76 | -24.71 | 75.47 | 0.4233 | 823.0 | 639.4 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 12.80 | 349.50 | -24.97 | 75.11 | 0.4278 | 853.0 | 682.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.73 | 349.30 | -25.17 | 75.35 | 0.4306 | 702.0 | 570.1 | |
| 0.44 | 1.86 | 0.25 | 1.05 | 14.33 | 346.12 | -28.35 | 73.19 | 0.4826 | 996.2 | 879.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 14.11 | 346.08 | -28.39 | 73.65 | 0.4826 | 547.0 | 481.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.69 | 346.27 | -28.20 | 78.61 | 0.4740 | 597.0 | 526.7 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 14.31 | 345.84 | -28.63 | 73.33 | 0.4867 | 731.0 | 631.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 12.86 | 345.50 | -28.97 | 76.40 | 0.4879 | 728.0 | 570.8 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 13.05 | 345.19 | -29.28 | 76.09 | 0.4928 | 603.0 | 666.0 | |
| 0.00 | 1.51 | 0.00 | 0.86 | 14.77 | 344.81 | -29.66 | 72.82 | 0.5029 | 680.0 | 544.1 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 12.88 | 344.86 | -29.61 | 76.53 | 0.4973 | 798.0 | 674.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 14.03 | 344.67 | -29.81 | 74.32 | 0.5029 | 831.0 | 723.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 13.87 | 344.58 | -29.89 | 74.66 | 0.5037 | 766.0 | 645.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 13.23 | 344.60 | -29.87 | 75.91 | 0.5019 | 686.0 | 534.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 13.56 | 344.55 | -29.92 | 75.27 | 0.5034 | 761.0 | 664.1 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 13.31 | 344.41 | -30.06 | 75.81 | 0.5049 | 597.0 | 517.9 | |
| 0.00 | 2.04 | 0.00 | 1.17 | 13.48 | 344.21 | -30.27 | 75.54 | 0.5082 | 686.0 | 532.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 14.30 | 344.09 | -30.38 | 73.99 | 0.5119 | 607.0 | 448.4 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 14.52 | 342.82 | -31.66 | 73.98 | 0.5307 | 661.0 | 518.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
