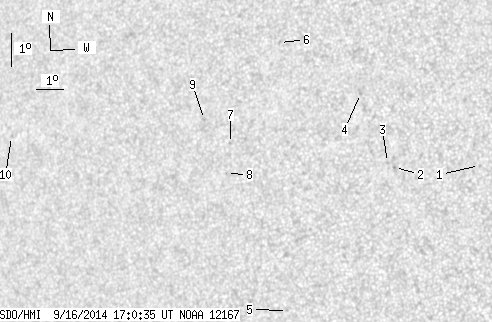

SDO HMI 2014-09-16 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.87 | 0.00 | 5.90 | 8.18 | 339.06 | -34.31 | 85.98 | 0.5607 | -572.4 | -487.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | 7.98 | 345.92 | -27.45 | 86.49 | 0.4592 | -811.0 | -621.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 7.75 | 342.98 | -30.39 | 86.92 | 0.5040 | -923.0 | -840.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 7.89 | 342.72 | -30.65 | 86.64 | 0.5078 | -686.0 | -553.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 9.90 | 341.57 | -31.80 | 82.76 | 0.5254 | -792.0 | -630.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 3.20 | 339.41 | -33.96 | 94.93 | 0.5619 | -613.0 | -441.8 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 11.24 | 338.43 | -34.94 | 80.62 | 0.5716 | -575.0 | -401.7 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 8.07 | 336.96 | -36.41 | 86.13 | 0.5912 | -628.0 | -545.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 7.16 | 336.90 | -36.47 | 87.67 | 0.5925 | -595.0 | -534.9 | |
| 0.00 | 1.51 | 0.00 | 0.94 | 8.72 | 335.90 | -37.47 | 85.02 | 0.6059 | -634.0 | -477.8 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 7.58 | 328.18 | -45.19 | 86.45 | 0.7069 | 533.0 | 460.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
