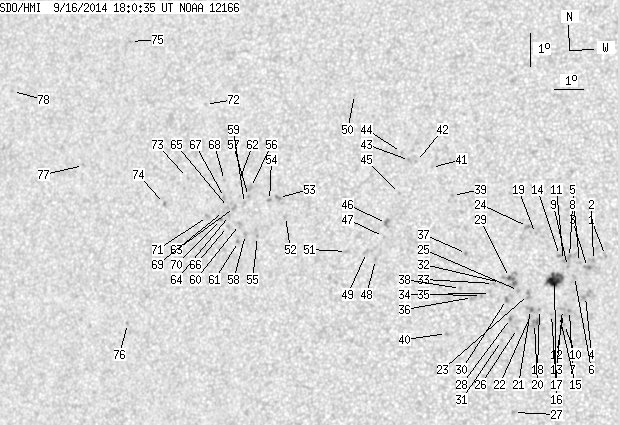

SDO HMI 2014-09-16 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.69 | 160.09 | 6.60 | 85.65 | 12.78 | 351.50 | -21.32 | 73.21 | 0.3704 | -245.8 | -227.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 0.96 | 13.04 | 357.23 | -15.58 | 67.84 | 0.2839 | -850.0 | -687.6 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 12.88 | 356.86 | -15.96 | 68.79 | 0.2888 | -1005.0 | -744.8 | |
| 0.00 | 3.20 | 0.00 | 1.65 | 12.66 | 356.68 | -16.14 | 69.70 | 0.2904 | -1101.0 | -945.9 | |
| 0.00 | 5.86 | 0.00 | 3.03 | 11.78 | 356.67 | -16.15 | 72.65 | 0.2865 | -775.0 | -767.5 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 12.80 | 356.41 | -16.40 | 69.50 | 0.2953 | -925.0 | -752.5 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 12.38 | 356.28 | -16.54 | 71.03 | 0.2953 | -794.0 | -711.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 11.34 | 356.18 | -16.63 | 74.52 | 0.2925 | -1088.0 | -931.8 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 12.94 | 356.08 | -16.74 | 69.38 | 0.3012 | -757.0 | -785.2 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 12.67 | 356.03 | -16.78 | 70.30 | 0.3005 | -932.0 | -811.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 10.92 | 356.05 | -16.77 | 76.05 | 0.2932 | -957.0 | -803.6 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.85 | 355.89 | -16.92 | 69.87 | 0.3036 | -895.0 | -712.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 11.25 | 355.99 | -16.82 | 74.98 | 0.2952 | -720.0 | -767.5 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 11.37 | 355.96 | -16.86 | 74.61 | 0.2962 | -928.0 | -859.3 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 12.99 | 355.75 | -17.06 | 69.54 | 0.3065 | -878.0 | -679.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 11.18 | 355.87 | -16.95 | 75.28 | 0.2970 | -985.0 | -817.8 | |
| 11.98 | 16.78 | 6.23 | 8.72 | 12.26 | 355.64 | -17.17 | 71.95 | 0.3048 | -1125.9 | -823.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 11.20 | 355.61 | -17.20 | 75.39 | 0.3012 | -891.0 | -757.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 11.34 | 355.22 | -17.60 | 75.21 | 0.3080 | -1062.0 | -757.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.63 | 354.93 | -17.89 | 68.39 | 0.3225 | -762.0 | -579.2 | |
| 0.00 | 5.86 | 0.00 | 3.05 | 10.91 | 355.08 | -17.73 | 76.66 | 0.3087 | -880.0 | -877.0 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 11.33 | 354.93 | -17.89 | 75.43 | 0.3126 | -998.0 | -891.8 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 11.09 | 354.91 | -17.91 | 76.21 | 0.3121 | -936.0 | -726.7 | |
| 0.00 | 4.62 | 0.00 | 2.41 | 11.78 | 354.83 | -17.98 | 74.09 | 0.3157 | -897.0 | -708.0 | |
| 0.00 | 2.93 | 0.00 | 1.53 | 13.83 | 354.65 | -18.17 | 68.06 | 0.3278 | -954.0 | -769.1 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 11.89 | 354.50 | -18.31 | 73.98 | 0.3213 | -831.0 | -688.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 10.74 | 354.54 | -18.27 | 77.50 | 0.3169 | -833.0 | -633.5 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 8.21 | 354.55 | -18.26 | 85.55 | 0.3125 | -801.0 | -645.9 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 11.03 | 354.30 | -18.52 | 76.72 | 0.3217 | -791.0 | -708.6 | |
| 0.71 | 11.89 | 0.37 | 6.23 | 12.27 | 354.18 | -18.63 | 73.06 | 0.3278 | -770.2 | -753.8 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 11.60 | 354.13 | -18.68 | 75.09 | 0.3262 | -842.0 | -739.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 10.36 | 354.05 | -18.77 | 78.92 | 0.3239 | -768.0 | -586.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 12.11 | 353.90 | -18.92 | 73.73 | 0.3316 | -638.0 | -466.9 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 12.07 | 353.68 | -19.14 | 73.99 | 0.3350 | -668.0 | -489.8 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 11.76 | 353.60 | -19.22 | 74.94 | 0.3351 | -400.0 | -508.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 11.69 | 353.31 | -19.50 | 75.32 | 0.3395 | -899.0 | -743.9 | |
| 0.00 | 3.82 | 0.00 | 2.01 | 11.62 | 353.02 | -19.79 | 75.69 | 0.3438 | -594.0 | -579.8 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 12.94 | 352.72 | -20.09 | 72.16 | 0.3533 | 1019.0 | 794.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 11.88 | 352.61 | -20.21 | 75.19 | 0.3511 | -705.0 | -621.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.68 | 352.10 | -20.71 | 67.99 | 0.3706 | -719.0 | -544.8 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 10.50 | 352.25 | -20.57 | 79.23 | 0.3531 | -868.0 | -722.3 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 15.50 | 351.32 | -21.50 | 66.58 | 0.3866 | -733.0 | -580.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.66 | 350.79 | -22.02 | 66.61 | 0.3951 | -754.0 | -615.5 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 15.68 | 350.55 | -22.26 | 66.75 | 0.3987 | -696.0 | -653.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.91 | 350.26 | -22.56 | 66.44 | 0.4042 | -730.0 | -638.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.66 | 350.33 | -22.49 | 69.36 | 0.3971 | -736.0 | -527.6 | |
| 0.00 | 3.73 | 0.00 | 2.01 | 13.73 | 349.99 | -22.83 | 71.84 | 0.3983 | 966.0 | 810.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 13.33 | 349.93 | -22.89 | 72.85 | 0.3978 | 793.0 | 579.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 12.63 | 349.73 | -23.09 | 74.70 | 0.3985 | 862.0 | 707.2 | |
| 0.00 | 2.57 | 0.00 | 1.39 | 12.82 | 349.40 | -23.41 | 74.37 | 0.4040 | 781.0 | 638.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 17.60 | 348.42 | -24.39 | 64.06 | 0.4396 | -753.0 | -598.5 | |
| 0.00 | 2.31 | 0.00 | 1.25 | 12.82 | 348.73 | -24.09 | 74.69 | 0.4143 | 894.0 | 551.6 | |
| 0.00 | 1.86 | 0.00 | 1.03 | 13.77 | 346.53 | -26.28 | 73.50 | 0.4504 | 748.0 | 574.9 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 14.34 | 346.22 | -26.59 | 72.43 | 0.4568 | 987.0 | 857.0 | |
| 0.00 | 1.69 | 0.00 | 0.94 | 14.23 | 345.92 | -26.89 | 72.79 | 0.4609 | 822.0 | 685.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 13.12 | 345.64 | -27.18 | 75.28 | 0.4618 | 784.0 | 626.2 | |
| 0.00 | 2.75 | 0.00 | 1.54 | 14.59 | 345.21 | -27.61 | 72.36 | 0.4725 | 758.0 | 634.9 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.31 | 345.18 | -27.64 | 72.94 | 0.4721 | 850.0 | 780.4 | |
| 0.00 | 2.75 | 0.00 | 1.54 | 13.15 | 345.22 | -27.60 | 75.35 | 0.4682 | 848.0 | 621.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 14.09 | 345.06 | -27.75 | 73.45 | 0.4731 | 778.0 | 682.2 | |
| 0.00 | 3.28 | 0.00 | 1.84 | 13.45 | 344.97 | -27.84 | 74.83 | 0.4726 | 815.0 | 701.0 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 12.93 | 345.00 | -27.82 | 75.90 | 0.4709 | 731.0 | 647.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 14.71 | 344.77 | -28.05 | 72.28 | 0.4794 | 639.0 | 642.8 | |
| 0.00 | 2.49 | 0.00 | 1.40 | 13.95 | 344.73 | -28.08 | 73.87 | 0.4776 | 889.0 | 667.5 | |
| 0.00 | 1.86 | 0.00 | 1.05 | 13.70 | 344.59 | -28.23 | 74.44 | 0.4790 | 857.0 | 750.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 13.94 | 344.52 | -28.29 | 73.97 | 0.4806 | 644.0 | 596.2 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 13.36 | 344.56 | -28.26 | 75.15 | 0.4785 | 727.0 | 624.0 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 14.23 | 344.34 | -28.48 | 73.44 | 0.4841 | 718.0 | 652.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.75 | 344.27 | -28.55 | 72.43 | 0.4867 | 624.0 | 473.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 13.81 | 344.36 | -28.45 | 74.30 | 0.4826 | 694.0 | 622.8 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.56 | 344.29 | -28.53 | 74.83 | 0.4830 | 743.0 | 635.4 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 13.62 | 343.82 | -29.00 | 74.86 | 0.4900 | 699.0 | 590.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 17.01 | 343.23 | -29.59 | 68.46 | 0.5096 | 634.0 | 410.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 14.76 | 342.94 | -29.87 | 72.92 | 0.5059 | 603.0 | 430.2 | |
| 0.00 | 1.51 | 0.00 | 0.87 | 13.92 | 342.24 | -30.58 | 74.78 | 0.5137 | 673.0 | 582.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 18.76 | 340.11 | -32.70 | 66.77 | 0.5589 | 711.0 | 599.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 10.23 | 341.38 | -31.44 | 82.10 | 0.5203 | -655.0 | -523.2 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 14.88 | 339.10 | -33.71 | 73.95 | 0.5603 | 462.0 | 350.3 | |
| 0.00 | 1.33 | 0.00 | 0.83 | 16.94 | 335.96 | -36.86 | 71.38 | 0.6077 | 149.0 | 260.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
