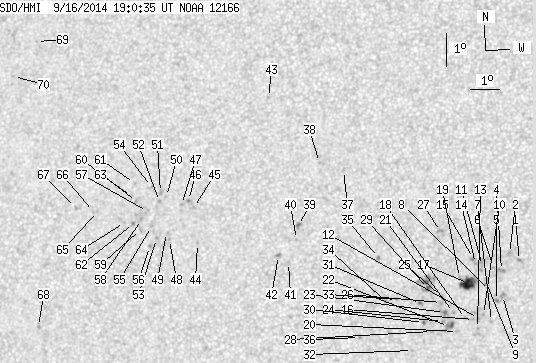

SDO HMI 2014-09-16 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.90 | 144.87 | 6.17 | 77.16 | 12.75 | 351.78 | -20.48 | 72.72 | 0.3574 | -221.2 | -247.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 0.91 | 13.00 | 357.26 | -15.00 | 67.29 | 0.2746 | -1073.0 | -854.0 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 13.21 | 356.93 | -15.34 | 67.01 | 0.2809 | -835.0 | -669.2 | |
| 0.00 | 2.84 | 0.00 | 1.46 | 11.93 | 356.78 | -15.48 | 71.54 | 0.2766 | -1020.0 | -830.5 | |
| 0.00 | 3.11 | 0.00 | 1.60 | 12.68 | 356.70 | -15.56 | 69.03 | 0.2815 | -1078.0 | -951.8 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 11.77 | 356.60 | -15.67 | 72.26 | 0.2788 | -1045.0 | -885.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.77 | 356.44 | -15.82 | 69.03 | 0.2860 | -952.0 | -700.0 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 11.13 | 356.47 | -15.79 | 74.60 | 0.2782 | -897.0 | -735.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.07 | 356.36 | -15.91 | 71.47 | 0.2839 | -920.0 | -710.5 | |
| 0.00 | 3.20 | 0.00 | 1.65 | 12.31 | 356.25 | -16.02 | 70.77 | 0.2868 | -931.0 | -827.7 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 11.34 | 356.21 | -16.06 | 74.11 | 0.2832 | -1030.0 | -839.4 | |
| 0.00 | 3.37 | 0.00 | 1.75 | 12.82 | 356.09 | -16.18 | 69.24 | 0.2918 | -846.0 | -734.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 11.21 | 356.05 | -16.21 | 74.66 | 0.2852 | -1001.0 | -769.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.91 | 356.04 | -16.22 | 75.72 | 0.2844 | -1038.0 | -785.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.87 | 355.86 | -16.41 | 69.31 | 0.2957 | -796.0 | -642.5 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 13.02 | 355.78 | -16.48 | 68.90 | 0.2976 | -851.0 | -649.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 11.17 | 355.90 | -16.37 | 74.90 | 0.2876 | -981.0 | -808.6 | |
| 10.92 | 14.73 | 5.66 | 7.64 | 12.26 | 355.67 | -16.59 | 71.47 | 0.2956 | -1170.6 | -891.5 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 11.20 | 355.64 | -16.62 | 75.02 | 0.2918 | -871.0 | -713.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 12.43 | 355.37 | -16.89 | 71.19 | 0.3011 | -205.0 | -229.2 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 10.80 | 355.41 | -16.86 | 76.52 | 0.2942 | -876.0 | -682.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.36 | 355.24 | -17.02 | 74.74 | 0.2988 | -1087.0 | -895.4 | |
| 0.00 | 6.30 | 0.00 | 3.27 | 10.94 | 355.11 | -17.15 | 76.24 | 0.2995 | -982.0 | -920.7 | |
| 0.00 | 4.26 | 0.00 | 2.21 | 11.35 | 354.95 | -17.31 | 74.98 | 0.3034 | -1070.0 | -874.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.08 | 354.91 | -17.36 | 75.90 | 0.3032 | -869.0 | -766.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 11.83 | 354.83 | -17.44 | 73.53 | 0.3072 | -952.0 | -816.5 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 11.65 | 354.84 | -17.42 | 74.10 | 0.3063 | -863.0 | -728.4 | |
| 0.00 | 3.20 | 0.00 | 1.67 | 13.80 | 354.66 | -17.61 | 67.63 | 0.3190 | -880.0 | -780.9 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 10.77 | 354.57 | -17.69 | 77.11 | 0.3076 | -892.0 | -677.5 | |
| 0.98 | 16.86 | 0.51 | 8.80 | 12.06 | 354.39 | -17.87 | 73.15 | 0.3149 | -1119.5 | -718.2 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 11.03 | 354.30 | -17.97 | 76.44 | 0.3128 | -891.0 | -787.8 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 11.60 | 354.16 | -18.10 | 74.74 | 0.3168 | -879.0 | -755.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 10.17 | 353.99 | -18.27 | 79.30 | 0.3154 | -769.0 | -644.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 11.69 | 353.38 | -18.88 | 74.96 | 0.3296 | -864.0 | -648.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 11.61 | 353.03 | -19.24 | 75.39 | 0.3350 | -823.0 | -658.9 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 12.93 | 352.70 | -19.56 | 71.81 | 0.3450 | 971.0 | 792.4 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 10.50 | 352.26 | -20.01 | 79.03 | 0.3442 | -744.0 | -667.6 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 15.52 | 351.30 | -20.96 | 66.07 | 0.3788 | -742.0 | -509.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 15.73 | 350.47 | -21.79 | 66.25 | 0.3921 | -727.0 | -567.8 | |
| 0.00 | 2.84 | 0.00 | 1.53 | 13.79 | 349.97 | -22.30 | 71.38 | 0.3905 | 1003.0 | 830.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.36 | 349.94 | -22.32 | 72.46 | 0.3892 | 820.0 | 660.4 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 12.66 | 349.74 | -22.52 | 74.35 | 0.3898 | 756.0 | 604.3 | |
| 0.00 | 2.22 | 0.00 | 1.20 | 12.85 | 349.39 | -22.88 | 74.04 | 0.3959 | 827.0 | 681.2 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 17.63 | 348.49 | -23.77 | 63.51 | 0.4310 | -743.0 | -544.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 13.08 | 346.62 | -25.65 | 74.78 | 0.4388 | 749.0 | 574.8 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 14.16 | 346.35 | -25.91 | 72.49 | 0.4461 | 899.0 | 691.7 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 14.36 | 346.15 | -26.11 | 72.14 | 0.4498 | 1038.0 | 904.3 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 14.23 | 345.93 | -26.34 | 72.54 | 0.4527 | 833.0 | 691.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 13.15 | 345.64 | -26.62 | 75.01 | 0.4536 | 821.0 | 657.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 13.36 | 345.51 | -26.75 | 74.61 | 0.4561 | 611.0 | 596.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 14.44 | 345.38 | -26.88 | 72.33 | 0.4615 | 677.0 | 591.9 | |
| 0.00 | 2.84 | 0.00 | 1.59 | 14.55 | 345.15 | -27.11 | 72.20 | 0.4651 | 805.0 | 659.5 | |
| 0.00 | 1.69 | 0.00 | 0.94 | 14.28 | 345.16 | -27.11 | 72.78 | 0.4642 | 849.0 | 739.9 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 13.16 | 345.19 | -27.07 | 75.16 | 0.4604 | 858.0 | 745.3 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 14.72 | 344.82 | -27.45 | 72.01 | 0.4706 | 749.0 | 595.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 13.51 | 344.97 | -27.29 | 74.49 | 0.4646 | 982.0 | 797.4 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 12.90 | 344.98 | -27.29 | 75.78 | 0.4629 | 690.0 | 618.8 | |
| 0.00 | 2.13 | 0.00 | 1.19 | 13.96 | 344.78 | -27.49 | 73.63 | 0.4688 | 742.0 | 686.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 13.70 | 344.60 | -27.66 | 74.23 | 0.4706 | 919.0 | 808.5 | |
| 0.00 | 2.22 | 0.00 | 1.24 | 13.40 | 344.60 | -27.66 | 74.86 | 0.4698 | 717.0 | 602.0 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 14.24 | 344.35 | -27.91 | 73.21 | 0.4758 | 784.0 | 683.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 14.78 | 344.21 | -28.05 | 72.16 | 0.4797 | 670.0 | 513.8 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 13.57 | 344.34 | -27.93 | 74.61 | 0.4742 | 781.0 | 636.1 | |
| 0.00 | 2.22 | 0.00 | 1.25 | 14.38 | 344.16 | -28.10 | 73.00 | 0.4791 | 554.0 | 464.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 13.58 | 344.02 | -28.25 | 74.70 | 0.4789 | 492.0 | 456.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 13.86 | 343.02 | -29.24 | 74.48 | 0.4942 | 488.0 | 478.0 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 13.85 | 342.88 | -29.38 | 74.55 | 0.4962 | 636.0 | 530.8 | |
| 0.00 | 1.51 | 0.00 | 0.87 | 13.93 | 342.23 | -30.04 | 74.60 | 0.5059 | 638.0 | 526.8 | |
| 0.00 | 1.51 | 0.00 | 0.87 | 10.26 | 341.36 | -30.90 | 81.98 | 0.5124 | -741.0 | -553.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 18.88 | 339.91 | -32.35 | 66.41 | 0.5546 | 559.0 | 490.7 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 17.76 | 339.28 | -32.98 | 68.64 | 0.5588 | 636.0 | 496.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
