SDO HMI 2014-09-16 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.02 | 141.80 | 9.33 | 75.05 | 12.88 | 352.12 | -19.59 | 71.82 | 0.3443 | -344.5 | -293.0 | |
|
previous
or next observation for the same group /

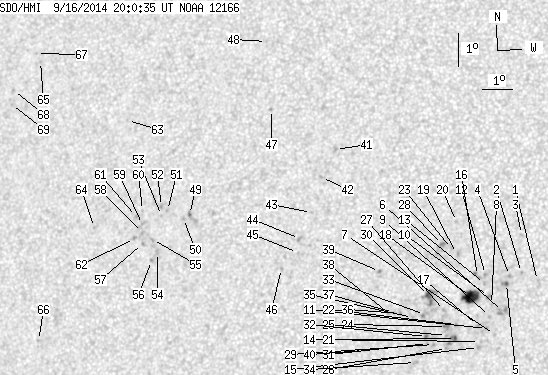

back to the solar disc SDO HMI 2014-09-16 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.27 | 12.83 | 357.77 | -13.94 | 66.55 | 0.2572 | -794.0 | -584.3 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.05 | 357.25 | -14.46 | 66.44 | 0.2666 | -957.0 | -817.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 14.20 | 357.18 | -14.53 | 62.61 | 0.2752 | -759.0 | -579.6 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 12.95 | 356.87 | -14.84 | 67.28 | 0.2718 | -1037.0 | -806.6 | |
| 0.62 | 3.73 | 0.32 | 1.92 | 12.71 | 356.79 | -14.92 | 68.23 | 0.2717 | -1122.9 | -875.0 | |
| 0.00 | 5.50 | 0.00 | 2.83 | 11.86 | 356.71 | -15.00 | 71.33 | 0.2686 | -706.0 | -896.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.16 | 356.49 | -15.22 | 74.07 | 0.2690 | -928.0 | -701.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 12.06 | 356.35 | -15.36 | 70.98 | 0.2753 | -893.0 | -671.7 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 11.69 | 356.30 | -15.41 | 72.31 | 0.2743 | -836.0 | -722.1 | |
| 0.00 | 2.31 | 0.00 | 1.19 | 12.30 | 356.24 | -15.47 | 70.27 | 0.2782 | -1044.0 | -818.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 11.33 | 356.23 | -15.48 | 73.67 | 0.2740 | -1035.0 | -909.5 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 12.96 | 356.10 | -15.61 | 68.17 | 0.2838 | -901.0 | -788.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.69 | 356.09 | -15.62 | 69.10 | 0.2825 | -1011.0 | -832.2 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 10.93 | 356.03 | -15.68 | 75.26 | 0.2757 | -529.0 | -593.5 | |
| 0.00 | 2.22 | 0.00 | 1.14 | 10.75 | 356.00 | -15.71 | 75.92 | 0.2754 | -852.0 | -745.6 | |
| 0.00 | 3.28 | 0.00 | 1.70 | 12.92 | 355.85 | -15.86 | 68.58 | 0.2875 | -614.0 | -690.3 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 11.41 | 355.94 | -15.77 | 73.63 | 0.2790 | -884.0 | -748.8 | |
| 14.02 | 18.64 | 7.25 | 9.64 | 12.28 | 355.66 | -16.05 | 70.91 | 0.2871 | -1129.5 | -667.5 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 13.56 | 355.13 | -16.58 | 67.29 | 0.3021 | -607.0 | -739.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 14.53 | 355.05 | -16.66 | 64.40 | 0.3090 | -819.0 | -606.3 | |
| 0.80 | 5.68 | 0.41 | 2.94 | 10.99 | 355.26 | -16.45 | 75.59 | 0.2884 | -1146.6 | -897.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.42 | 355.23 | -16.48 | 74.18 | 0.2903 | -945.0 | -877.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 13.71 | 354.95 | -16.76 | 67.02 | 0.3056 | -828.0 | -683.1 | |
| 0.00 | 3.64 | 0.00 | 1.89 | 11.35 | 354.95 | -16.76 | 74.62 | 0.2946 | -1074.0 | -926.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.07 | 354.96 | -16.75 | 75.52 | 0.2934 | -924.0 | -729.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 10.68 | 354.99 | -16.72 | 76.83 | 0.2917 | -837.0 | -635.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 11.83 | 354.85 | -16.86 | 73.11 | 0.2979 | -957.0 | -778.2 | |
| 0.00 | 3.02 | 0.00 | 1.57 | 13.82 | 354.65 | -17.06 | 67.00 | 0.3108 | -971.0 | -811.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 10.79 | 354.56 | -17.15 | 76.73 | 0.2989 | -978.0 | -756.2 | |
| 2.22 | 12.51 | 1.15 | 6.51 | 12.26 | 354.31 | -17.40 | 72.16 | 0.3083 | -839.4 | -812.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 10.81 | 354.37 | -17.34 | 76.77 | 0.3021 | -820.0 | -626.5 | |
| 0.00 | 2.22 | 0.00 | 1.15 | 11.02 | 354.32 | -17.39 | 76.11 | 0.3035 | -923.0 | -753.0 | |
| 0.00 | 3.02 | 0.00 | 1.57 | 11.68 | 354.22 | -17.49 | 74.06 | 0.3075 | -711.0 | -712.6 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 10.23 | 354.02 | -17.69 | 78.87 | 0.3062 | -797.0 | -723.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 11.58 | 353.84 | -17.87 | 74.65 | 0.3131 | -648.0 | -521.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 11.69 | 353.44 | -18.27 | 74.59 | 0.3198 | -807.0 | -630.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 11.71 | 353.21 | -18.50 | 74.67 | 0.3235 | -718.0 | -519.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.67 | 353.05 | -18.66 | 74.88 | 0.3259 | -793.0 | -613.7 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 12.93 | 352.67 | -19.04 | 71.45 | 0.3369 | 1002.0 | 815.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 10.52 | 352.32 | -19.39 | 78.70 | 0.3344 | -832.0 | -668.5 | |
| 0.00 | 2.13 | 0.00 | 1.14 | 16.57 | 350.87 | -20.85 | 63.38 | 0.3831 | -878.0 | -659.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 15.70 | 350.49 | -21.22 | 65.85 | 0.3835 | -773.0 | -628.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 14.62 | 350.27 | -21.44 | 68.72 | 0.3812 | -738.0 | -573.0 | |
| 0.00 | 2.04 | 0.00 | 1.09 | 13.82 | 349.95 | -21.76 | 70.98 | 0.3825 | 1025.0 | 829.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.39 | 349.92 | -21.79 | 72.08 | 0.3812 | 654.0 | 601.3 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 12.88 | 349.43 | -22.28 | 73.65 | 0.3868 | 835.0 | 659.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 17.70 | 348.55 | -23.16 | 62.87 | 0.4228 | -785.0 | -659.0 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 19.77 | 348.07 | -23.64 | 58.88 | 0.4426 | 690.0 | 583.4 | |
| 0.36 | 5.06 | 0.20 | 2.79 | 14.37 | 346.15 | -25.56 | 71.87 | 0.4416 | 985.0 | 767.4 | |
| 0.00 | 1.51 | 0.00 | 0.83 | 14.23 | 345.96 | -25.75 | 72.26 | 0.4440 | 876.0 | 704.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 14.45 | 345.38 | -26.33 | 72.07 | 0.4533 | 840.0 | 709.8 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 14.56 | 345.16 | -26.55 | 71.94 | 0.4570 | 789.0 | 689.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 14.29 | 345.19 | -26.52 | 72.51 | 0.4555 | 909.0 | 737.2 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 13.16 | 345.19 | -26.52 | 74.95 | 0.4521 | 848.0 | 707.1 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 13.54 | 344.97 | -26.74 | 74.21 | 0.4565 | 941.0 | 783.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 12.91 | 345.01 | -26.70 | 75.57 | 0.4541 | 727.0 | 611.1 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 13.40 | 344.64 | -27.07 | 74.64 | 0.4610 | 672.0 | 628.4 | |
| 0.00 | 1.51 | 0.00 | 0.84 | 13.74 | 344.60 | -27.11 | 73.94 | 0.4625 | 887.0 | 791.2 | |
| 0.00 | 4.53 | 0.00 | 2.53 | 13.98 | 344.57 | -27.14 | 73.44 | 0.4637 | 792.0 | 689.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 14.40 | 344.52 | -27.20 | 72.57 | 0.4659 | 634.0 | 556.5 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 14.21 | 344.33 | -27.38 | 73.05 | 0.4680 | 738.0 | 670.9 | |
| 0.00 | 1.78 | 0.00 | 0.99 | 13.54 | 344.35 | -27.37 | 74.46 | 0.4658 | 775.0 | 646.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 17.10 | 343.59 | -28.12 | 67.53 | 0.4895 | 568.0 | 473.0 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 13.79 | 342.91 | -28.81 | 74.46 | 0.4877 | 665.0 | 588.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 18.72 | 340.11 | -31.60 | 66.34 | 0.5440 | 791.0 | 633.7 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 10.27 | 341.34 | -30.37 | 81.91 | 0.5045 | -703.0 | -538.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 18.95 | 339.91 | -31.80 | 66.02 | 0.5476 | 571.0 | 469.0 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 17.77 | 339.29 | -32.42 | 68.39 | 0.5513 | 689.0 | 554.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 17.34 | 339.30 | -32.41 | 69.15 | 0.5496 | 504.0 | 388.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
