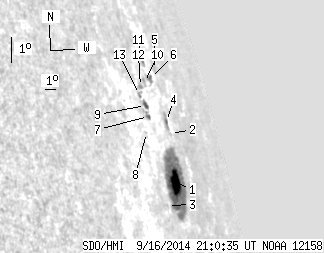

SDO HMI 2014-09-16 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.00 | 130.40 | 38.82 | 267.91 | 15.52 | 88.60 | 77.44 | 284.27 | 0.9715 | 256.7 | 121.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.29 | 98.17 | 29.49 | 202.53 | 14.88 | 88.60 | 77.44 | 283.61 | 0.9717 | 369.4 | 179.0 | |
| 0.00 | 0.27 | 0.00 | 0.59 | 16.28 | 89.71 | 78.55 | 285.12 | 0.9756 | -526.0 | -491.0 | |
| 0.00 | 0.62 | 0.00 | 1.15 | 14.36 | 86.92 | 75.76 | 282.97 | 0.9648 | 297.0 | 281.7 | |
| 1.07 | 6.48 | 2.33 | 14.18 | 16.67 | 89.64 | 78.48 | 285.52 | 0.9752 | -77.5 | -89.4 | |
| 0.00 | 2.75 | 0.00 | 6.23 | 18.24 | 90.21 | 79.05 | 287.17 | 0.9769 | -40.0 | -42.0 | |
| 0.00 | 3.20 | 0.00 | 6.76 | 18.07 | 89.27 | 78.11 | 286.94 | 0.9735 | -428.0 | -437.4 | |
| 1.15 | 5.06 | 2.19 | 9.57 | 17.08 | 87.55 | 76.39 | 285.82 | 0.9668 | 365.9 | 323.7 | |
| 0.00 | 0.27 | 0.00 | 0.48 | 16.67 | 86.77 | 75.61 | 285.35 | 0.9635 | 316.0 | 316.0 | |
| 2.13 | 3.91 | 4.07 | 7.46 | 17.42 | 87.59 | 76.43 | 286.17 | 0.9669 | 291.6 | 215.4 | |
| 0.00 | 2.57 | 0.00 | 5.14 | 18.06 | 88.34 | 77.18 | 286.87 | 0.9698 | -338.0 | -334.9 | |
| 0.36 | 2.04 | 0.74 | 4.24 | 18.65 | 88.95 | 77.79 | 287.51 | 0.9721 | -196.0 | -246.0 | |
| 0.00 | 2.40 | 0.00 | 4.59 | 18.01 | 87.70 | 76.54 | 286.79 | 0.9672 | -248.0 | -216.0 | |
| 0.00 | 2.66 | 0.00 | 4.99 | 17.80 | 87.28 | 76.12 | 286.56 | 0.9655 | 431.0 | 281.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
