SDO HMI 2014-09-16 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.69 | 15.45 | 1.92 | 17.72 | -21.05 | 311.85 | -59.31 | 117.40 | 0.9056 | 53.0 | -189.1 | |
|
previous
or next observation for the same group /

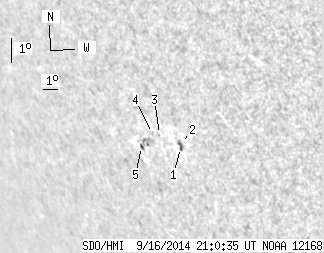

back to the solar disc SDO HMI 2014-09-16 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 4.26 | 0.78 | 4.65 | -20.94 | 313.64 | -57.52 | 117.91 | 0.8934 | 323.4 | 310.0 | |
| 0.27 | -1.00 | 0.29 | -1.00 | -20.80 | 313.73 | -57.43 | 117.79 | 0.8924 | 566.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.60 | -20.63 | 312.54 | -58.61 | 117.19 | 0.9001 | -290.0 | -207.8 | |
| 0.00 | 1.07 | 0.00 | 1.22 | -20.64 | 312.09 | -59.06 | 117.06 | 0.9031 | -246.0 | -221.3 | |
| 0.71 | 9.59 | 0.85 | 11.25 | -21.20 | 311.02 | -60.14 | 117.27 | 0.9114 | -219.1 | -356.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
