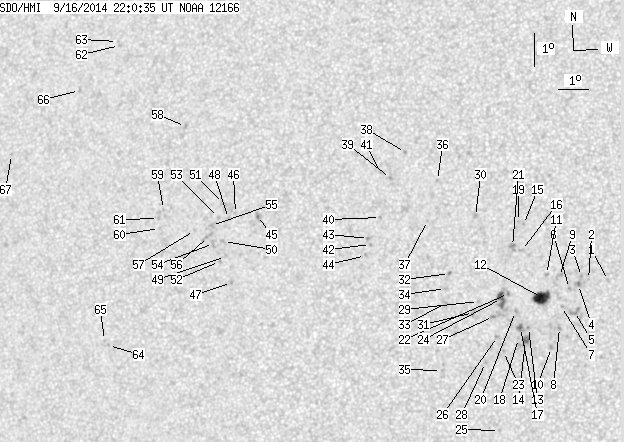

SDO HMI 2014-09-16 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.28 | 147.98 | 9.42 | 78.14 | 12.98 | 351.58 | -19.03 | 71.00 | 0.3359 | -311.9 | -246.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.86 | 357.78 | -12.83 | 64.80 | 0.2403 | -758.0 | -587.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.87 | 357.14 | -13.46 | 65.72 | 0.2501 | -803.0 | -624.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.96 | 356.91 | -13.69 | 65.74 | 0.2541 | -942.0 | -765.1 | |
| 0.00 | 3.02 | 0.00 | 1.55 | 12.71 | 356.83 | -13.77 | 66.75 | 0.2539 | -1167.0 | -936.9 | |
| 0.00 | 4.53 | 0.00 | 2.32 | 11.89 | 356.75 | -13.86 | 69.94 | 0.2506 | -811.0 | -937.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 12.58 | 356.55 | -14.05 | 67.60 | 0.2575 | -935.0 | -829.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.03 | 356.33 | -14.28 | 69.91 | 0.2580 | -879.0 | -616.1 | |
| 0.00 | 2.22 | 0.00 | 1.14 | 11.40 | 356.30 | -14.31 | 72.33 | 0.2554 | -1032.0 | -847.1 | |
| 0.00 | 3.73 | 0.00 | 1.91 | 12.94 | 356.21 | -14.39 | 66.77 | 0.2648 | -572.0 | -736.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 10.79 | 356.07 | -14.53 | 74.87 | 0.2565 | -720.0 | -650.7 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 12.99 | 355.80 | -14.81 | 67.13 | 0.2715 | -872.0 | -622.5 | |
| 12.69 | 16.24 | 6.53 | 8.35 | 12.29 | 355.68 | -14.93 | 69.73 | 0.2695 | -1141.8 | -824.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.37 | 355.31 | -15.29 | 73.38 | 0.2710 | -1068.0 | -883.7 | |
| 0.00 | 6.92 | 0.00 | 3.56 | 10.97 | 355.24 | -15.37 | 74.87 | 0.2707 | -1144.0 | -938.0 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 14.48 | 354.96 | -15.65 | 63.30 | 0.2936 | -838.0 | -664.9 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 13.69 | 354.95 | -15.66 | 65.83 | 0.2887 | -883.0 | -797.6 | |
| 0.80 | 5.06 | 0.41 | 2.61 | 11.36 | 355.06 | -15.55 | 73.63 | 0.2751 | -1094.2 | -863.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 11.02 | 355.01 | -15.59 | 74.85 | 0.2745 | -666.0 | -602.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 14.56 | 354.79 | -15.81 | 63.25 | 0.2967 | -725.0 | -579.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 11.84 | 354.87 | -15.73 | 72.12 | 0.2801 | -961.0 | -792.1 | |
| 0.00 | 4.35 | 0.00 | 2.25 | 13.80 | 354.65 | -15.95 | 65.83 | 0.2939 | -993.0 | -801.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 12.37 | 354.62 | -15.99 | 70.54 | 0.2866 | -980.0 | -865.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 10.62 | 354.56 | -16.05 | 76.63 | 0.2805 | -839.0 | -629.0 | |
| 4.79 | 12.43 | 2.48 | 6.43 | 12.21 | 354.40 | -16.20 | 71.27 | 0.2893 | -911.3 | -753.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.23 | 354.54 | -16.07 | 85.19 | 0.2761 | -753.0 | -597.2 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 11.06 | 354.34 | -16.26 | 75.23 | 0.2855 | -1033.0 | -728.4 | |
| 0.00 | 2.13 | 0.00 | 1.10 | 11.66 | 354.18 | -16.43 | 73.32 | 0.2904 | -891.0 | -692.2 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 10.27 | 354.00 | -16.61 | 78.19 | 0.2886 | -871.0 | -689.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 12.10 | 353.67 | -16.94 | 72.30 | 0.3003 | -619.0 | -490.9 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 14.67 | 353.39 | -17.22 | 64.66 | 0.3182 | -778.0 | -604.2 | |
| 0.00 | 3.64 | 0.00 | 1.89 | 11.76 | 353.53 | -17.08 | 73.51 | 0.3011 | -738.0 | -590.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.91 | 352.68 | -17.93 | 70.61 | 0.3195 | 1007.0 | 786.6 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 12.00 | 352.61 | -18.00 | 73.44 | 0.3167 | -718.0 | -477.3 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 12.45 | 352.58 | -18.03 | 72.08 | 0.3190 | 896.0 | 621.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 9.98 | 352.61 | -18.00 | 79.82 | 0.3106 | -735.0 | -549.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.72 | 352.05 | -18.56 | 63.23 | 0.3446 | -783.0 | -603.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.49 | 351.83 | -18.78 | 66.81 | 0.3405 | -702.0 | -493.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 16.53 | 350.91 | -19.70 | 62.35 | 0.3664 | -882.0 | -757.1 | |
| 0.00 | 1.60 | 0.00 | 0.85 | 15.72 | 350.49 | -20.12 | 64.82 | 0.3674 | -818.0 | -664.3 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.52 | 350.27 | -20.33 | 68.11 | 0.3640 | -779.0 | -646.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.89 | 350.14 | -20.47 | 64.73 | 0.3735 | -661.0 | -530.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 13.69 | 350.02 | -20.59 | 70.50 | 0.3640 | 912.0 | 692.2 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 13.87 | 349.94 | -20.67 | 70.09 | 0.3660 | 913.0 | 791.7 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 13.35 | 349.88 | -20.72 | 71.50 | 0.3646 | 804.0 | 643.2 | |
| 0.00 | 2.49 | 0.00 | 1.36 | 14.39 | 346.15 | -24.46 | 71.23 | 0.4254 | 976.0 | 834.9 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 14.42 | 345.39 | -25.22 | 71.59 | 0.4367 | 806.0 | 649.6 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 12.32 | 345.48 | -25.12 | 76.31 | 0.4287 | 717.0 | 497.0 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 14.25 | 345.17 | -25.44 | 72.07 | 0.4394 | 855.0 | 707.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 13.10 | 345.20 | -25.41 | 74.65 | 0.4352 | 837.0 | 630.6 | |
| 0.00 | 2.66 | 0.00 | 1.47 | 13.55 | 345.08 | -25.53 | 73.69 | 0.4384 | 860.0 | 726.5 | |
| 0.00 | 3.02 | 0.00 | 1.67 | 14.70 | 344.94 | -25.67 | 71.20 | 0.4444 | 582.0 | 542.4 | |
| 0.00 | 1.60 | 0.00 | 0.88 | 12.94 | 345.01 | -25.60 | 75.09 | 0.4376 | 686.0 | 505.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 14.27 | 344.82 | -25.79 | 72.21 | 0.4446 | 847.0 | 657.9 | |
| 0.00 | 3.99 | 0.00 | 2.21 | 13.47 | 344.74 | -25.86 | 74.01 | 0.4432 | 651.0 | 605.4 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 14.01 | 344.61 | -26.00 | 72.87 | 0.4469 | 816.0 | 744.6 | |
| 0.00 | 4.26 | 0.00 | 2.36 | 13.67 | 344.55 | -26.06 | 73.64 | 0.4467 | 727.0 | 700.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 13.83 | 344.04 | -26.56 | 73.52 | 0.4547 | 656.0 | 566.5 | |
| 0.00 | 2.75 | 0.00 | 1.55 | 16.97 | 343.29 | -27.32 | 67.35 | 0.4776 | 638.0 | 397.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 14.40 | 342.88 | -27.72 | 72.79 | 0.4736 | 637.0 | 493.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 13.82 | 342.82 | -27.79 | 74.03 | 0.4728 | 743.0 | 569.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 14.12 | 342.75 | -27.86 | 73.44 | 0.4747 | 704.0 | 566.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 19.30 | 340.48 | -30.12 | 64.51 | 0.5268 | 702.0 | 506.4 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 19.42 | 340.38 | -30.22 | 64.35 | 0.5287 | 562.0 | 424.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 10.19 | 341.44 | -29.16 | 81.93 | 0.4863 | -730.0 | -618.9 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 10.34 | 341.29 | -29.32 | 81.65 | 0.4888 | -712.0 | -606.4 | |
| 0.00 | 1.86 | 0.00 | 1.09 | 17.84 | 339.29 | -31.31 | 67.77 | 0.5365 | 696.0 | 571.6 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 15.74 | 337.15 | -33.45 | 72.37 | 0.5589 | 609.0 | 520.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
