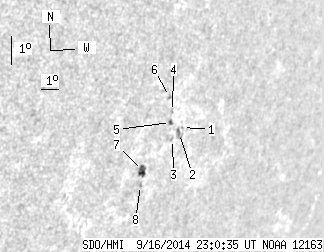

SDO HMI 2014-09-16 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.68 | 20.60 | 5.37 | 19.68 | -16.09 | 64.57 | 54.51 | 246.21 | 0.8570 | 3.9 | 245.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-16 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.78 | -15.65 | 65.49 | 55.43 | 247.04 | 0.8632 | 324.0 | 277.9 | |
| 0.00 | 5.59 | 0.00 | 5.45 | -15.83 | 65.40 | 55.34 | 246.81 | 0.8630 | 540.0 | 416.7 | |
| 0.00 | 1.15 | 0.00 | 1.12 | -15.99 | 65.08 | 55.02 | 246.52 | 0.8609 | 399.0 | 397.5 | |
| 0.00 | 1.07 | 0.00 | 1.01 | -15.05 | 64.70 | 54.65 | 247.42 | 0.8551 | 590.0 | 462.9 | |
| 0.89 | 1.95 | 0.85 | 1.86 | -15.40 | 64.73 | 54.68 | 247.04 | 0.8564 | 652.0 | 561.8 | |
| 0.00 | 1.60 | 0.00 | 1.50 | -14.53 | 64.35 | 54.29 | 247.88 | 0.8506 | 524.0 | 483.4 | |
| 4.79 | 7.37 | 4.52 | 6.95 | -16.86 | 63.81 | 53.75 | 245.08 | 0.8531 | -549.0 | -349.3 | |
| 0.00 | 1.07 | 0.00 | 1.01 | -17.36 | 63.91 | 53.86 | 244.57 | 0.8555 | -405.0 | -323.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
