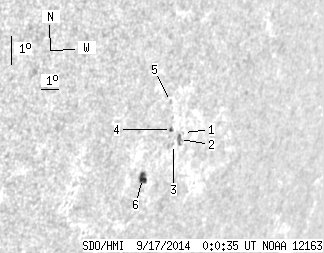

SDO HMI 2014-09-17 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.24 | 16.51 | 5.02 | 15.98 | -16.16 | 64.46 | 54.96 | 246.31 | 0.8609 | -6.7 | 278.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.26 | -15.61 | 65.48 | 55.98 | 247.27 | 0.8675 | 280.0 | 264.0 | |
| 0.00 | 4.26 | 0.00 | 4.21 | -15.82 | 65.35 | 55.84 | 247.00 | 0.8670 | 521.0 | 450.7 | |
| 0.00 | 1.24 | 0.00 | 1.22 | -15.95 | 65.07 | 55.56 | 246.75 | 0.8651 | 456.0 | 429.6 | |
| 0.62 | 1.86 | 0.60 | 1.80 | -15.43 | 64.74 | 55.24 | 247.21 | 0.8610 | 622.4 | 564.1 | |
| 0.00 | 1.42 | 0.00 | 1.35 | -14.48 | 64.32 | 54.82 | 248.11 | 0.8549 | 571.0 | 508.4 | |
| 4.62 | 7.46 | 4.42 | 7.14 | -16.91 | 63.76 | 54.26 | 245.22 | 0.8574 | -511.8 | -295.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
