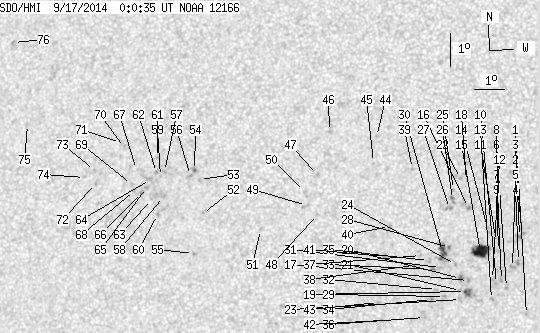

SDO HMI 2014-09-17 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.06 | 155.56 | 10.29 | 81.27 | 12.74 | 352.24 | -17.26 | 70.17 | 0.3075 | -299.3 | -279.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | 10.40 | 357.22 | -12.28 | 74.31 | 0.2184 | -807.0 | -629.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 12.99 | 356.95 | -12.56 | 63.85 | 0.2371 | -959.0 | -749.1 | |
| 0.00 | 5.24 | 0.00 | 2.67 | 12.75 | 356.89 | -12.61 | 64.89 | 0.2362 | -1079.0 | -822.9 | |
| 0.00 | 2.40 | 0.00 | 1.22 | 11.99 | 356.90 | -12.60 | 67.90 | 0.2314 | -846.0 | -849.1 | |
| 0.00 | 2.49 | 0.00 | 1.27 | 11.81 | 356.72 | -12.78 | 68.92 | 0.2332 | -882.0 | -760.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 11.20 | 356.56 | -12.95 | 71.63 | 0.2326 | -904.0 | -744.3 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 11.40 | 356.39 | -13.11 | 70.98 | 0.2363 | -1047.0 | -882.5 | |
| 0.00 | 3.20 | 0.00 | 1.63 | 13.00 | 356.22 | -13.29 | 64.98 | 0.2483 | -876.0 | -679.6 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.31 | 356.25 | -13.25 | 67.57 | 0.2434 | -826.0 | -706.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.31 | 356.24 | -13.27 | 71.54 | 0.2383 | -946.0 | -784.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.70 | 356.14 | -13.37 | 66.24 | 0.2475 | -919.0 | -684.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.43 | 356.10 | -13.40 | 71.23 | 0.2410 | -931.0 | -752.9 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 10.82 | 356.10 | -13.40 | 73.67 | 0.2383 | -805.0 | -685.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.99 | 355.87 | -13.64 | 65.53 | 0.2535 | -832.0 | -661.8 | |
| 13.76 | 18.47 | 7.04 | 9.45 | 12.26 | 355.68 | -13.82 | 68.50 | 0.2520 | -1113.5 | -675.6 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 13.58 | 355.23 | -14.28 | 64.36 | 0.2671 | -1018.0 | -828.3 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 11.38 | 355.35 | -14.16 | 72.26 | 0.2529 | -1084.0 | -802.0 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 14.37 | 355.11 | -14.39 | 61.86 | 0.2742 | -783.0 | -581.0 | |
| 0.80 | 4.79 | 0.41 | 2.45 | 11.04 | 355.27 | -14.23 | 73.62 | 0.2527 | -1094.9 | -1030.2 | |
| 0.53 | 2.66 | 0.27 | 1.36 | 11.43 | 355.09 | -14.41 | 72.32 | 0.2572 | -1136.8 | -939.5 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 11.07 | 355.11 | -14.39 | 73.68 | 0.2554 | -736.0 | -680.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 14.45 | 354.91 | -14.59 | 61.88 | 0.2778 | -891.0 | -683.8 | |
| 0.00 | 2.57 | 0.00 | 1.32 | 10.79 | 355.12 | -14.38 | 74.71 | 0.2541 | -687.0 | -620.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.85 | 354.91 | -14.59 | 70.96 | 0.2620 | -930.0 | -840.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 14.11 | 354.71 | -14.79 | 63.29 | 0.2784 | -813.0 | -662.8 | |
| 0.00 | 3.20 | 0.00 | 1.65 | 13.81 | 354.70 | -14.80 | 64.32 | 0.2765 | -935.0 | -862.4 | |
| 0.00 | 2.75 | 0.00 | 1.42 | 13.53 | 354.62 | -14.88 | 65.35 | 0.2760 | -782.0 | -613.5 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 12.35 | 354.69 | -14.81 | 69.36 | 0.2681 | -934.0 | -839.5 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 10.87 | 354.61 | -14.89 | 74.86 | 0.2626 | -987.0 | -839.7 | |
| 4.53 | 13.76 | 2.33 | 7.08 | 12.23 | 354.47 | -15.03 | 70.05 | 0.2708 | -962.6 | -680.7 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 11.74 | 354.44 | -15.06 | 71.82 | 0.2690 | -732.0 | -654.2 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 11.07 | 354.35 | -15.16 | 74.33 | 0.2677 | -790.0 | -636.9 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 11.67 | 354.19 | -15.32 | 72.31 | 0.2727 | -844.0 | -735.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 10.77 | 354.20 | -15.30 | 75.56 | 0.2689 | -896.0 | -745.3 | |
| 0.00 | 3.02 | 0.00 | 1.56 | 11.94 | 354.04 | -15.46 | 71.50 | 0.2762 | -541.0 | -527.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.22 | 354.01 | -15.50 | 77.71 | 0.2703 | -745.0 | -664.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.08 | 353.78 | -15.72 | 71.26 | 0.2811 | -662.0 | -489.2 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 11.77 | 353.57 | -15.93 | 72.52 | 0.2829 | -871.0 | -613.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 14.71 | 353.35 | -16.16 | 63.26 | 0.3027 | -789.0 | -610.2 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 12.93 | 352.73 | -16.77 | 69.50 | 0.3016 | 944.0 | 669.3 | |
| 0.00 | 2.93 | 0.00 | 1.52 | 12.02 | 352.63 | -16.87 | 72.53 | 0.2990 | -790.0 | -544.3 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 10.08 | 352.64 | -16.86 | 78.96 | 0.2922 | -740.0 | -613.2 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 10.62 | 352.52 | -16.98 | 77.21 | 0.2957 | -686.0 | -424.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.64 | 352.10 | -17.41 | 62.11 | 0.3274 | -783.0 | -575.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 14.85 | 352.07 | -17.44 | 64.39 | 0.3226 | -737.0 | -607.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 15.74 | 350.54 | -18.96 | 63.62 | 0.3507 | -866.0 | -702.7 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 14.42 | 350.26 | -19.24 | 67.44 | 0.3471 | -779.0 | -514.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 13.20 | 350.37 | -19.14 | 70.74 | 0.3395 | 754.0 | 489.3 | |
| 0.00 | 3.64 | 0.00 | 1.92 | 13.46 | 349.98 | -19.52 | 70.31 | 0.3466 | 692.0 | 584.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 13.88 | 349.88 | -19.62 | 69.23 | 0.3501 | 921.0 | 716.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 12.67 | 348.53 | -20.97 | 73.46 | 0.3658 | 762.0 | 604.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.07 | 346.56 | -22.94 | 73.55 | 0.3976 | 860.0 | 738.5 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 14.10 | 346.36 | -23.14 | 71.17 | 0.4045 | 869.0 | 743.9 | |
| 0.44 | 2.40 | 0.24 | 1.30 | 14.36 | 346.16 | -23.34 | 70.66 | 0.4085 | 965.2 | 765.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 11.85 | 346.37 | -23.13 | 76.67 | 0.3967 | 817.0 | 659.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 14.20 | 346.04 | -23.46 | 71.10 | 0.4097 | 860.0 | 764.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 14.28 | 345.15 | -24.35 | 71.43 | 0.4234 | 954.0 | 749.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 13.52 | 345.20 | -24.30 | 73.16 | 0.4199 | 928.0 | 699.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 14.12 | 345.03 | -24.47 | 71.86 | 0.4245 | 864.0 | 638.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.97 | 345.05 | -24.45 | 74.53 | 0.4203 | 753.0 | 611.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 14.69 | 344.86 | -24.64 | 70.65 | 0.4292 | 755.0 | 623.2 | |
| 0.00 | 1.69 | 0.00 | 0.92 | 14.24 | 344.88 | -24.62 | 71.68 | 0.4272 | 844.0 | 759.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 13.41 | 344.80 | -24.70 | 73.61 | 0.4255 | 687.0 | 592.8 | |
| 0.00 | 2.40 | 0.00 | 1.31 | 14.02 | 344.70 | -24.80 | 72.28 | 0.4291 | 845.0 | 691.6 | |
| 0.00 | 1.86 | 0.00 | 1.02 | 13.77 | 344.59 | -24.91 | 72.90 | 0.4298 | 906.0 | 686.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 13.61 | 344.44 | -25.06 | 73.34 | 0.4316 | 805.0 | 716.6 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 14.29 | 344.19 | -25.32 | 71.92 | 0.4377 | 584.0 | 565.2 | |
| 0.00 | 1.60 | 0.00 | 0.88 | 13.66 | 344.19 | -25.31 | 73.35 | 0.4354 | 652.0 | 559.6 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 13.83 | 344.07 | -25.43 | 73.01 | 0.4379 | 615.0 | 515.5 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 14.94 | 343.69 | -25.81 | 70.75 | 0.4474 | 614.0 | 492.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 15.08 | 343.54 | -25.97 | 70.52 | 0.4503 | 547.0 | 452.2 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 13.80 | 342.83 | -26.67 | 73.64 | 0.4562 | 790.0 | 547.8 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 14.19 | 342.75 | -26.76 | 72.83 | 0.4587 | 719.0 | 595.7 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 13.96 | 342.43 | -27.08 | 73.46 | 0.4627 | 545.0 | 478.1 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 15.45 | 340.20 | -29.30 | 71.37 | 0.4998 | 536.0 | 416.9 | |
| 0.00 | 2.13 | 0.00 | 1.24 | 17.91 | 339.27 | -30.23 | 67.11 | 0.5221 | 712.0 | 637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
