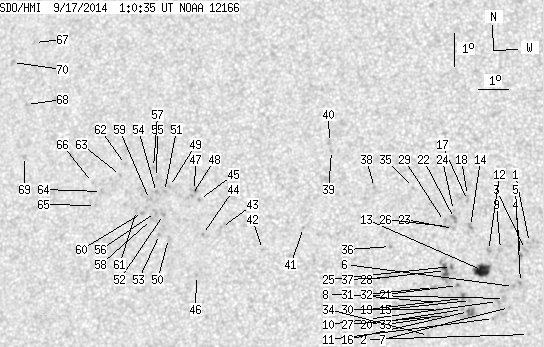

SDO HMI 2014-09-17 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.61 | 155.16 | 8.49 | 81.15 | 12.95 | 351.61 | -17.35 | 69.51 | 0.3096 | -234.0 | -242.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 0.99 | 13.16 | 357.15 | -11.81 | 61.84 | 0.2270 | -716.0 | -623.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 10.38 | 357.23 | -11.72 | 73.75 | 0.2091 | -758.0 | -550.9 | |
| 0.00 | 2.22 | 0.00 | 1.13 | 12.95 | 357.03 | -11.92 | 62.92 | 0.2271 | -875.0 | -819.3 | |
| 0.00 | 2.84 | 0.00 | 1.45 | 12.76 | 356.88 | -12.07 | 63.93 | 0.2281 | -1159.0 | -886.4 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.95 | 356.92 | -12.03 | 67.23 | 0.2222 | -1012.0 | -909.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 11.82 | 356.70 | -12.25 | 68.09 | 0.2248 | -954.0 | -847.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.18 | 356.61 | -12.35 | 70.94 | 0.2229 | -887.0 | -741.0 | |
| 0.00 | 3.29 | 0.00 | 1.67 | 11.45 | 356.44 | -12.52 | 70.03 | 0.2270 | -882.0 | -786.3 | |
| 0.00 | 2.40 | 0.00 | 1.22 | 12.93 | 356.24 | -12.71 | 64.36 | 0.2390 | -940.0 | -724.9 | |
| 0.00 | 2.31 | 0.00 | 1.17 | 11.35 | 356.22 | -12.73 | 70.71 | 0.2300 | -917.0 | -843.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 10.84 | 356.12 | -12.84 | 73.01 | 0.2292 | -824.0 | -644.7 | |
| 0.00 | 2.58 | 0.00 | 1.32 | 12.89 | 355.86 | -13.09 | 65.11 | 0.2445 | -753.0 | -680.4 | |
| 12.79 | 16.52 | 6.53 | 8.43 | 12.28 | 355.70 | -13.25 | 67.68 | 0.2432 | -1139.5 | -762.3 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 13.60 | 355.25 | -13.70 | 63.44 | 0.2586 | -958.0 | -854.8 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 11.36 | 355.37 | -13.58 | 71.70 | 0.2436 | -922.0 | -742.6 | |
| 0.62 | 10.39 | 0.32 | 5.30 | 11.03 | 355.32 | -13.63 | 73.08 | 0.2429 | -1126.0 | -822.7 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 14.38 | 355.11 | -13.85 | 60.95 | 0.2663 | -937.0 | -720.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 14.54 | 355.10 | -13.85 | 60.46 | 0.2676 | -851.0 | -707.0 | |
| 0.00 | 3.73 | 0.00 | 1.91 | 11.41 | 355.11 | -13.84 | 71.77 | 0.2480 | -1157.0 | -897.1 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 11.08 | 355.13 | -13.82 | 73.06 | 0.2462 | -785.0 | -604.3 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 11.80 | 354.93 | -14.02 | 70.48 | 0.2527 | -1003.0 | -823.1 | |
| 0.00 | 3.37 | 0.00 | 1.73 | 13.83 | 354.72 | -14.23 | 63.44 | 0.2680 | -1140.0 | -936.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 13.52 | 354.71 | -14.24 | 64.51 | 0.2662 | -883.0 | -629.1 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 14.07 | 354.68 | -14.27 | 62.69 | 0.2704 | -890.0 | -687.2 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 12.37 | 354.71 | -14.24 | 68.62 | 0.2592 | -986.0 | -838.3 | |
| 0.00 | 2.75 | 0.00 | 1.42 | 13.58 | 354.48 | -14.47 | 64.64 | 0.2700 | -662.0 | -616.0 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 10.89 | 354.63 | -14.32 | 74.30 | 0.2535 | -871.0 | -802.1 | |
| 3.20 | 12.96 | 1.64 | 6.65 | 12.24 | 354.53 | -14.42 | 69.30 | 0.2614 | -956.4 | -730.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 13.73 | 354.41 | -14.54 | 64.23 | 0.2720 | -608.0 | -587.4 | |
| 0.00 | 2.49 | 0.00 | 1.27 | 11.06 | 354.37 | -14.58 | 73.87 | 0.2584 | -1019.0 | -692.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 11.27 | 354.33 | -14.63 | 73.12 | 0.2600 | -416.0 | -405.5 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 11.72 | 354.18 | -14.78 | 71.61 | 0.2644 | -875.0 | -760.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 10.81 | 354.22 | -14.73 | 74.93 | 0.2598 | -889.0 | -778.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.27 | 354.09 | -14.86 | 77.10 | 0.2601 | -792.0 | -622.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 14.73 | 353.35 | -15.61 | 62.47 | 0.2947 | -681.0 | -531.5 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 12.92 | 352.73 | -16.22 | 68.98 | 0.2930 | 986.0 | 784.2 | |
| 0.00 | 4.44 | 0.00 | 2.30 | 11.97 | 352.66 | -16.29 | 72.16 | 0.2896 | -619.0 | -396.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.69 | 352.08 | -16.87 | 64.21 | 0.3132 | -860.0 | -692.8 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 15.76 | 350.58 | -18.37 | 62.91 | 0.3422 | -867.0 | -647.8 | |
| 0.00 | 2.40 | 0.00 | 1.26 | 16.00 | 350.49 | -18.46 | 62.36 | 0.3451 | -576.0 | -519.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 13.39 | 349.87 | -19.09 | 70.17 | 0.3396 | 859.0 | 744.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 12.67 | 348.58 | -20.37 | 73.11 | 0.3565 | 784.0 | 588.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 13.28 | 347.17 | -21.79 | 72.38 | 0.3806 | 629.0 | 470.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.04 | 346.55 | -22.40 | 73.34 | 0.3892 | 881.0 | 776.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.09 | 346.35 | -22.60 | 70.85 | 0.3963 | 907.0 | 763.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 11.79 | 346.46 | -22.49 | 76.55 | 0.3866 | 658.0 | 596.0 | |
| 0.00 | 1.69 | 0.00 | 0.91 | 14.36 | 346.15 | -22.80 | 70.33 | 0.4004 | 958.0 | 758.1 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 14.20 | 346.07 | -22.89 | 70.76 | 0.4010 | 947.0 | 813.0 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 14.44 | 345.30 | -23.66 | 70.67 | 0.4135 | 821.0 | 648.4 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 12.86 | 345.43 | -23.53 | 74.35 | 0.4058 | 490.0 | 494.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 14.28 | 345.14 | -23.81 | 71.13 | 0.4152 | 987.0 | 802.5 | |
| 0.00 | 1.60 | 0.00 | 0.87 | 13.58 | 345.19 | -23.77 | 72.75 | 0.4119 | 936.0 | 801.9 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 12.97 | 345.11 | -23.84 | 74.25 | 0.4110 | 724.0 | 626.4 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 14.23 | 344.88 | -24.08 | 71.38 | 0.4190 | 839.0 | 806.2 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 14.69 | 344.82 | -24.13 | 70.36 | 0.4216 | 721.0 | 580.8 | |
| 0.00 | 3.37 | 0.00 | 1.84 | 13.63 | 344.91 | -24.04 | 72.79 | 0.4163 | 800.0 | 694.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 14.99 | 344.69 | -24.27 | 69.76 | 0.4249 | 721.0 | 612.1 | |
| 0.00 | 1.86 | 0.00 | 1.02 | 13.41 | 344.80 | -24.16 | 73.36 | 0.4172 | 625.0 | 541.7 | |
| 0.00 | 2.40 | 0.00 | 1.31 | 14.01 | 344.66 | -24.29 | 72.02 | 0.4214 | 806.0 | 694.5 | |
| 0.00 | 1.60 | 0.00 | 0.87 | 13.61 | 344.47 | -24.48 | 73.06 | 0.4229 | 761.0 | 648.9 | |
| 0.00 | 2.66 | 0.00 | 1.46 | 13.66 | 344.26 | -24.69 | 73.05 | 0.4262 | 447.0 | 447.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 15.03 | 343.72 | -25.23 | 70.23 | 0.4393 | 643.0 | 567.9 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 14.69 | 343.59 | -25.36 | 71.06 | 0.4399 | 789.0 | 638.3 | |
| 0.00 | 3.02 | 0.00 | 1.67 | 14.17 | 343.00 | -25.96 | 72.50 | 0.4468 | 734.0 | 633.2 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 13.74 | 342.84 | -26.11 | 73.53 | 0.4477 | 704.0 | 570.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 14.43 | 342.65 | -26.30 | 72.11 | 0.4528 | 517.0 | 377.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 18.57 | 339.95 | -29.00 | 65.22 | 0.5083 | 739.0 | 598.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 16.66 | 339.99 | -28.96 | 68.83 | 0.4994 | 663.0 | 527.8 | |
| 0.00 | 1.78 | 0.00 | 1.01 | 15.08 | 340.17 | -28.78 | 71.87 | 0.4912 | 768.0 | 629.8 | |
| 0.00 | 2.66 | 0.00 | 1.54 | 17.91 | 339.27 | -29.68 | 66.82 | 0.5146 | 678.0 | 616.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
