SDO HMI 2014-09-17 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.94 | 107.54 | 35.29 | 273.70 | 15.09 | 88.61 | 80.20 | 284.03 | 0.9816 | 229.4 | 110.5 | |
|
previous
or next observation for the same group /

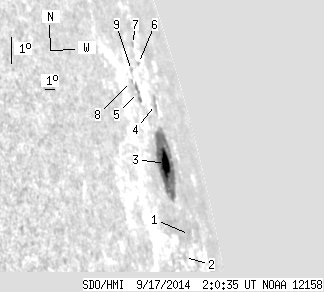

back to the solar disc SDO HMI 2014-09-17 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.24 | 0.00 | 14.85 | 12.54 | 89.70 | 81.30 | 281.53 | 0.9856 | 127.0 | 143.7 | |
| 0.00 | 2.58 | 0.00 | 6.38 | 12.02 | 88.05 | 79.65 | 280.87 | 0.9806 | 46.0 | 38.9 | |
| 13.94 | 81.61 | 35.29 | 207.62 | 14.89 | 88.57 | 80.16 | 283.82 | 0.9815 | 284.7 | 137.2 | |
| 0.00 | 6.13 | 0.00 | 16.68 | 16.62 | 89.64 | 81.23 | 285.66 | 0.9844 | -126.0 | -136.9 | |
| 0.00 | 6.48 | 0.00 | 14.87 | 17.25 | 87.55 | 79.15 | 286.16 | 0.9775 | 275.0 | 242.1 | |
| 0.00 | 1.24 | 0.00 | 3.18 | 18.01 | 88.92 | 80.52 | 287.02 | 0.9819 | -391.0 | -366.1 | |
| 0.00 | 1.69 | 0.00 | 4.32 | 18.61 | 88.96 | 80.56 | 287.63 | 0.9818 | -193.0 | -120.1 | |
| 0.00 | 1.24 | 0.00 | 2.76 | 17.66 | 87.05 | 78.64 | 286.55 | 0.9756 | 292.0 | 335.5 | |
| 0.00 | 1.33 | 0.00 | 3.04 | 17.95 | 87.53 | 79.13 | 286.88 | 0.9772 | -145.0 | -84.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
