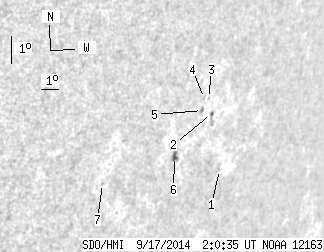

SDO HMI 2014-09-17 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 14.56 | 2.64 | 14.53 | -16.13 | 64.42 | 56.02 | 246.71 | 0.8691 | 90.3 | 201.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.58 | -17.62 | 66.67 | 58.27 | 245.88 | 0.8901 | 494.0 | 410.3 | |
| 0.53 | 5.24 | 0.54 | 5.34 | -15.64 | 65.27 | 56.86 | 247.54 | 0.8745 | 533.2 | 369.8 | |
| 0.00 | 0.71 | 0.00 | 0.71 | -15.12 | 64.87 | 56.47 | 247.98 | 0.8701 | 431.0 | 387.4 | |
| 0.00 | 0.62 | 0.00 | 0.62 | -15.09 | 64.63 | 56.23 | 247.93 | 0.8681 | 435.0 | 462.4 | |
| 0.00 | 1.95 | 0.00 | 1.94 | -15.48 | 64.68 | 56.28 | 247.51 | 0.8695 | 603.0 | 500.5 | |
| 2.13 | 4.62 | 2.10 | 4.54 | -16.87 | 63.70 | 55.30 | 245.65 | 0.8656 | -529.0 | -334.4 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -17.36 | 60.07 | 51.66 | 243.69 | 0.8373 | -450.0 | -409.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
