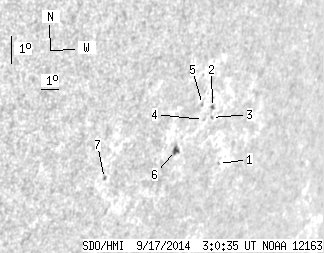

SDO HMI 2014-09-17 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 10.58 | 2.22 | 10.64 | -16.55 | 64.09 | 56.24 | 246.31 | 0.8719 | 101.7 | 94.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.88 | -17.61 | 66.61 | 58.76 | 246.05 | 0.8936 | 509.0 | 417.3 | |
| 0.00 | 1.69 | 0.00 | 1.74 | -15.65 | 65.30 | 57.45 | 247.73 | 0.8791 | 618.0 | 457.9 | |
| 0.00 | 0.89 | 0.00 | 0.92 | -15.98 | 65.39 | 57.54 | 247.40 | 0.8806 | 407.0 | 334.8 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -15.99 | 64.93 | 57.08 | 247.23 | 0.8771 | 256.0 | 334.7 | |
| 0.00 | 0.98 | 0.00 | 0.99 | -15.48 | 64.65 | 56.80 | 247.70 | 0.8736 | 639.0 | 565.3 | |
| 2.22 | 4.71 | 2.22 | 4.70 | -16.86 | 63.72 | 55.86 | 245.86 | 0.8700 | -537.4 | -358.7 | |
| 0.00 | 1.24 | 0.00 | 1.14 | -17.39 | 60.10 | 52.25 | 243.90 | 0.8423 | -400.0 | -386.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
