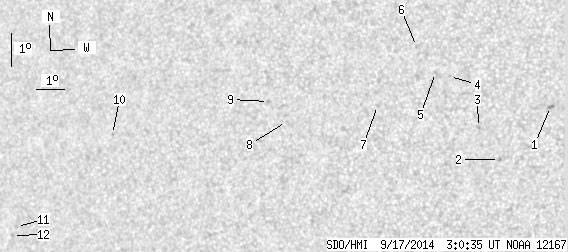

SDO HMI 2014-09-17 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.73 | 0.00 | 8.50 | 8.48 | 337.55 | -30.30 | 84.76 | 0.5001 | -289.8 | -122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.31 | 0.00 | 1.24 | 9.63 | 345.20 | -22.66 | 82.18 | 0.3850 | 764.0 | 703.0 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 7.95 | 343.61 | -24.24 | 86.58 | 0.4091 | -851.0 | -625.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 8.88 | 342.84 | -25.01 | 84.37 | 0.4215 | -749.0 | -678.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 10.36 | 341.74 | -26.11 | 81.07 | 0.4401 | -722.0 | -556.7 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 10.46 | 341.25 | -26.60 | 80.95 | 0.4477 | -762.0 | -601.2 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 11.21 | 340.53 | -27.33 | 79.46 | 0.4599 | -677.0 | -463.2 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 9.35 | 339.35 | -28.50 | 83.60 | 0.4758 | -664.0 | -437.1 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 8.68 | 336.20 | -31.66 | 85.10 | 0.5228 | -664.0 | -623.0 | |
| 0.00 | 1.42 | 0.00 | 0.83 | 9.24 | 335.49 | -32.36 | 84.06 | 0.5332 | -635.0 | -510.6 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 7.84 | 329.81 | -38.05 | 86.46 | 0.6140 | 752.0 | 584.7 | |
| 0.00 | 1.24 | 0.00 | 0.82 | 4.78 | 326.28 | -41.57 | 90.92 | 0.6637 | 76.0 | 117.6 | |
| 0.00 | 1.33 | 0.00 | 0.88 | 4.49 | 326.14 | -41.72 | 91.33 | 0.6659 | 655.0 | 505.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
