SDO HMI 2014-09-17 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.64 | 102.95 | 32.46 | 282.07 | 15.25 | 88.44 | 81.14 | 284.27 | 0.9843 | 143.0 | 96.0 | |
|
previous
or next observation for the same group /

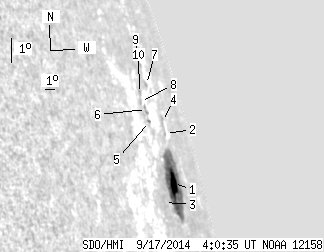

back to the solar disc SDO HMI 2014-09-17 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.64 | 81.90 | 32.46 | 227.11 | 14.92 | 88.55 | 81.25 | 283.94 | 0.9848 | 189.3 | 124.0 | |
| 0.00 | 1.33 | 0.00 | 4.04 | 16.36 | 89.63 | 82.33 | 285.48 | 0.9875 | -443.0 | -390.7 | |
| 0.00 | 6.22 | 0.00 | 14.45 | 14.59 | 86.35 | 79.05 | 283.43 | 0.9778 | 91.0 | 98.1 | |
| 0.00 | 3.64 | 0.00 | 11.12 | 16.72 | 89.74 | 82.43 | 285.86 | 0.9877 | 104.0 | 11.0 | |
| 0.00 | 1.33 | 0.00 | 3.32 | 17.00 | 87.50 | 80.19 | 285.97 | 0.9811 | 242.0 | 229.7 | |
| 0.00 | 1.95 | 0.00 | 4.91 | 17.37 | 87.60 | 80.30 | 286.35 | 0.9813 | 198.0 | 140.4 | |
| 0.00 | 1.78 | 0.00 | 4.96 | 18.00 | 88.91 | 81.61 | 287.09 | 0.9851 | -521.0 | -401.5 | |
| 0.00 | 1.69 | 0.00 | 4.07 | 17.69 | 87.07 | 79.76 | 286.64 | 0.9795 | 261.0 | 234.4 | |
| 0.00 | 1.24 | 0.00 | 3.50 | 18.60 | 88.96 | 81.65 | 287.70 | 0.9851 | -163.0 | -142.9 | |
| 0.00 | 1.87 | 0.00 | 4.59 | 17.91 | 87.30 | 79.99 | 286.89 | 0.9802 | 15.0 | -11.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
