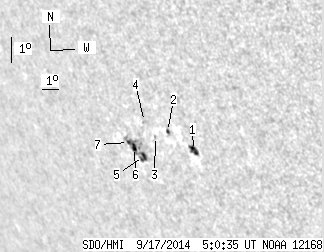

SDO HMI 2014-09-17 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.23 | 33.84 | 13.43 | 34.58 | -21.06 | 311.65 | -55.11 | 118.95 | 0.8764 | -109.5 | -255.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.26 | 6.66 | 4.08 | 6.37 | -20.90 | 314.11 | -52.65 | 119.77 | 0.8576 | 529.9 | 331.8 | |
| 0.89 | 2.31 | 0.87 | 2.26 | -20.38 | 312.96 | -53.79 | 118.74 | 0.8646 | 359.9 | 180.5 | |
| 0.00 | 1.07 | 0.00 | 1.07 | -20.63 | 312.17 | -54.59 | 118.69 | 0.8715 | 52.0 | 80.0 | |
| 0.00 | 1.95 | 0.00 | 1.97 | -20.17 | 311.80 | -54.96 | 118.05 | 0.8728 | 22.0 | 40.6 | |
| 3.82 | 21.85 | 3.99 | 22.91 | -21.43 | 311.04 | -55.72 | 119.09 | 0.8821 | -555.9 | -456.3 | |
| 3.02 | -5.00 | 3.18 | -5.00 | -21.16 | 310.67 | -56.09 | 118.67 | 0.8840 | -450.0 | 999999 | |
| 1.24 | -5.00 | 1.31 | -5.00 | -21.03 | 310.40 | -56.36 | 118.42 | 0.8855 | -449.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
