SDO HMI 2014-09-17 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.99 | 89.89 | 33.97 | 195.06 | 7.69 | 289.36 | -77.39 | 83.76 | 0.9739 | -150.7 | -64.9 | |
|
previous
or next observation for the same group /

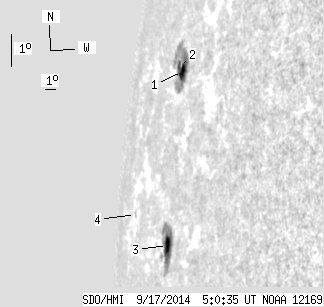

back to the solar disc SDO HMI 2014-09-17 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.93 | 49.83 | 14.82 | 109.37 | 9.97 | 289.15 | -77.60 | 81.40 | 0.9739 | -383.3 | -52.1 | |
| 1.51 | -1.00 | 3.36 | -1.00 | 10.06 | 288.63 | -78.13 | 81.26 | 0.9758 | 216.8 | 999999 | |
| 7.55 | 38.82 | 15.79 | 81.39 | 4.75 | 290.03 | -76.72 | 86.84 | 0.9725 | -15.4 | -81.4 | |
| 0.00 | 1.24 | 0.00 | 4.30 | 5.01 | 284.44 | -82.31 | 85.94 | 0.9904 | -73.0 | -83.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
