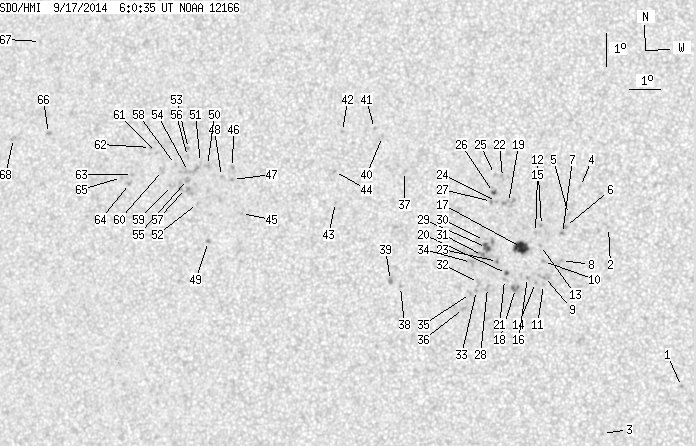

SDO HMI 2014-09-17 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.72 | 164.39 | 7.95 | 85.11 | 12.95 | 351.05 | -15.16 | 66.65 | 0.2765 | -310.5 | -159.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.66 | 8.15 | 0.78 | -5.43 | 79.33 | 0.0958 | -952.0 | -812.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.92 | 358.43 | -7.78 | 52.49 | 0.1671 | -866.0 | -661.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 6.71 | 358.38 | -7.83 | 92.97 | 0.1360 | -919.0 | -682.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.15 | 357.51 | -8.70 | 50.04 | 0.1922 | -681.0 | -509.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.30 | 357.17 | -9.04 | 54.74 | 0.1882 | -807.0 | -731.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 12.93 | 357.08 | -9.13 | 56.62 | 0.1860 | -1044.0 | -907.1 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.72 | 357.00 | -9.21 | 57.84 | 0.1853 | -1045.0 | -919.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 11.90 | 356.99 | -9.21 | 61.81 | 0.1786 | -925.0 | -781.5 | |
| 0.00 | 6.31 | 0.00 | 3.18 | 11.41 | 356.48 | -9.73 | 65.47 | 0.1829 | -910.0 | -783.3 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 11.86 | 356.43 | -9.78 | 63.33 | 0.1868 | -913.0 | -748.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.17 | 356.46 | -9.75 | 66.76 | 0.1817 | -777.0 | -521.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 12.95 | 356.33 | -9.88 | 58.51 | 0.1970 | -983.0 | -791.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.34 | 356.32 | -9.89 | 61.29 | 0.1921 | -971.0 | -711.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 11.22 | 356.21 | -10.00 | 66.97 | 0.1860 | -791.0 | -596.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.73 | 356.15 | -10.06 | 59.91 | 0.1978 | -920.0 | -661.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 11.37 | 355.95 | -10.26 | 66.73 | 0.1909 | -1025.0 | -816.2 | |
| 11.10 | 14.75 | 5.61 | 7.46 | 12.27 | 355.73 | -10.48 | 62.93 | 0.2005 | -1176.1 | -826.0 | |
| 0.00 | 4.09 | 0.00 | 2.06 | 11.03 | 355.59 | -10.62 | 69.04 | 0.1946 | -1079.0 | -993.4 | |
| 0.00 | 7.64 | 0.00 | 3.88 | 13.62 | 355.26 | -10.95 | 58.18 | 0.2182 | -763.0 | -802.2 | |
| 0.62 | 1.60 | 0.31 | 0.81 | 11.47 | 355.29 | -10.92 | 67.42 | 0.2019 | -1091.6 | -943.7 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 11.29 | 355.24 | -10.97 | 68.37 | 0.2017 | -817.0 | -627.3 | |
| 0.00 | 2.58 | 0.00 | 1.31 | 14.38 | 355.04 | -11.17 | 55.77 | 0.2280 | -840.0 | -666.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 11.83 | 354.99 | -11.21 | 66.32 | 0.2088 | -1064.0 | -910.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.65 | 354.88 | -11.33 | 58.92 | 0.2239 | -930.0 | -714.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 14.46 | 354.78 | -11.43 | 56.03 | 0.2324 | -701.0 | -622.9 | |
| 0.80 | 2.31 | 0.41 | 1.17 | 13.92 | 354.78 | -11.43 | 58.10 | 0.2277 | -1077.9 | -908.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.64 | 354.73 | -11.48 | 59.26 | 0.2261 | -924.0 | -749.9 | |
| 0.00 | 2.58 | 0.00 | 1.30 | 11.04 | 354.71 | -11.50 | 70.36 | 0.2087 | -794.0 | -722.6 | |
| 3.20 | 7.64 | 1.62 | 3.88 | 12.25 | 354.63 | -11.58 | 65.14 | 0.2171 | -1037.4 | -875.3 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.46 | 354.56 | -11.65 | 64.38 | 0.2197 | -218.0 | -422.2 | |
| 0.00 | 6.04 | 0.00 | 3.06 | 12.00 | 354.52 | -11.69 | 66.39 | 0.2173 | -824.0 | -737.9 | |
| 0.00 | 3.55 | 0.00 | 1.80 | 11.18 | 354.42 | -11.78 | 70.12 | 0.2140 | -781.0 | -635.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 10.94 | 354.37 | -11.84 | 71.28 | 0.2136 | -982.0 | -797.9 | |
| 0.00 | 4.09 | 0.00 | 2.08 | 11.78 | 354.18 | -12.03 | 67.87 | 0.2213 | -794.0 | -726.6 | |
| 0.00 | 2.22 | 0.00 | 1.13 | 10.84 | 354.19 | -12.02 | 71.94 | 0.2161 | -855.0 | -643.3 | |
| 0.00 | 2.40 | 0.00 | 1.22 | 10.39 | 353.99 | -12.22 | 74.23 | 0.2174 | -892.0 | -708.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 14.48 | 351.91 | -14.30 | 61.31 | 0.2739 | -911.0 | -689.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.00 | 351.97 | -14.24 | 73.74 | 0.2526 | -862.0 | -596.2 | |
| 0.00 | 2.58 | 0.00 | 1.32 | 11.17 | 351.65 | -14.56 | 73.39 | 0.2585 | -869.0 | -770.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.52 | 351.12 | -15.09 | 59.23 | 0.2932 | -849.0 | -672.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.76 | 350.85 | -15.36 | 58.95 | 0.2990 | -892.0 | -653.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.63 | 349.81 | -16.40 | 60.79 | 0.3128 | -788.0 | -647.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 13.47 | 349.75 | -16.46 | 67.41 | 0.2998 | 783.0 | 679.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 14.41 | 349.65 | -16.56 | 64.62 | 0.3069 | 892.0 | 671.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 13.03 | 346.72 | -19.49 | 71.47 | 0.3443 | 1082.0 | 804.0 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 14.41 | 346.31 | -19.90 | 68.01 | 0.3571 | 897.0 | 719.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.04 | 346.34 | -19.87 | 68.96 | 0.3548 | 1012.0 | 801.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.12 | 345.97 | -20.24 | 69.06 | 0.3608 | 928.0 | 775.7 | |
| 0.00 | 1.60 | 0.00 | 0.85 | 12.14 | 345.71 | -20.50 | 74.61 | 0.3567 | 977.0 | 813.8 | |
| 0.00 | 3.02 | 0.00 | 1.61 | 14.43 | 345.47 | -20.74 | 68.62 | 0.3698 | 918.0 | 713.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 14.52 | 345.23 | -20.98 | 68.60 | 0.3738 | 646.0 | 476.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 13.27 | 345.25 | -20.96 | 71.84 | 0.3680 | 754.0 | 629.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 14.92 | 344.79 | -21.42 | 67.92 | 0.3824 | 787.0 | 667.7 | |
| 0.00 | 9.15 | 0.00 | 4.89 | 14.23 | 344.86 | -21.35 | 69.62 | 0.3781 | 881.0 | 724.6 | |
| 0.00 | 3.20 | 0.00 | 1.71 | 13.98 | 344.85 | -21.36 | 70.25 | 0.3771 | 935.0 | 830.6 | |
| 0.00 | 1.78 | 0.00 | 0.95 | 14.68 | 344.78 | -21.43 | 68.54 | 0.3814 | 812.0 | 621.5 | |
| 0.00 | 11.19 | 0.00 | 5.98 | 13.71 | 344.81 | -21.40 | 70.99 | 0.3765 | 594.0 | 678.9 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 14.42 | 344.41 | -21.80 | 69.46 | 0.3858 | 728.0 | 532.9 | |
| 0.00 | 2.40 | 0.00 | 1.29 | 13.78 | 344.37 | -21.84 | 71.10 | 0.3835 | 496.0 | 575.7 | |
| 0.00 | 3.55 | 0.00 | 1.91 | 14.22 | 343.99 | -22.22 | 70.25 | 0.3911 | 845.0 | 530.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 14.75 | 343.73 | -22.48 | 69.11 | 0.3974 | 885.0 | 639.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 14.90 | 343.51 | -22.70 | 68.92 | 0.4013 | 768.0 | 597.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 14.05 | 343.00 | -23.21 | 71.29 | 0.4054 | 938.0 | 687.9 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 13.77 | 342.92 | -23.29 | 71.99 | 0.4054 | 815.0 | 595.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.94 | 342.64 | -23.57 | 71.75 | 0.4104 | 711.0 | 557.2 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 15.15 | 339.98 | -26.23 | 70.49 | 0.4544 | 884.0 | 765.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 17.94 | 339.29 | -26.92 | 65.14 | 0.4767 | 589.0 | 485.9 | |
| 0.00 | 2.84 | 0.00 | 1.59 | 14.93 | 338.79 | -27.42 | 71.54 | 0.4711 | 671.0 | 553.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
