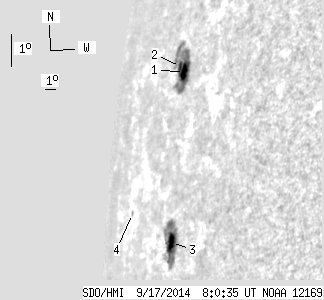

SDO HMI 2014-09-17 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.77 | 100.55 | 33.57 | 193.50 | 7.68 | 289.52 | -75.60 | 83.95 | 0.9664 | -248.3 | -49.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.55 | 54.36 | 14.43 | 106.14 | 9.96 | 289.26 | -75.86 | 81.57 | 0.9667 | -390.0 | -43.0 | |
| 1.51 | -1.00 | 3.00 | -1.00 | 10.07 | 288.65 | -76.46 | 81.40 | 0.9692 | 179.3 | 999999 | |
| 8.71 | 44.86 | 16.14 | 83.49 | 4.87 | 290.21 | -74.91 | 86.91 | 0.9646 | -211.2 | -55.5 | |
| 0.00 | 1.33 | 0.00 | 3.87 | 5.05 | 284.42 | -80.70 | 86.09 | 0.9861 | -85.0 | -92.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
