SDO HMI 2014-09-17 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.51 | 36.05 | 15.76 | 34.26 | -21.06 | 311.72 | -52.30 | 120.09 | 0.8551 | -178.7 | -89.7 | |
|
previous
or next observation for the same group /

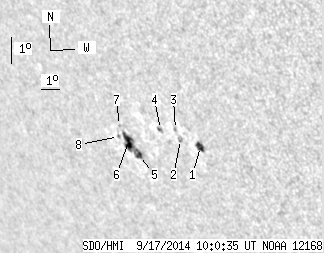

back to the solar disc SDO HMI 2014-09-17 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.26 | 6.39 | 3.79 | 5.69 | -20.91 | 314.48 | -49.54 | 121.15 | 0.8327 | 595.5 | 401.1 | |
| 0.00 | 2.84 | 0.00 | 2.58 | -20.77 | 313.53 | -50.49 | 120.56 | 0.8398 | 520.0 | 304.2 | |
| 0.00 | 1.42 | 0.00 | 1.29 | -20.44 | 313.43 | -50.59 | 120.16 | 0.8394 | 439.0 | 412.2 | |
| 0.00 | 2.13 | 0.00 | 1.97 | -20.53 | 312.62 | -51.40 | 119.89 | 0.8463 | 557.0 | 369.6 | |
| 2.75 | 21.14 | 2.68 | 20.64 | -21.57 | 310.98 | -53.04 | 120.31 | 0.8628 | -540.9 | -445.3 | |
| 9.50 | -5.00 | 9.29 | -5.00 | -21.14 | 310.61 | -53.41 | 119.70 | 0.8641 | -566.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.69 | -20.62 | 310.39 | -53.63 | 119.05 | 0.8641 | -543.0 | -484.8 | |
| 0.00 | 1.42 | 0.00 | 1.40 | -21.02 | 310.13 | -53.89 | 119.37 | 0.8674 | -229.0 | -190.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
