SDO HMI 2014-09-17 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.39 | 109.74 | 3.21 | 56.10 | 12.95 | 351.53 | -11.94 | 60.42 | 0.2286 | -327.6 | -257.2 | |
|
previous
or next observation for the same group /

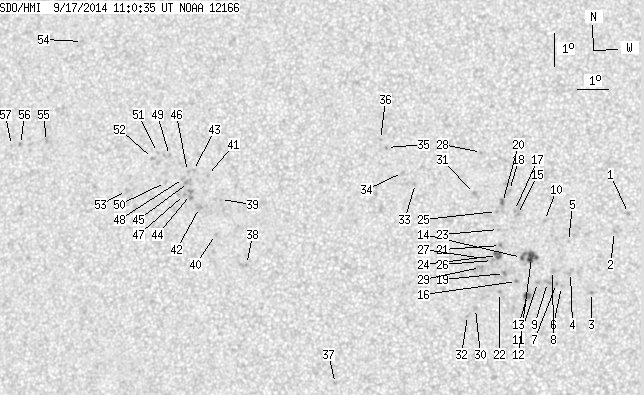

back to the solar disc SDO HMI 2014-09-17 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 0.98 | 13.61 | 358.82 | -4.65 | 34.95 | 0.1383 | -893.0 | -704.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.06 | 358.39 | -5.08 | 39.84 | 0.1352 | -913.0 | -729.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.21 | 357.72 | -5.75 | 54.06 | 0.1220 | -956.0 | -761.5 | |
| 0.00 | 3.02 | 0.00 | 1.51 | 11.81 | 357.05 | -6.42 | 53.20 | 0.1372 | -870.0 | -795.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.74 | 356.97 | -6.50 | 48.37 | 0.1484 | -822.0 | -609.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.38 | 356.79 | -6.69 | 56.87 | 0.1369 | -862.0 | -698.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 11.47 | 356.63 | -6.84 | 56.92 | 0.1400 | -1001.0 | -873.4 | |
| 0.00 | 2.84 | 0.00 | 1.42 | 11.86 | 356.50 | -6.98 | 55.11 | 0.1456 | -926.0 | -757.8 | |
| 0.00 | 2.75 | 0.00 | 1.38 | 11.50 | 356.35 | -7.12 | 57.77 | 0.1443 | -794.0 | -782.7 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 13.37 | 356.21 | -7.26 | 48.41 | 0.1652 | -858.0 | -551.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 11.49 | 356.04 | -7.43 | 58.85 | 0.1488 | -974.0 | -820.1 | |
| 5.24 | 12.08 | 2.63 | 6.06 | 12.24 | 355.83 | -7.64 | 55.36 | 0.1586 | -1162.7 | -870.1 | |
| 0.00 | 4.44 | 0.00 | 2.22 | 11.09 | 355.74 | -7.73 | 62.14 | 0.1500 | -1122.0 | -991.8 | |
| 0.71 | -12.00 | 0.36 | -12.00 | 12.24 | 355.52 | -7.95 | 56.41 | 0.1630 | -994.9 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 13.54 | 355.36 | -8.11 | 50.69 | 0.1782 | -1095.0 | -783.2 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 11.51 | 355.39 | -8.08 | 60.76 | 0.1586 | -1140.0 | -1018.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.66 | 355.26 | -8.21 | 50.49 | 0.1807 | -958.0 | -781.8 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 14.26 | 355.08 | -8.39 | 48.53 | 0.1896 | -866.0 | -553.1 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 11.75 | 355.01 | -8.46 | 60.55 | 0.1662 | -1163.0 | -970.4 | |
| 0.44 | 2.58 | 0.22 | 1.30 | 13.90 | 354.87 | -8.60 | 50.72 | 0.1883 | -1094.2 | -871.1 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.59 | 354.86 | -8.61 | 56.69 | 0.1757 | -979.0 | -794.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 11.17 | 354.87 | -8.60 | 64.06 | 0.1639 | -878.0 | -783.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.08 | 354.78 | -8.69 | 54.64 | 0.1814 | -812.0 | -598.2 | |
| 0.00 | 5.06 | 0.00 | 2.55 | 12.29 | 354.77 | -8.70 | 58.42 | 0.1742 | -1002.0 | -955.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.62 | 354.70 | -8.77 | 52.45 | 0.1878 | -886.0 | -727.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 12.13 | 354.62 | -8.85 | 59.61 | 0.1751 | -956.0 | -748.2 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.19 | 354.34 | -9.13 | 60.09 | 0.1798 | -737.0 | -577.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 15.40 | 354.15 | -9.32 | 47.12 | 0.2140 | -730.0 | -627.7 | |
| 0.00 | 3.46 | 0.00 | 1.74 | 11.92 | 354.25 | -9.22 | 61.66 | 0.1789 | -853.0 | -731.5 | |
| 0.00 | 2.84 | 0.00 | 1.43 | 10.67 | 354.14 | -9.33 | 68.44 | 0.1721 | -862.0 | -584.6 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 14.15 | 353.98 | -9.49 | 52.32 | 0.2028 | -792.0 | -666.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 10.46 | 353.90 | -9.57 | 70.08 | 0.1748 | -781.0 | -685.7 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 14.42 | 352.11 | -11.36 | 56.00 | 0.2312 | -925.0 | -737.1 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 14.74 | 351.68 | -11.79 | 55.76 | 0.2402 | -783.0 | -614.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 15.49 | 351.12 | -12.35 | 54.37 | 0.2547 | -927.0 | -826.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 15.73 | 350.92 | -12.55 | 54.02 | 0.2597 | -823.0 | -683.3 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 8.31 | 349.85 | -13.62 | 84.21 | 0.2353 | 749.0 | 566.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 11.81 | 346.86 | -16.61 | 72.86 | 0.2941 | 929.0 | 782.3 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 13.75 | 345.89 | -17.58 | 67.68 | 0.3186 | 845.0 | 680.6 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 12.69 | 345.80 | -17.67 | 70.98 | 0.3145 | 685.0 | 601.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 14.46 | 345.41 | -18.06 | 66.09 | 0.3299 | 885.0 | 764.8 | |
| 0.00 | 2.49 | 0.00 | 1.30 | 13.48 | 345.23 | -18.25 | 69.10 | 0.3273 | 772.0 | 668.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 14.60 | 344.94 | -18.53 | 66.19 | 0.3377 | 714.0 | 629.3 | |
| 0.00 | 4.53 | 0.00 | 2.38 | 13.87 | 344.90 | -18.57 | 68.29 | 0.3343 | 788.0 | 891.2 | |
| 0.00 | 4.71 | 0.00 | 2.48 | 14.23 | 344.80 | -18.67 | 67.36 | 0.3376 | 862.0 | 762.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 14.56 | 344.74 | -18.73 | 66.49 | 0.3404 | 820.0 | 694.4 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.86 | 344.70 | -18.77 | 68.49 | 0.3372 | 837.0 | 717.2 | |
| 0.00 | 2.31 | 0.00 | 1.22 | 14.34 | 344.63 | -18.84 | 67.20 | 0.3409 | 722.0 | 619.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 15.02 | 344.11 | -19.36 | 65.84 | 0.3525 | 717.0 | 644.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 14.20 | 344.05 | -19.42 | 68.12 | 0.3489 | 785.0 | 604.3 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.10 | 343.70 | -19.77 | 66.02 | 0.3589 | 761.0 | 599.8 | |
| 0.00 | 1.95 | 0.00 | 1.04 | 14.91 | 343.56 | -19.92 | 66.65 | 0.3601 | 775.0 | 627.3 | |
| 0.00 | 3.11 | 0.00 | 1.65 | 13.90 | 342.79 | -20.68 | 69.93 | 0.3666 | 791.0 | 593.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.37 | 340.79 | -22.68 | 60.90 | 0.4206 | 784.0 | 615.4 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 15.27 | 339.95 | -23.52 | 68.57 | 0.4153 | 682.0 | 601.3 | |
| 0.00 | 1.51 | 0.00 | 0.83 | 15.14 | 339.08 | -24.39 | 69.44 | 0.4275 | 753.0 | 651.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 15.09 | 338.78 | -24.69 | 69.72 | 0.4318 | 634.0 | 548.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
