SDO HMI 2014-09-17 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.09 | 39.60 | 13.82 | 36.26 | -21.07 | 311.68 | -50.69 | 120.82 | 0.8424 | -94.2 | -144.8 | |
|
previous
or next observation for the same group /

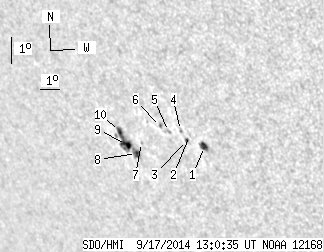

back to the solar disc SDO HMI 2014-09-17 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.91 | 6.39 | 3.35 | 5.48 | -20.92 | 314.60 | -47.77 | 122.02 | 0.8179 | 598.1 | 429.0 | |
| 0.00 | 1.07 | 0.00 | 0.92 | -20.61 | 314.01 | -48.37 | 121.38 | 0.8216 | 538.0 | 338.9 | |
| 0.62 | 1.69 | 0.54 | 1.47 | -20.80 | 313.78 | -48.59 | 121.48 | 0.8243 | 396.3 | 347.7 | |
| 0.00 | 1.42 | 0.00 | 1.24 | -20.48 | 313.62 | -48.75 | 121.05 | 0.8243 | 581.0 | 403.9 | |
| 0.00 | 1.78 | 0.00 | 1.57 | -20.57 | 312.99 | -49.38 | 120.86 | 0.8300 | 477.0 | 318.6 | |
| 0.00 | 0.89 | 0.00 | 0.79 | -20.44 | 312.65 | -49.72 | 120.55 | 0.8323 | 466.0 | 407.9 | |
| 0.00 | 1.15 | 0.00 | 1.06 | -21.11 | 311.38 | -51.00 | 120.70 | 0.8452 | -397.0 | -391.2 | |
| 2.66 | 25.21 | 2.49 | 23.73 | -21.52 | 310.91 | -51.46 | 120.94 | 0.8505 | -591.9 | -413.1 | |
| 5.41 | -8.00 | 5.10 | -8.00 | -21.26 | 310.52 | -51.85 | 120.49 | 0.8526 | -543.2 | 999999 | |
| 2.49 | -8.00 | 2.34 | -8.00 | -20.84 | 310.36 | -52.01 | 119.96 | 0.8523 | -602.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
