SDO HMI 2014-09-17 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.97 | 37.91 | 10.77 | 34.26 | -21.01 | 311.61 | -50.21 | 120.96 | 0.8382 | -38.5 | -213.0 | |
|
previous
or next observation for the same group /

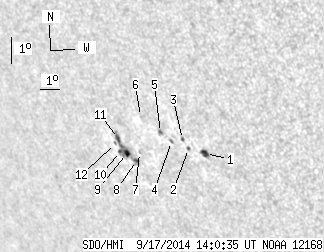

back to the solar disc SDO HMI 2014-09-17 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.46 | 5.77 | 2.93 | 4.88 | -20.90 | 314.64 | -47.18 | 122.29 | 0.8128 | 638.7 | 455.4 | |
| 0.00 | 1.60 | 0.00 | 1.37 | -20.80 | 313.86 | -47.96 | 121.80 | 0.8190 | 489.0 | 441.1 | |
| 0.44 | 1.60 | 0.38 | 1.37 | -20.52 | 313.70 | -48.13 | 121.40 | 0.8192 | 383.0 | 365.7 | |
| 0.44 | 1.42 | 0.39 | 1.24 | -20.64 | 313.11 | -48.72 | 121.25 | 0.8247 | 230.2 | 251.9 | |
| 0.53 | 2.31 | 0.47 | 2.02 | -20.38 | 312.68 | -49.14 | 120.76 | 0.8272 | 380.2 | 279.5 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -19.93 | 311.88 | -49.94 | 119.89 | 0.8321 | 266.0 | 207.2 | |
| 0.00 | 0.80 | 0.00 | 0.73 | -21.20 | 311.25 | -50.57 | 120.99 | 0.8422 | -554.0 | -508.8 | |
| 1.24 | 22.63 | 1.15 | 21.02 | -21.50 | 310.95 | -50.87 | 121.18 | 0.8457 | -600.5 | -493.3 | |
| 2.84 | -8.00 | 2.64 | -8.00 | -21.30 | 310.53 | -51.29 | 120.78 | 0.8483 | -657.8 | 999999 | |
| 0.80 | -8.00 | 0.75 | -8.00 | -21.27 | 310.23 | -51.59 | 120.61 | 0.8505 | -264.9 | 999999 | |
| 2.22 | -8.00 | 2.06 | -8.00 | -20.82 | 310.35 | -51.47 | 120.17 | 0.8479 | -668.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.00 | -21.01 | 310.10 | -51.72 | 120.27 | 0.8506 | -160.0 | -154.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
