SDO HMI 2014-09-17 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 116.97 | 36.78 | 184.45 | 7.71 | 289.57 | -72.25 | 84.23 | 0.9499 | -331.2 | -50.4 | |
|
previous
or next observation for the same group /

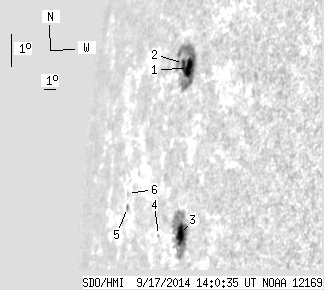

back to the solar disc SDO HMI 2014-09-17 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.67 | 61.24 | 15.26 | 97.90 | 10.01 | 289.25 | -72.57 | 81.78 | 0.9507 | -455.9 | -70.9 | |
| 2.49 | -1.00 | 4.03 | -1.00 | 10.09 | 288.67 | -73.15 | 81.65 | 0.9537 | 19.9 | 999999 | |
| 11.54 | 52.36 | 17.49 | 79.70 | 5.08 | 290.46 | -71.36 | 87.08 | 0.9465 | -368.0 | -37.4 | |
| 0.00 | 1.15 | 0.00 | 1.97 | 4.79 | 288.30 | -73.53 | 87.14 | 0.9581 | 299.0 | 304.4 | |
| 0.00 | 1.69 | 0.00 | 3.70 | 5.17 | 284.35 | -77.47 | 86.32 | 0.9752 | -203.0 | -58.0 | |
| 0.00 | 0.53 | 0.00 | 1.18 | 5.57 | 284.18 | -77.65 | 85.89 | 0.9757 | 41.0 | 61.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
