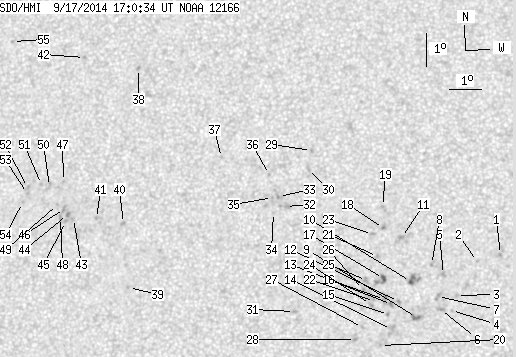

SDO HMI 2014-09-17 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.75 | 121.18 | 1.37 | 61.11 | 13.11 | 352.18 | -7.99 | 48.75 | 0.1745 | -327.3 | -390.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.66 | 13.04 | 358.53 | -1.64 | 15.17 | 0.1067 | -1032.0 | -831.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 12.83 | 357.82 | -2.34 | 21.97 | 0.1071 | -856.0 | -675.1 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 11.80 | 357.18 | -2.98 | 32.16 | 0.0962 | -1030.0 | -719.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.35 | 357.03 | -3.13 | 36.22 | 0.0911 | -742.0 | -506.6 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 12.43 | 356.78 | -3.39 | 32.10 | 0.1092 | -997.0 | -775.5 | |
| 0.00 | 3.55 | 0.00 | 1.77 | 11.37 | 356.70 | -3.47 | 38.86 | 0.0951 | -1070.0 | -839.9 | |
| 0.00 | 3.11 | 0.00 | 1.55 | 11.77 | 356.60 | -3.57 | 37.12 | 0.1014 | -970.0 | -822.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 12.73 | 356.40 | -3.77 | 33.35 | 0.1171 | -934.0 | -672.7 | |
| 0.00 | 5.15 | 0.00 | 2.56 | 11.13 | 355.96 | -4.21 | 46.00 | 0.1005 | -1207.0 | -967.2 | |
| 1.06 | 7.45 | 0.53 | 3.72 | 12.21 | 355.76 | -4.41 | 40.35 | 0.1166 | -1238.9 | -980.3 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 13.54 | 355.46 | -4.71 | 35.58 | 0.1378 | -1096.0 | -877.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 11.61 | 355.40 | -4.77 | 46.26 | 0.1132 | -1094.0 | -903.7 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 11.51 | 355.18 | -4.98 | 48.11 | 0.1149 | -1145.0 | -967.1 | |
| 0.00 | 6.21 | 0.00 | 3.09 | 10.76 | 355.20 | -4.97 | 53.40 | 0.1065 | -842.0 | -720.1 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 11.21 | 355.10 | -5.07 | 50.65 | 0.1126 | -898.0 | -840.4 | |
| 0.00 | 4.17 | 0.00 | 2.08 | 11.66 | 354.97 | -5.20 | 48.35 | 0.1194 | -922.0 | -862.8 | |
| 1.69 | 8.07 | 0.84 | 4.03 | 12.30 | 354.92 | -5.24 | 44.77 | 0.1274 | -1104.3 | -870.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.81 | 354.89 | -5.27 | 37.51 | 0.1473 | -1169.0 | -1003.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 14.48 | 354.85 | -5.32 | 35.08 | 0.1569 | -680.0 | -509.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.27 | 354.87 | -5.30 | 58.92 | 0.1067 | -929.0 | -663.2 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 12.96 | 354.72 | -5.44 | 42.30 | 0.1380 | -685.0 | -493.2 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 11.60 | 354.66 | -5.51 | 50.35 | 0.1227 | -411.0 | -597.0 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 13.62 | 354.55 | -5.61 | 40.03 | 0.1485 | -842.0 | -746.4 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 11.51 | 354.54 | -5.63 | 51.54 | 0.1234 | -833.0 | -666.3 | |
| 0.00 | 3.55 | 0.00 | 1.77 | 12.23 | 354.40 | -5.77 | 47.83 | 0.1332 | -751.0 | -575.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 11.96 | 354.31 | -5.86 | 49.83 | 0.1312 | -1073.0 | -874.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 10.81 | 354.30 | -5.86 | 57.36 | 0.1197 | -889.0 | -744.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 10.45 | 354.09 | -6.07 | 60.87 | 0.1197 | -904.0 | -731.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 16.15 | 352.57 | -7.60 | 38.92 | 0.2032 | -939.0 | -795.1 | |
| 0.00 | 3.02 | 0.00 | 1.52 | 15.60 | 352.49 | -7.68 | 41.02 | 0.1969 | -656.0 | -497.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 11.26 | 352.19 | -7.98 | 61.88 | 0.1550 | -943.0 | -718.5 | |
| 0.00 | 5.32 | 0.00 | 2.69 | 14.44 | 351.81 | -8.36 | 47.74 | 0.1911 | -945.0 | -774.2 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 14.74 | 351.58 | -8.59 | 47.32 | 0.1974 | -1008.0 | -806.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.25 | 351.44 | -8.73 | 49.69 | 0.1938 | -713.0 | -557.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.70 | 351.39 | -8.78 | 48.05 | 0.1994 | -848.0 | -690.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 15.40 | 351.27 | -8.90 | 45.86 | 0.2088 | -867.0 | -696.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 15.89 | 349.72 | -10.45 | 48.60 | 0.2335 | -657.0 | -490.0 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 18.55 | 346.88 | -13.29 | 47.38 | 0.2975 | 764.0 | 636.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 11.88 | 346.97 | -13.19 | 69.06 | 0.2402 | 943.0 | 769.9 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 13.81 | 346.71 | -13.45 | 62.20 | 0.2565 | 890.0 | 753.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 13.94 | 345.84 | -14.32 | 63.11 | 0.2704 | 901.0 | 749.0 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 18.83 | 345.08 | -15.09 | 50.04 | 0.3228 | 791.0 | 562.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 13.91 | 345.11 | -15.06 | 64.23 | 0.2813 | 809.0 | 638.8 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 14.03 | 344.91 | -15.26 | 64.12 | 0.2851 | 1177.0 | 951.3 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 13.82 | 344.86 | -15.31 | 64.88 | 0.2845 | 792.0 | 703.4 | |
| 0.00 | 2.48 | 0.00 | 1.28 | 14.21 | 344.80 | -15.37 | 63.69 | 0.2879 | 875.0 | 805.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 15.03 | 344.71 | -15.46 | 61.25 | 0.2949 | 870.0 | 668.2 | |
| 0.00 | 2.48 | 0.00 | 1.28 | 13.93 | 344.69 | -15.48 | 64.73 | 0.2877 | 956.0 | 712.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 14.32 | 344.56 | -15.60 | 63.64 | 0.2921 | 812.0 | 709.4 | |
| 0.00 | 3.64 | 0.00 | 1.89 | 14.86 | 344.27 | -15.90 | 62.37 | 0.3002 | 767.0 | 641.5 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 14.91 | 344.00 | -16.16 | 62.56 | 0.3044 | 758.0 | 574.9 | |
| 0.00 | 2.40 | 0.00 | 1.25 | 14.81 | 343.56 | -16.61 | 63.45 | 0.3103 | 815.0 | 628.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 14.63 | 343.57 | -16.60 | 63.98 | 0.3089 | 814.0 | 618.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 14.35 | 343.43 | -16.74 | 64.98 | 0.3093 | 811.0 | 551.3 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 19.25 | 342.65 | -17.52 | 52.91 | 0.3578 | 822.0 | 606.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
