SDO HMI 2014-09-17 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.63 | 0.00 | 10.00 | 8.66 | 336.76 | -22.30 | 84.35 | 0.3774 | -470.2 | -246.4 | |
|
previous
or next observation for the same group /

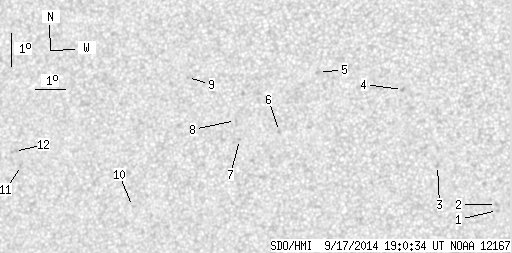

back to the solar disc SDO HMI 2014-09-17 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 6.97 | 344.80 | -14.26 | 89.91 | 0.2456 | -746.0 | -638.7 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 7.15 | 344.77 | -14.30 | 89.17 | 0.2462 | -884.0 | -593.2 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 8.27 | 342.87 | -16.20 | 85.01 | 0.2783 | -812.0 | -612.5 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 10.52 | 341.64 | -17.42 | 77.72 | 0.3026 | -972.0 | -744.7 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 10.92 | 338.89 | -20.17 | 77.82 | 0.3478 | -781.0 | -688.7 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 9.09 | 337.74 | -21.32 | 83.32 | 0.3631 | -791.0 | -598.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 8.79 | 336.44 | -22.62 | 84.31 | 0.3836 | -787.0 | -615.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 9.36 | 336.27 | -22.79 | 82.86 | 0.3869 | -732.0 | -516.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 10.58 | 334.58 | -24.49 | 80.18 | 0.4153 | -812.0 | -658.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 6.60 | 333.00 | -26.06 | 89.64 | 0.4383 | 665.0 | 567.8 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 7.62 | 329.11 | -29.95 | 87.18 | 0.4975 | 426.0 | 466.9 | |
| 0.00 | 2.93 | 0.00 | 1.67 | 8.02 | 328.83 | -30.23 | 86.36 | 0.5016 | 583.0 | 588.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
