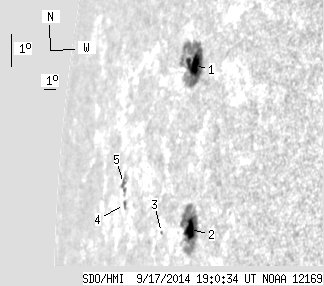

SDO HMI 2014-09-17 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.46 | 142.48 | 35.63 | 200.28 | 7.64 | 289.16 | -69.90 | 84.51 | 0.9362 | -496.4 | -107.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.02 | 71.59 | 13.78 | 99.61 | 10.03 | 289.31 | -69.75 | 81.97 | 0.9346 | -658.5 | -126.8 | |
| 12.77 | 57.31 | 16.91 | 75.95 | 5.17 | 290.58 | -68.49 | 87.29 | 0.9292 | -496.0 | -112.5 | |
| 0.00 | 0.98 | 0.00 | 1.45 | 4.80 | 288.19 | -70.87 | 87.42 | 0.9439 | 323.0 | 326.1 | |
| 0.98 | 3.02 | 1.79 | 5.52 | 5.18 | 284.22 | -74.84 | 86.60 | 0.9641 | 26.2 | 40.6 | |
| 1.69 | 9.58 | 3.15 | 17.75 | 5.78 | 283.89 | -75.17 | 85.94 | 0.9654 | -346.4 | -54.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
