SDO HMI 2014-09-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.84 | 116.03 | 1.42 | 58.49 | 13.08 | 351.49 | -7.02 | 42.02 | 0.1650 | -182.1 | -250.3 | |
|
previous
or next observation for the same group /

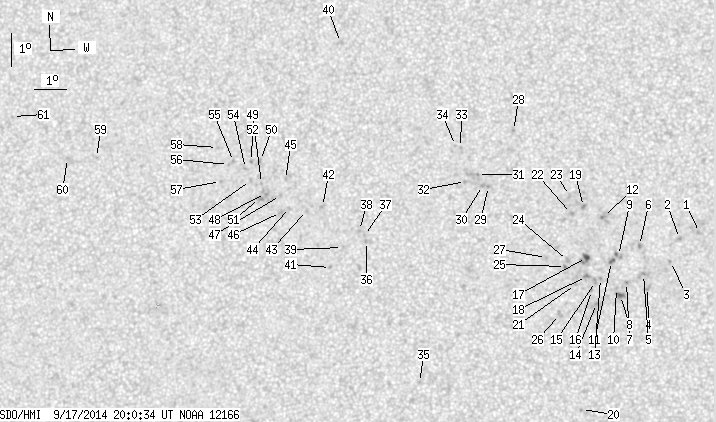

back to the solar disc SDO HMI 2014-09-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.10 | 13.05 | 358.48 | -0.03 | 0.32 | 0.1030 | -924.0 | -757.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 12.87 | 357.86 | -0.65 | 6.36 | 0.1005 | -898.0 | -781.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.18 | 357.58 | -0.93 | 10.27 | 0.0892 | -827.0 | -666.4 | |
| 0.00 | 3.28 | 0.00 | 1.63 | 11.39 | 356.88 | -1.63 | 20.76 | 0.0792 | -778.0 | -748.5 | |
| 0.00 | 5.77 | 0.00 | 2.87 | 11.78 | 356.75 | -1.76 | 20.45 | 0.0863 | -1122.0 | -815.8 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 12.66 | 356.62 | -1.89 | 18.53 | 0.1015 | -1079.0 | -900.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 11.54 | 356.23 | -2.28 | 27.04 | 0.0861 | -999.0 | -818.4 | |
| 0.98 | 4.17 | 0.49 | 2.07 | 11.15 | 356.05 | -2.46 | 31.22 | 0.0816 | -1181.6 | -928.2 | |
| 0.00 | 3.37 | 0.00 | 1.68 | 12.35 | 355.98 | -2.53 | 25.48 | 0.1007 | -829.0 | -870.5 | |
| 0.00 | 1.60 | 0.00 | 0.79 | 11.36 | 355.92 | -2.58 | 31.14 | 0.0859 | -961.0 | -719.5 | |
| 0.00 | 3.46 | 0.00 | 1.72 | 12.17 | 355.76 | -2.75 | 28.19 | 0.0996 | -1171.0 | -919.0 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 13.53 | 355.50 | -3.01 | 24.67 | 0.1227 | -1160.0 | -952.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 11.66 | 355.43 | -3.08 | 33.85 | 0.0949 | -1003.0 | -744.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 10.90 | 355.31 | -3.20 | 39.97 | 0.0856 | -1012.0 | -933.1 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 11.57 | 355.28 | -3.23 | 35.71 | 0.0951 | -1043.0 | -924.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 11.29 | 355.16 | -3.35 | 38.49 | 0.0926 | -1012.0 | -864.4 | |
| 1.86 | 6.65 | 0.93 | 3.32 | 12.29 | 354.99 | -3.52 | 33.82 | 0.1082 | -1188.4 | -925.5 | |
| 0.00 | 3.10 | 0.00 | 1.55 | 11.71 | 355.00 | -3.51 | 37.03 | 0.1000 | -1186.0 | -956.1 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 13.83 | 354.88 | -3.63 | 27.87 | 0.1322 | -1088.0 | -873.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 7.70 | 354.88 | -3.63 | 81.28 | 0.0637 | -868.0 | -671.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.47 | 354.66 | -3.85 | 41.13 | 0.1004 | -893.0 | -664.6 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 13.62 | 354.51 | -4.00 | 31.06 | 0.1321 | -952.0 | -807.0 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 14.16 | 354.44 | -4.07 | 29.42 | 0.1408 | -882.0 | -613.0 | |
| 0.00 | 2.66 | 0.00 | 1.33 | 12.19 | 354.41 | -4.10 | 38.50 | 0.1129 | -831.0 | -719.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 12.01 | 354.35 | -4.16 | 39.95 | 0.1111 | -997.0 | -819.2 | |
| 0.00 | 3.28 | 0.00 | 1.63 | 10.56 | 354.18 | -4.33 | 51.25 | 0.0956 | -786.0 | -673.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.28 | 353.76 | -4.75 | 42.14 | 0.1213 | -756.0 | -581.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 16.12 | 352.64 | -5.87 | 32.16 | 0.1854 | -963.0 | -780.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.41 | 351.90 | -6.61 | 41.29 | 0.1696 | -1075.0 | -938.7 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 14.44 | 351.72 | -6.79 | 41.97 | 0.1721 | -999.0 | -762.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 14.77 | 351.55 | -6.96 | 41.35 | 0.1782 | -927.0 | -775.2 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 14.55 | 351.18 | -7.33 | 43.64 | 0.1798 | -882.0 | -672.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 15.58 | 350.99 | -7.52 | 40.55 | 0.1949 | -858.0 | -572.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 15.64 | 350.83 | -7.68 | 40.93 | 0.1974 | -797.0 | -604.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.46 | 349.92 | -8.59 | 80.81 | 0.1504 | 832.0 | 578.4 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 12.68 | 348.14 | -10.37 | 60.82 | 0.2020 | 856.0 | 713.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.86 | 348.07 | -10.44 | 60.19 | 0.2045 | 936.0 | 825.3 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.01 | 347.91 | -10.60 | 59.92 | 0.2081 | 912.0 | 692.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.48 | 347.40 | -11.11 | 63.24 | 0.2117 | 497.0 | 474.1 | |
| 0.00 | 2.84 | 0.00 | 1.46 | 18.72 | 346.99 | -11.52 | 43.02 | 0.2784 | 806.0 | 717.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.87 | 347.05 | -11.46 | 66.54 | 0.2130 | 935.0 | 793.1 | |
| 0.00 | 2.22 | 0.00 | 1.13 | 13.71 | 346.71 | -11.80 | 59.62 | 0.2313 | 885.0 | 695.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 13.57 | 346.21 | -12.30 | 61.09 | 0.2376 | 855.0 | 739.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.65 | 345.67 | -12.84 | 61.77 | 0.2463 | 809.0 | 649.1 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 14.50 | 345.49 | -13.02 | 59.07 | 0.2554 | 872.0 | 694.7 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 13.49 | 345.39 | -13.12 | 62.82 | 0.2493 | 893.0 | 776.0 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 14.01 | 345.36 | -13.15 | 61.02 | 0.2535 | 796.0 | 668.3 | |
| 0.00 | 3.73 | 0.00 | 1.91 | 14.06 | 344.88 | -13.63 | 61.65 | 0.2609 | 1003.0 | 875.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 14.36 | 344.73 | -13.78 | 60.87 | 0.2653 | 838.0 | 617.1 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 15.05 | 344.66 | -13.85 | 58.68 | 0.2719 | 767.0 | 723.5 | |
| 0.00 | 3.10 | 0.00 | 1.59 | 13.90 | 344.70 | -13.81 | 62.49 | 0.2625 | 784.0 | 743.6 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 15.01 | 344.37 | -14.14 | 59.29 | 0.2757 | 828.0 | 625.7 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 14.44 | 344.37 | -14.14 | 61.17 | 0.2712 | 867.0 | 673.7 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 14.80 | 344.19 | -14.32 | 60.28 | 0.2766 | 921.0 | 732.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.00 | 343.79 | -14.72 | 60.27 | 0.2839 | 794.0 | 621.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 14.90 | 343.64 | -14.87 | 60.81 | 0.2854 | 873.0 | 709.7 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 14.38 | 343.41 | -15.10 | 62.80 | 0.2849 | 743.0 | 636.0 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.41 | 343.24 | -15.27 | 59.83 | 0.2949 | 685.0 | 531.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 14.97 | 339.32 | -19.18 | 65.84 | 0.3494 | 845.0 | 756.9 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 14.90 | 338.37 | -20.14 | 66.90 | 0.3633 | 797.0 | 636.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 16.10 | 336.40 | -22.11 | 65.60 | 0.3988 | 609.0 | 460.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
