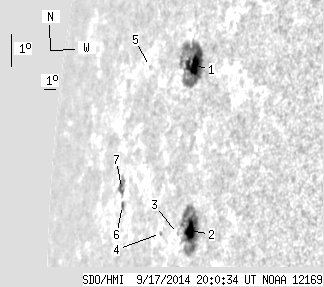

SDO HMI 2014-09-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.34 | 151.07 | 36.64 | 207.06 | 7.64 | 289.20 | -69.31 | 84.56 | 0.9326 | -453.6 | -115.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.47 | 74.96 | 14.03 | 101.79 | 10.07 | 289.35 | -69.16 | 81.97 | 0.9309 | -692.2 | -123.9 | |
| 11.71 | 60.59 | 15.14 | 78.37 | 5.18 | 290.59 | -67.92 | 87.34 | 0.9255 | -513.8 | -140.9 | |
| 0.00 | 0.89 | 0.00 | 1.20 | 4.98 | 289.64 | -68.87 | 87.46 | 0.9317 | 105.0 | 92.5 | |
| 0.00 | 1.15 | 0.00 | 1.66 | 4.81 | 288.18 | -70.33 | 87.48 | 0.9407 | 470.0 | 414.0 | |
| 0.00 | 0.53 | 0.00 | 0.87 | 9.56 | 285.28 | -73.23 | 82.20 | 0.9543 | 202.0 | 212.0 | |
| 1.06 | 3.10 | 1.88 | 5.49 | 5.19 | 284.24 | -74.27 | 86.65 | 0.9615 | 27.2 | 33.2 | |
| 3.10 | 9.85 | 5.59 | 17.68 | 5.68 | 283.96 | -74.55 | 86.12 | 0.9626 | -236.1 | -85.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
